USB 3.1 Type C Socket, 24 Pin, 10 Gbps, PCB Mount, Edge Mount, R/A
Introduction:
Our high-performance USB 3.1 Type-C Socket, engineered to meet the demands of next-generation data transfer and power delivery. This 24-pin female receptacle features a right-angle (R/A) orientation with an edge-mount PCB mounting style, specifically designed for devices where space is at a premium. By mounting directly on the edge of the circuit board, this connector facilitates a seamless interface for external ports while maximizing internal board real estate. Supporting USB 3.1 Gen 2 standards, it delivers exceptional data transfer speeds of up to 10 Gbps, ensuring rapid synchronization and efficient handling of large files.
Built with longevity and electrical reliability in mind, this Type-C socket utilizes premium materials. The outer shell is constructed from stainless steel with a nickel plating, offering robust structural support and resistance to wear and corrosion. The contacts are made from high-grade copper alloy with a gold-plated finish, ensuring stable signal integrity and minimal insertion loss. With a versatile current rating supporting both 1.25A and 3A at 20V, it is capable of handling both standard signaling and enhanced power requirements. Furthermore, it is UL94V-0 certified for flame retardancy and operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for a wide array of commercial and industrial applications.
Key Features
- Edge-Mount Design: Right-angle orientation designed for PCB edge mounting, ideal for space-constrained and low-profile applications.
- Ultra-Fast Data Sync: USB 3.1 Gen 2 compliant, supporting data transfer rates up to 10 Gbps.
- Enhanced Power Delivery: Supports versatile power ratings (1.25A / 3A at 20V) for diverse power needs.
- Premium Contact Finish: Gold-plated copper alloy contacts ensure superior conductivity and durable mating cycles.
- Rugged Enclosure: Stainless steel shell with nickel plating provides excellent protection against physical wear and corrosion.
- High-Reliability Rating: Compliant with UL94V-0 standards and functional across an extended temperature range (-40°C to 85°C).

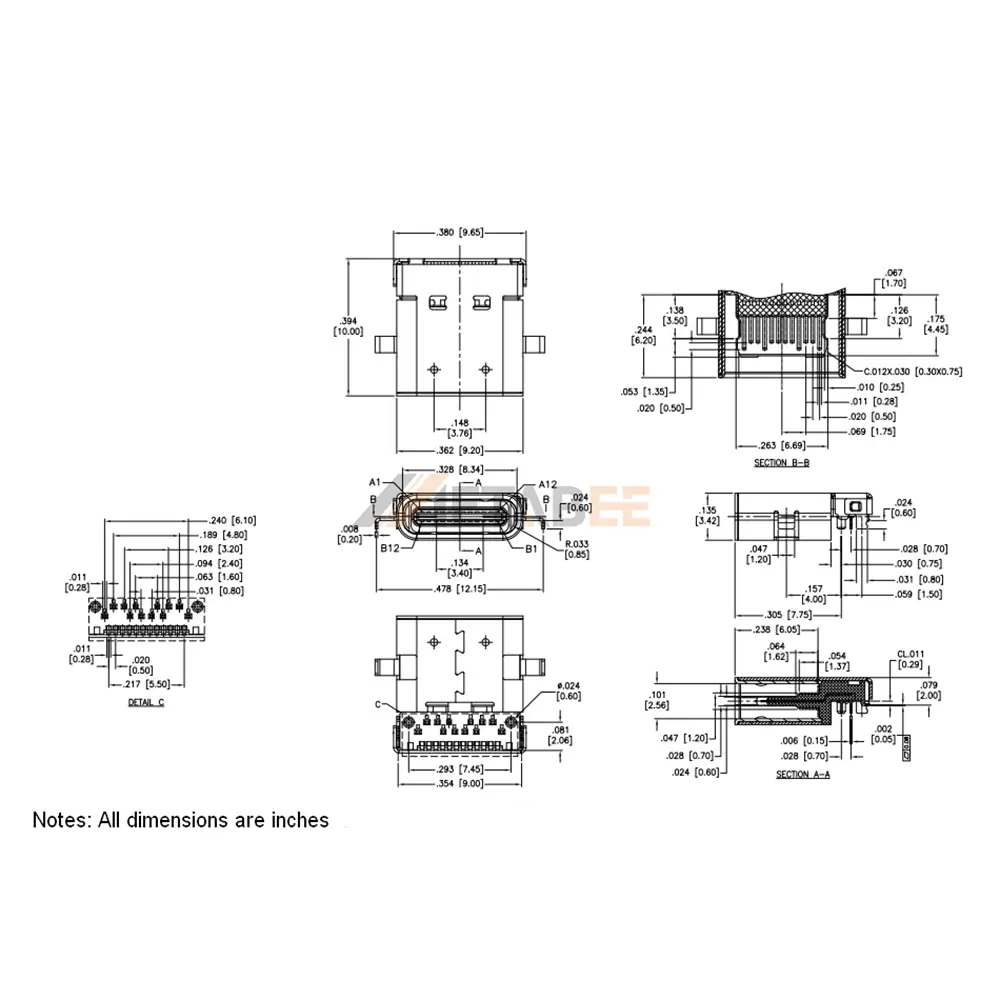

Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH2.0 | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Type C Socket, 24 Pin, 10 GbpsA:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
