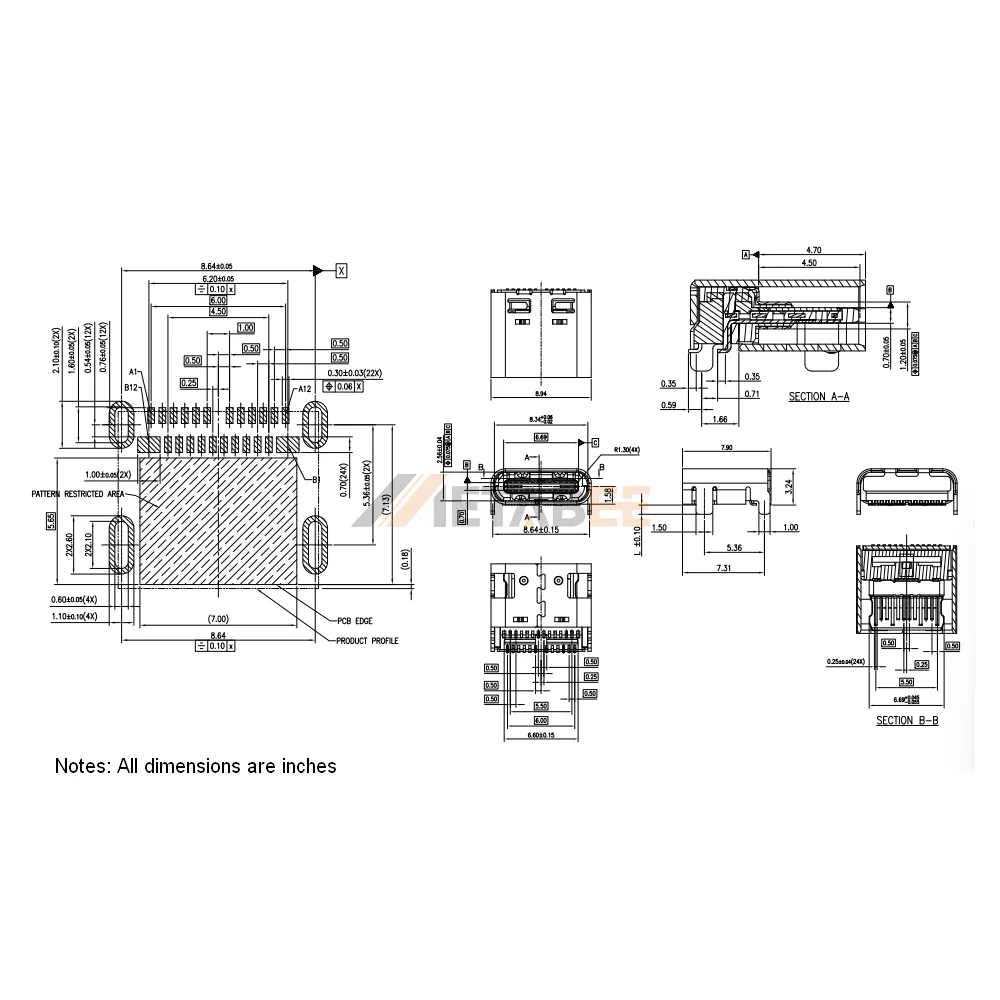

USB 3.1 Type C Receptacle, 24 Pin, 10 Gbps, PCB Surface Mount, Right Angle
Introduction:
This high-performance USB 3.1 Type-C receptacle is engineered for high-speed data transmission and reliable power delivery in a compact form factor. Featuring a 24-pin configuration, it supports data transfer rates of up to 10 Gbps, making it ideal for modern high-bandwidth applications. The right-angle mounting orientation and PCB surface mount design allow for seamless integration into low-profile electronic assemblies where vertical space is limited.
Built for longevity, the connector features a rugged Stainless Steel shell with nickel plating for superior corrosion resistance. The internal contacts are crafted from high-grade copper alloy with gold plating, ensuring excellent signal integrity and a stable connection. Designed to meet industrial standards, it supports a 5A current rating and operates reliably within a temperature range of -40°C to 85°C, providing a durable solution for both consumer and industrial electronics.
Key Features
- Ultra-Fast Data: Supports USB 3.1 Gen 2 speeds up to 10 Gbps.
- High Power Delivery: Rated for 5A/5V to support fast charging.
- Space-Saving Design: Right-angle, PCB surface mount for low-profile layouts.
- Premium Build: Gold-plated copper alloy contacts for maximum conductivity.
- Rugged Durability: Nickel-plated stainless steel shell for long-term protection.
- Certified Safety: UL94V-0 flame retardant rating for enhanced security.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-CS10A-SMT-BK-30-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 5V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Type C Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
