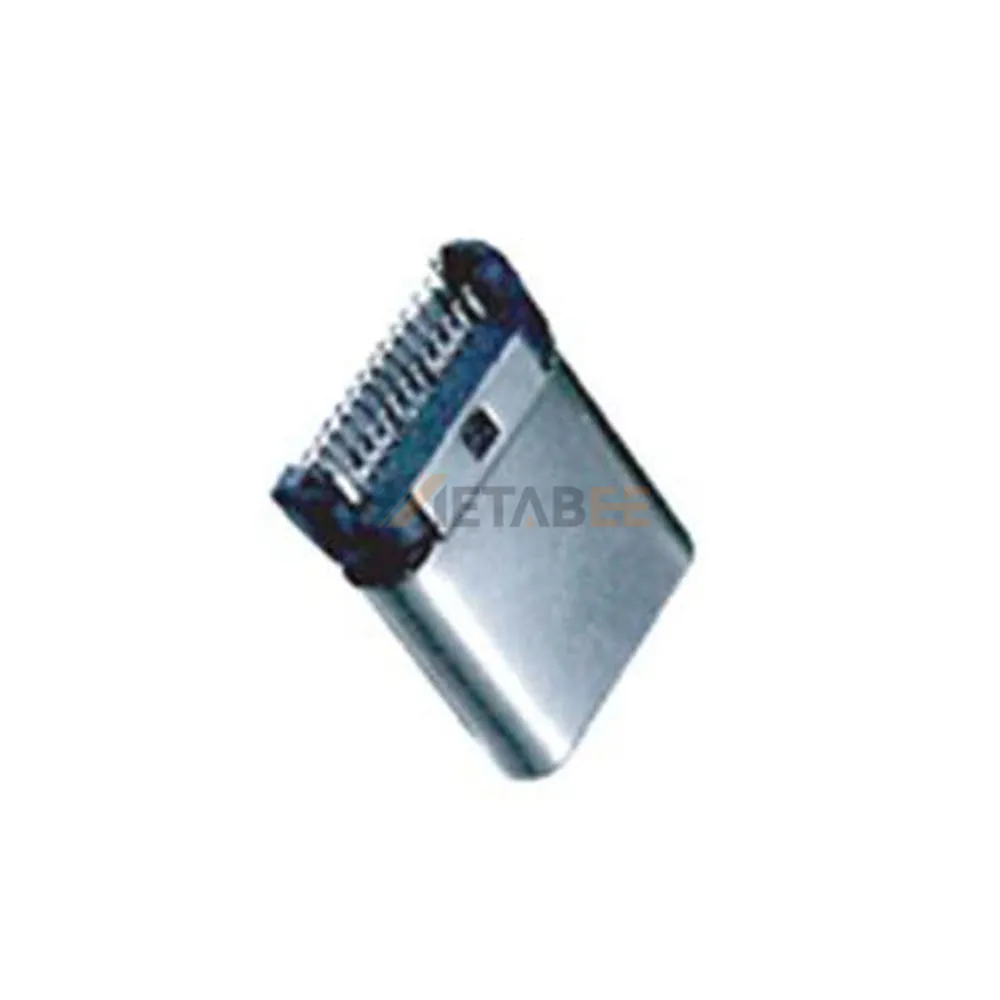

USB 3.1 Type C Receptacle, 12 Pin, 10 Gbps, Right Angle
Introduction:
The high-performance USB 3.1 Type-C receptacle is a meticulously engineered 12-pin, single-port connector designed for modern electronic applications. With its right-angle mounting orientation, this receptacle is perfectly suited for space-constrained PCB designs, offering flexible integration while maintaining a compact footprint. It boasts impressive data transfer capabilities, supporting speeds of up to 10 Gbps, ensuring rapid and efficient communication for all your high-bandwidth requirements.
Built for exceptional durability and reliability, this Type C receptacle features a robust stainless steel housing, enhanced with nickel plating for superior corrosion resistance and a long-lasting, aesthetic finish. The contacts are precisely crafted from high-quality copper alloy and generously gold-plated, guaranteeing optimal conductivity, stable signal integrity, and an extended operational lifespan. Electrically, it handles a rated current of 3A at 20V, making it suitable for both data and power delivery. Adhering to strict safety standards, it carries a UL94V-0 flammability rating, and its broad operating temperature range of -40°C to 85°C ensures steadfast performance in diverse and challenging environmental conditions.
Key Features
- USB 3.1 Type C Standard: Universal, reversible interface for cutting-edge connectivity.
- High-Speed 10 Gbps: Enables ultra-fast data transfer for demanding applications.
- Right-Angle Design: Optimizes space and offers versatile PCB integration.
- Durable Stainless Steel Housing: Nickel-plated for enhanced corrosion resistance.
- Gold-Plated Copper Alloy Contacts: Ensures superior conductivity and signal reliability.
- Wide Temperature Range: Performs robustly from -40°C to 85°C.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 12 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Type C Receptacle, 12 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
