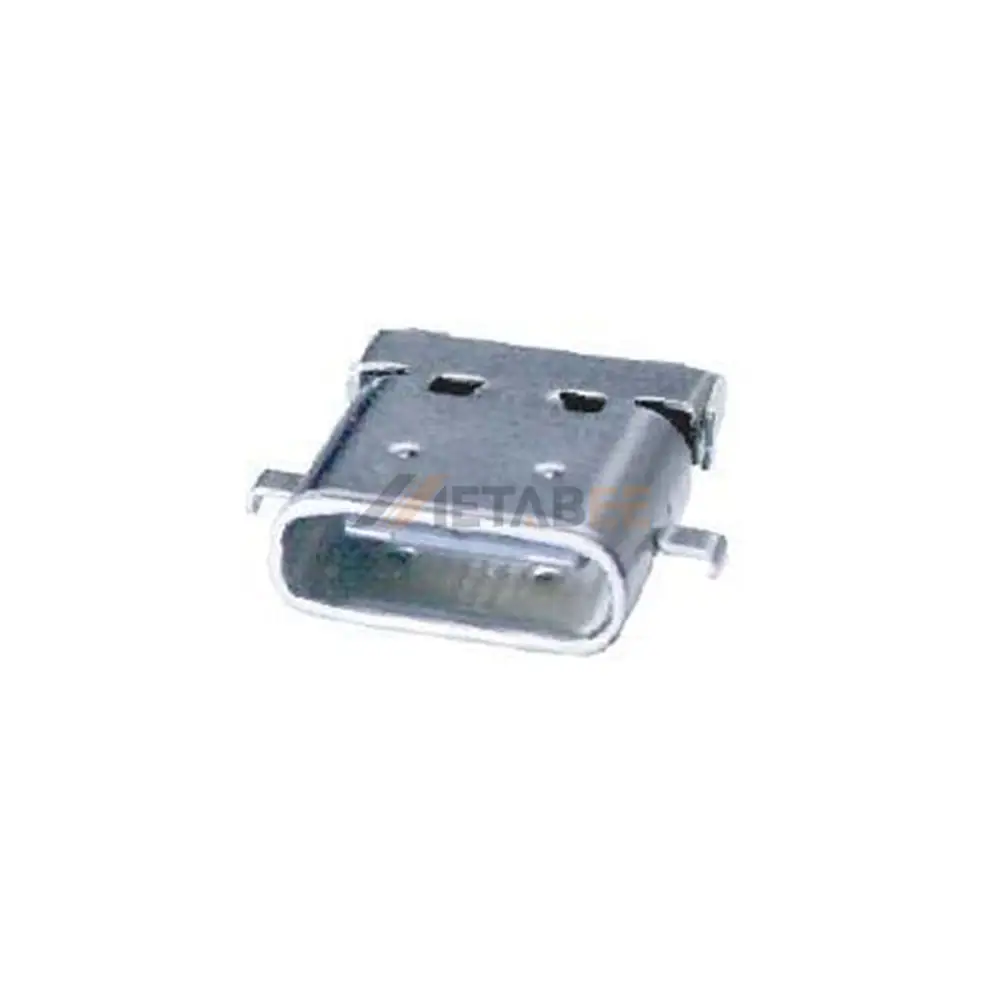

USB 3.1 Type-C Jack, 24 Pin, 10 Gbps, PCB Mount, Edge Mount, R/A
Introduction:
Elevate your device’s connectivity with our high-performance USB 3.1 Type-C Jack. This 24-pin, single-port connector is engineered to deliver lightning-fast data transfer speeds of up to 10 Gbps, ensuring seamless and efficient communication for the most demanding applications. Its innovative right-angle, PCB edge mount design allows for sleek, space-saving integration onto printed circuit boards, making it an ideal choice for compact electronic products where board real estate and aesthetic appeal are critical.
Durability and optimal electrical performance are at the core of this connector’s design. It features a robust stainless steel housing with a nickel-plated finish, providing excellent corrosion resistance and effective electromagnetic interference (EMI) shielding. The crucial contacts are precisely manufactured from high-quality copper alloy and generously gold-plated, guaranteeing superior signal integrity, minimal resistance, and an extended operational lifespan. Supporting rated currents of 1.25A and 3A, this jack is versatile for various power delivery needs. With a UL94V-0 flammability rating and a wide operating temperature range from -40°C to 85°C, it’s built for reliable operation in diverse and challenging environments.
Key Features
- High-Speed Data Transfer: Supports USB 3.1 with speeds up to 10 Gbps.
- Versatile Type-C Female Interface: 24-pin, single-port for modern, reversible connections.
- Space-Optimized Mounting: Right-angle, PCB edge mount for efficient board integration.
- Durable Construction: Stainless steel housing with nickel plating for protection.
- Superior Conductivity: Gold-plated copper alloy contacts ensure signal integrity.
- Robust Performance: UL94V-0 flammability rating and -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH2.0-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
