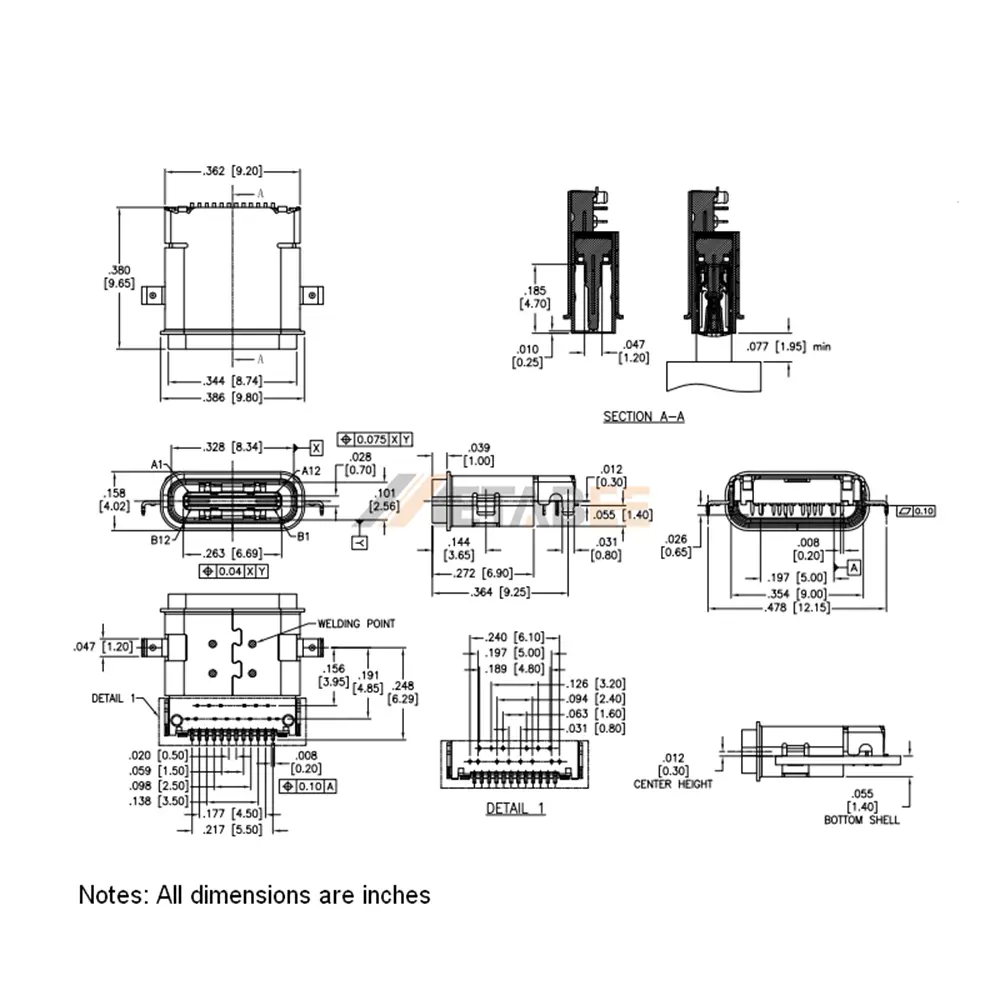

USB 3.1 Type C Female Connector, 24 Pin, 10 Gbps, SMT, R/A, Waterproof
Introduction:
The USB 3.1 Type-C Female Connector is designed to deliver high-speed data transmission and reliable connectivity for compact electronic devices. Featuring a 24-pin single-port interface, this connector supports data rates up to 10 Gbps, making it suitable for applications such as consumer electronics, industrial equipment, and communication devices. The right-angle SMT configuration allows efficient PCB space utilization while ensuring stable mechanical retention on the board.
Engineered with a stainless steel shell and nickel plating, the connector provides excellent durability and corrosion resistance. Copper alloy contacts with gold plating ensure superior conductivity and stable signal performance over extended mating cycles. With rated current options of 0.25A, 1.25A, and 1.5A, along with UL94V-0 flame-retardant materials and a wide operating temperature range from -40°C to +85°C, this waterproof USB-C connector is built to maintain reliable performance even in harsh environments.
Key Features
- USB 3.1 Type-C female connector with 24-pin interface
- High-speed data transfer up to 10 Gbps
- Right-angle SMT PCB mount for compact designs
- Waterproof structure for enhanced environmental protection
- Gold-plated copper alloy contacts for reliable signal transmission
- UL94V-0 rated, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH-WP-BK-CS3-HF-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT, | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 1.5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Type C Female Connector, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
