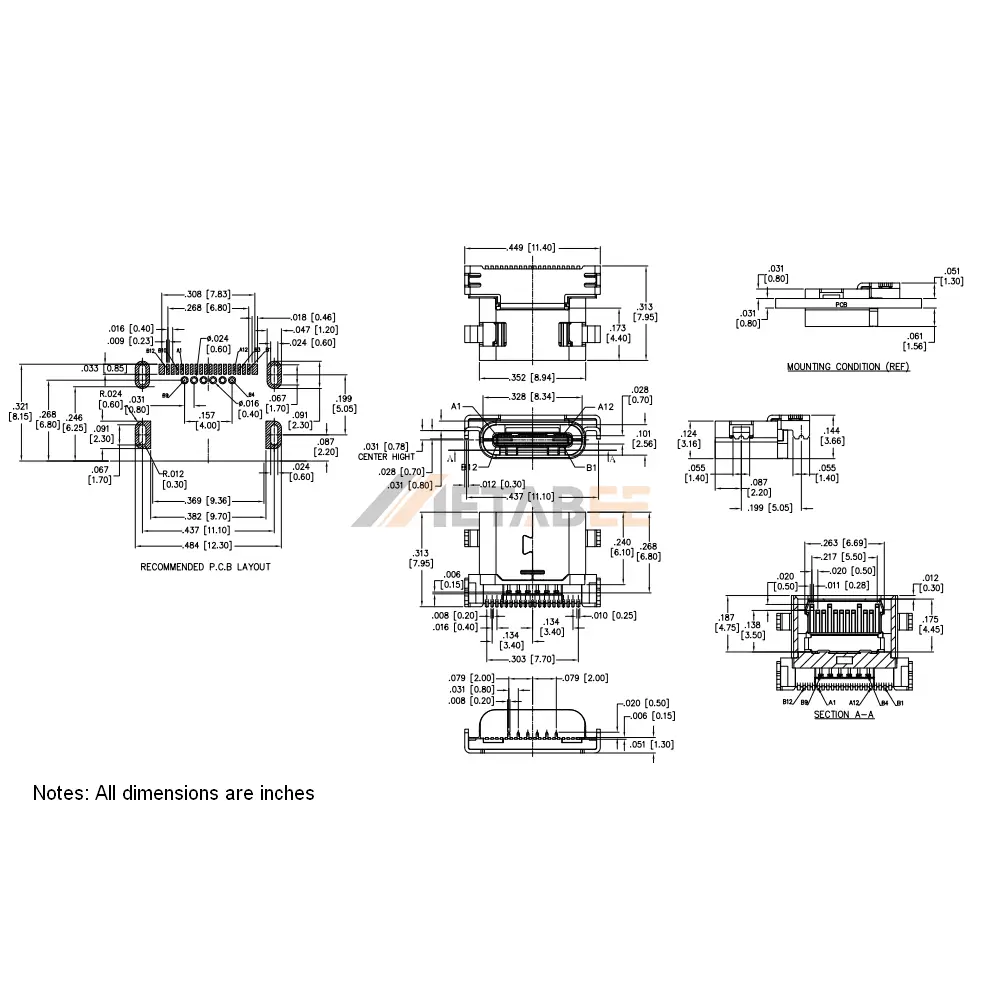

USB 3.1 Type C Female Connector, 24 Pin, 10 Gbps, PCB Edge Mount, R/A
Introduction:
Our advanced USB 3.1 Type C Female Connector is engineered to support high-speed data transfer up to 10 Gbps, making it an essential component for next-generation electronic devices. This 24-pin, single-port connector offers the reversible and robust connectivity synonymous with the Type-C standard. Its right-angle, PCB edge mount design is optimized for space-efficient integration, allowing for sleek and compact product designs while providing a secure and stable connection to your circuit board.
Constructed for durability and superior electrical performance, this connector features a premium stainless steel housing, nickel-plated for enhanced corrosion resistance and effective electromagnetic interference (EMI) shielding. The contacts are precision-machined from high-quality copper alloy and generously gold-plated, ensuring excellent signal integrity and extended operational life. Notably, this connector is rated for 20V, alongside versatile current ratings of 0.25A, 1.25A, and 5A, making it suitable for applications requiring higher power delivery. With a UL94V-0 flammability rating and a wide operating temperature range from -40°C to 85°C, it’s built to perform reliably in demanding environments.
Key Features
- High-Speed Data Transfer: Supports USB 3.1 with speeds up to 10 Gbps.
- Robust Type-C Female Interface: 24-pin, single-port for versatile connections.
- Space-Optimized Mounting: Right-angle, PCB edge mount for compact designs.
- Enhanced Power Delivery: Rated for 20V to support demanding applications.
- Premium Construction: Stainless steel housing with nickel plating, gold-plated copper alloy contacts.
- Reliable Performance: UL94V-0 flammability and -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH-BK-CS2-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Type C Female Connector, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
