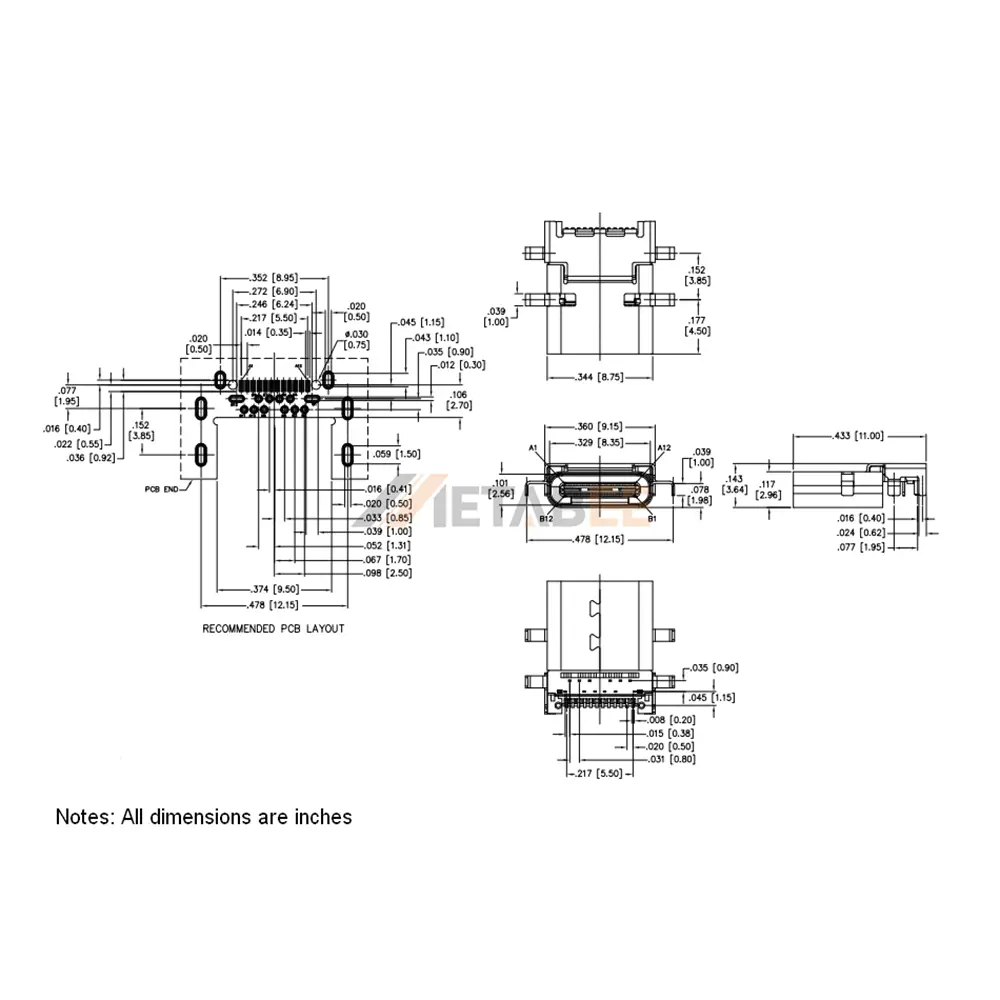

USB 3.1 Type C Connector, Receptacle, 24 Pin, 10 Gbps, PCB Edge Mount, R/A
Introduction:
Unlock superior data transmission and power delivery with this high-performance USB 3.1 Type-C receptacle connector. Designed for next-generation electronic applications, it supports blazing-fast data transfer speeds of up to 10 Gbps, ensuring efficient and reliable connectivity. This 24-pin, single-port connector features a right-angle, PCB edge mount design, making it an ideal choice for space-constrained and aesthetically driven designs where a flush and secure connection to the board edge is desired.
Engineered for exceptional durability and electrical integrity, this connector is constructed with a robust stainless steel housing, meticulously nickel-plated for enhanced corrosion resistance and EMI shielding. The critical contacts are forged from high-quality copper alloy and generously gold-plated, guaranteeing optimal signal conductivity, minimal impedance, and a prolonged operational lifespan across numerous mating cycles. With a reliable 5V rated voltage and versatile current ratings (0.25A, 1.25A, 5A), it caters to diverse power requirements. Furthermore, its UL94V-0 flammability rating and wide operating temperature range of -40°C to 85°C underscore its suitability for demanding operational environments.
Key Features
- Ultra-High Speed: Delivers USB 3.1 performance with data rates up to 10 Gbps.
- Versatile Type-C Receptacle: 24-pin interface for modern, reversible connections.
- Space-Saving Design: Right-angle, PCB edge mount for slim profiles.
- Premium Durability: Stainless steel housing with nickel plating for robust protection.
- Superior Conductivity: Gold-plated phosphor bronze contacts ensure signal integrity.
- Reliable Performance: UL94V-0 flammability rating and -40°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH-BK-CS1A | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Type C Connector, Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
