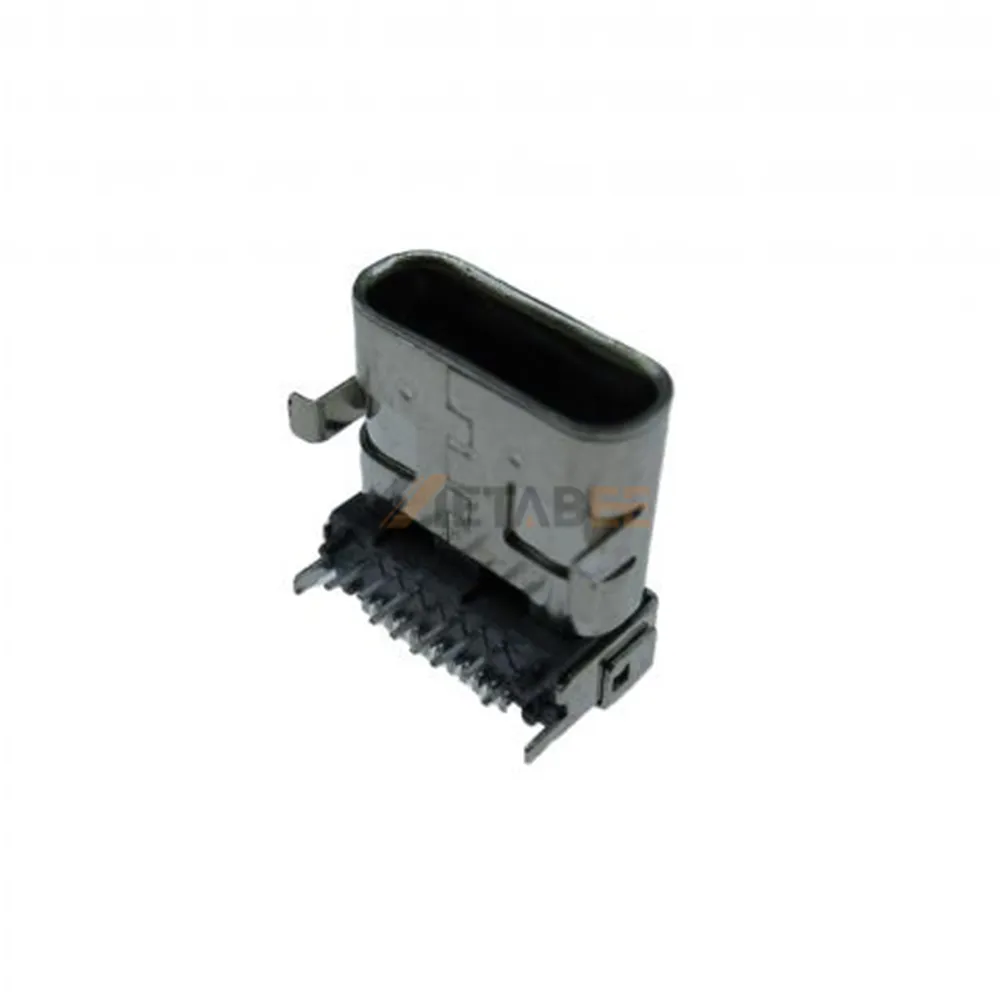

USB 3.1 Gen2 Type C Connector, Receptacle, 24 Pin, 10 Gbps, PCB Mount, Through Hole, R/A
Introduction:
Discover the advanced USB 3.1 Gen2 Type C receptacle, a high-performance 24-pin connector meticulously engineered for next-generation electronic applications. This single-port receptacle features a right-angle, PCB through-hole mounting design, providing unparalleled stability and optimizing space on your circuit boards. Capable of delivering blazing-fast data transfer speeds up to 10 Gbps, it ensures seamless and efficient communication for the most demanding high-bandwidth requirements. This connector is an ideal solution for devices needing both rapid data exchange and robust physical integration.
Built for exceptional durability and reliable performance, this Type C receptacle boasts a robust stainless steel housing, meticulously nickel-plated for superior corrosion resistance and a professional, long-lasting finish. The internal contacts are precisely crafted from high-quality copper alloy and generously gold-plated, ensuring optimal conductivity, stable signal integrity, and an extended operational lifespan. With versatile rated currents of 0.25A, 1.25A, and 5A, it accommodates a broad range of power delivery needs. Adhering to stringent safety standards, it carries a UL94V-0 flammability rating, and its broad operating temperature range of -40°C to 85°C guarantees steadfast performance in diverse and challenging environmental conditions.
Key Features
- USB 3.1 Gen2 Type C: Universal 24-pin interface for high-speed, reversible connectivity.
- Blazing 10 Gbps Data: Ensures ultra-fast data transfer for demanding applications.
- Right-Angle Through-Hole Mount: Provides robust, space-efficient PCB integration.
- Durable Stainless Steel Housing: Nickel-plated for superior corrosion resistance and longevity.
- Premium Gold-Plated Contacts: Copper alloy contacts ensure optimal conductivity and signal stability.
- Wide Power Compatibility: Supports rated currents of 0.25A, 1.25A, and 5A for versatile use.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-CS1E-BK-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Gen2 Type C Connector, Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
