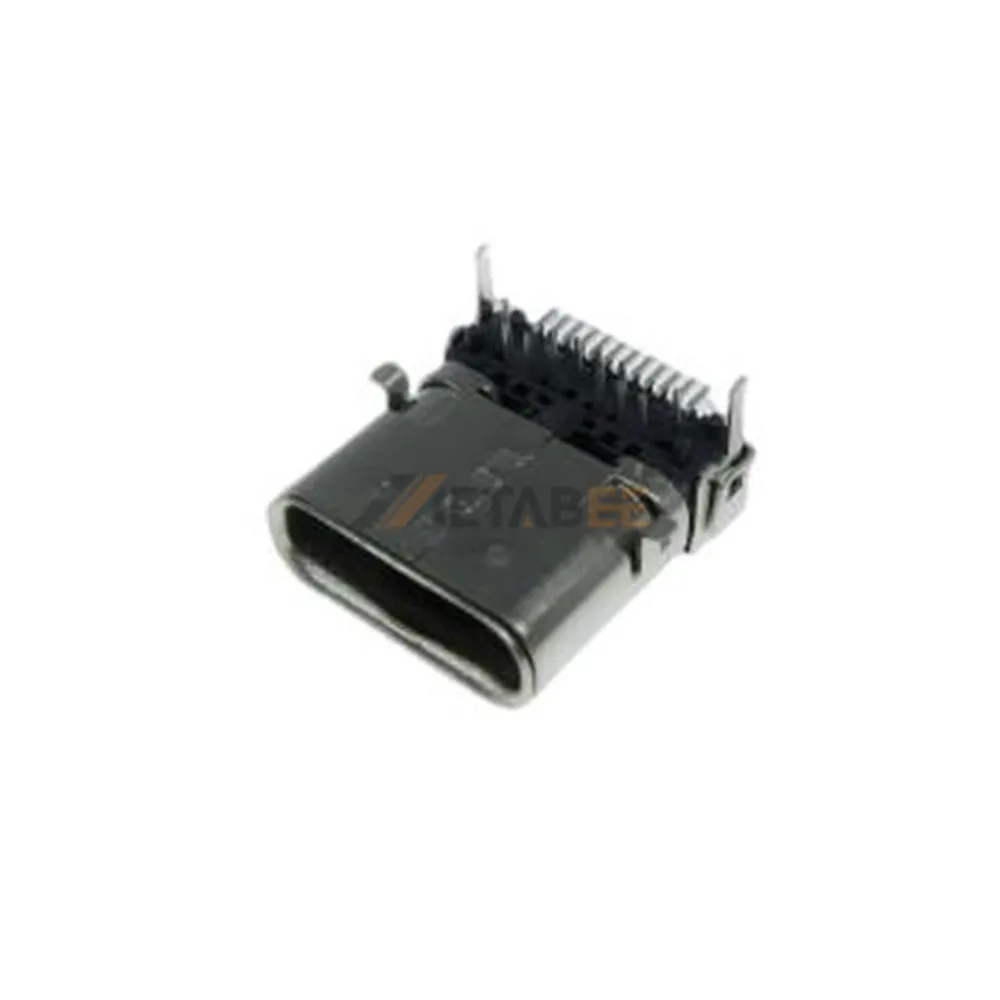

USB 3.1 Gen2 Connector, Receptacle, 24 Pin, 10 Gbps, PCB Through Hole, R/A
Introduction:
The USB 3.1 Gen2 connector is a high-performance Type-C interface designed for next-generation data and power applications. Featuring a full 24-pin configuration, this single-port receptacle supports data transfer speeds up to 10 Gbps, ensuring fast and stable signal transmission for industrial control systems, consumer electronics, and communication equipment. The right-angle PCB through-hole mounting structure enhances mechanical retention and provides reliable board-level stability in horizontal layout designs.
Manufactured with a stainless steel shell and nickel-plated housing, the connector offers exceptional durability and corrosion resistance. The copper alloy contacts with gold plating ensure superior conductivity, low contact resistance, and long mating life. Supporting multiple current ratings of 0.25A, 1.25A, and up to 5A, this connector adapts to various power delivery requirements. With a UL94V-0 flame-retardant rating and an operating temperature range of -40°C to +85°C, it guarantees consistent performance in demanding environments.
Key Features
- USB 3.1 Gen2 Type-C receptacle, 24-pin interface
- High-speed data transmission up to 10 Gbps
- Right-angle PCB through-hole mounting for enhanced retention
- Current ratings: 0.25A / 1.25A / 5A
- Stainless steel shell with nickel plating for durability
- Gold-plated copper alloy contacts, UL94V-0, -40°C to +85°C operating range
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-CS1D-BK-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Gen2 Connector, Receptacle, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
