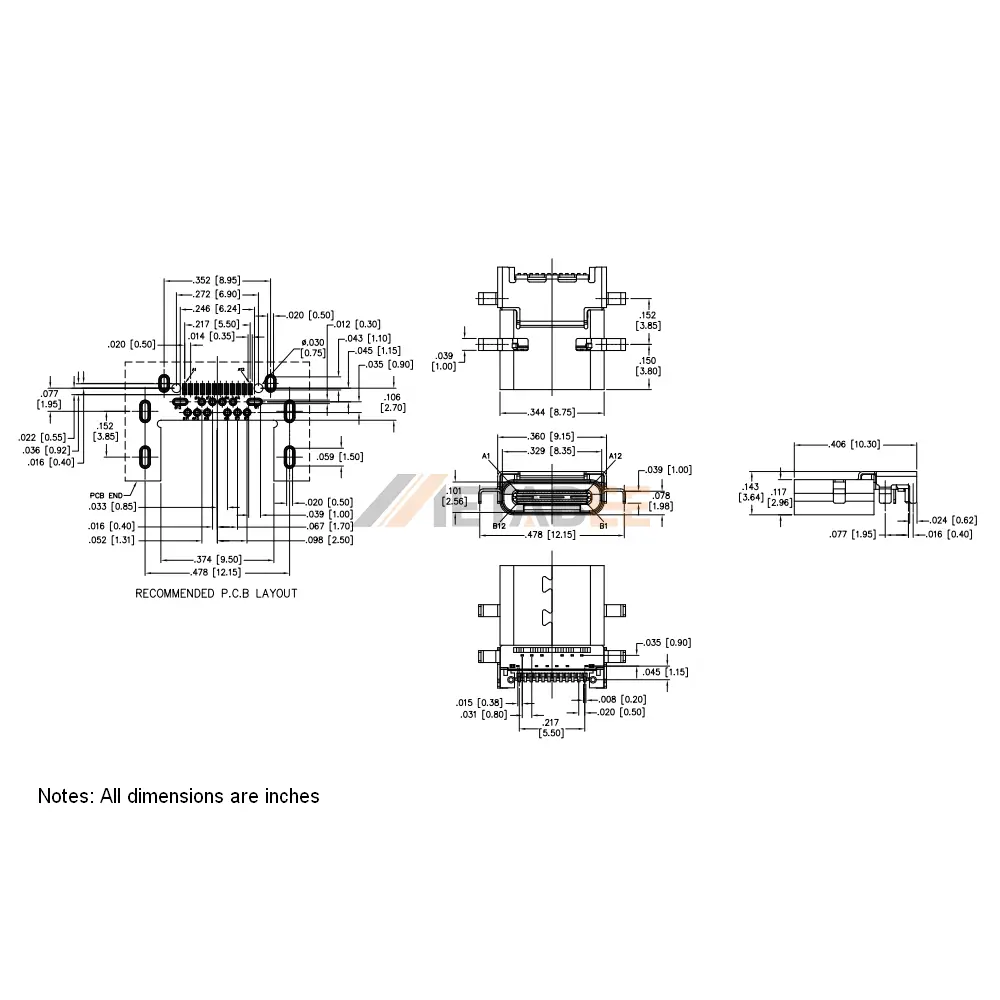

USB 3.1 Female Connector, Type C, 24 Pin, 10 Gbps, PCB Edge Mount, R/A
Introduction:
Experience cutting-edge connectivity with this high-performance USB 3.1 Female Type-C connector, engineered for data transfer speeds up to 10 Gbps. Ideal for next-generation devices, this 24-pin, single-port connector provides a reversible and robust interface. Its right-angle, PCB edge mount design allows for space-efficient integration onto printed circuit boards, making it a perfect fit for compact and sleek electronic products where design flexibility and high performance are paramount.
Built for reliability and durability, this connector features a resilient stainless steel housing with nickel plating, offering superior protection and electromagnetic shielding. The contacts are meticulously crafted from high-grade copper alloy and finished with gold plating, ensuring optimal signal integrity, minimal resistance, and extended mating cycle life. Designed to operate across a wide temperature range of -40°C to 85°C and boasting a UL94V-0 flammability rating, this connector is prepared for challenging industrial and commercial environments.
Key Features
- Blazing-Fast Data Transfer: Supports USB 3.1 with speeds up to 10 Gbps.
- Modern Type-C Interface: 24-pin Female connector for universal compatibility.
- Space-Optimized Mounting: Right-angle, PCB edge mount for efficient board design.
- Premium Durability: Stainless steel housing with nickel plating for longevity.
- Exceptional Conductivity: Gold-plated phosphor bronzosphor Bronze contacts ensure signal integrity.
- Rugged Performance: Operates from -40°C to 85°C with a UL94V-0 flammability rating.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH-BK-CS1 | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Female Connector, Type C, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
