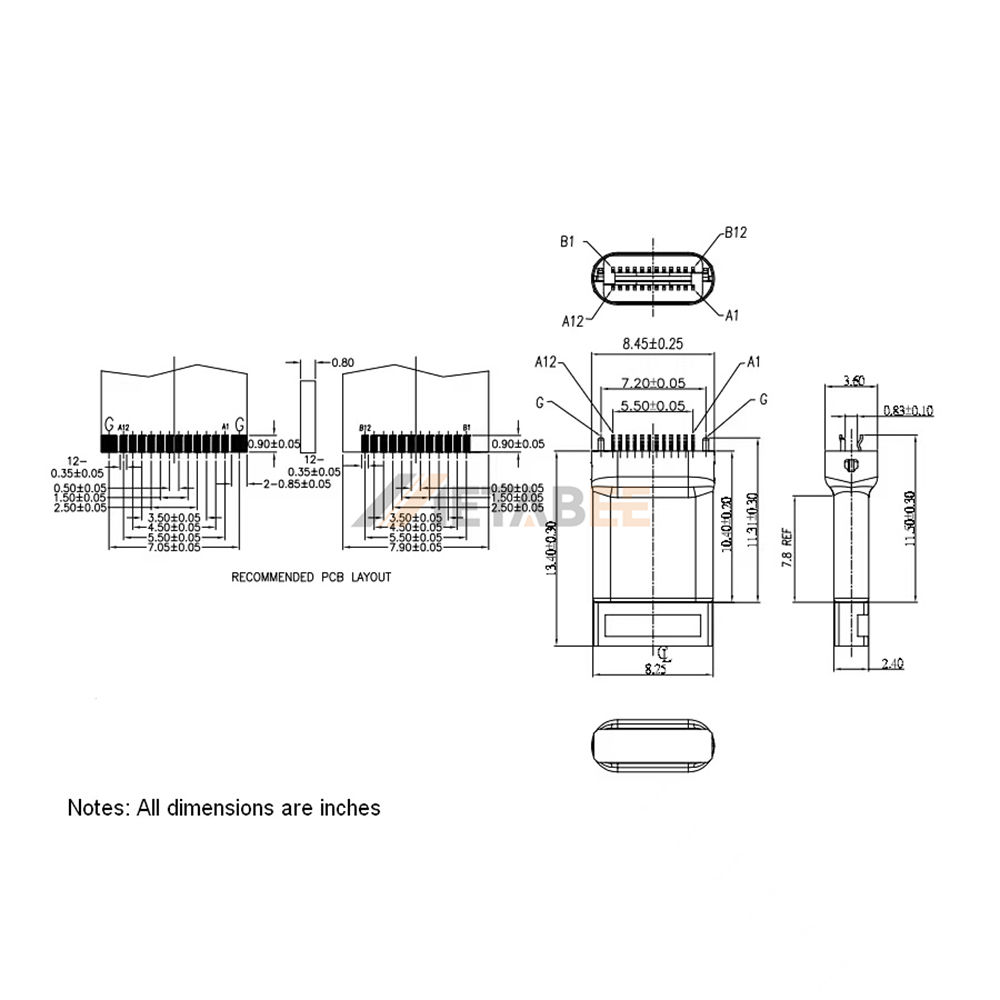

USB 3.1 Connector, Type C Plug, 12 Pin, 10 Gbps, Vertical
Introduction:
This USB 3.1 Type-C plug is engineered for high-performance data transmission and robust durability in modern electronic applications. Featuring a 12-pin vertical orientation, it provides a space-saving footprint ideal for compact PCB designs. With a transfer rate of 10 Gbps, this connector is fully optimized for high-speed synchronization and efficient power delivery, supporting a rated current of 3A.
Constructed with premium materials, the connector features a stainless steel shell with nickel plating for superior corrosion resistance. The internal contacts are made from high-conductivity copper alloy with gold plating to ensure stable signal integrity and long-term reliability. Designed to withstand harsh environments, it operates effectively between -40°C and 85°C and meets the UL94V-0 flame retardancy standard for maximum safety.
Key Features
- Ultra-Fast Data: USB 3.1 standard supporting up to 10 Gbps transfer speeds.
- Vertical Design: 12-pin vertical plug configuration for efficient, upright PCB mounting.
- High Power Support: Supports a 3A rated current for fast charging capabilities.
- Premium Build: Stainless steel shell with nickel plating for enhanced mechanical strength.
- Superior Conductivity: Gold-plated copper alloy contacts prevent signal loss and oxidation.
- Industrial Grade: UL94V-0 fire-rated with a wide operating temperature range (-40°C to 85°C).
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-PLUG-A-BK-PP-T/R | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 12 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.1 Connector, Type C Plug, 12 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
