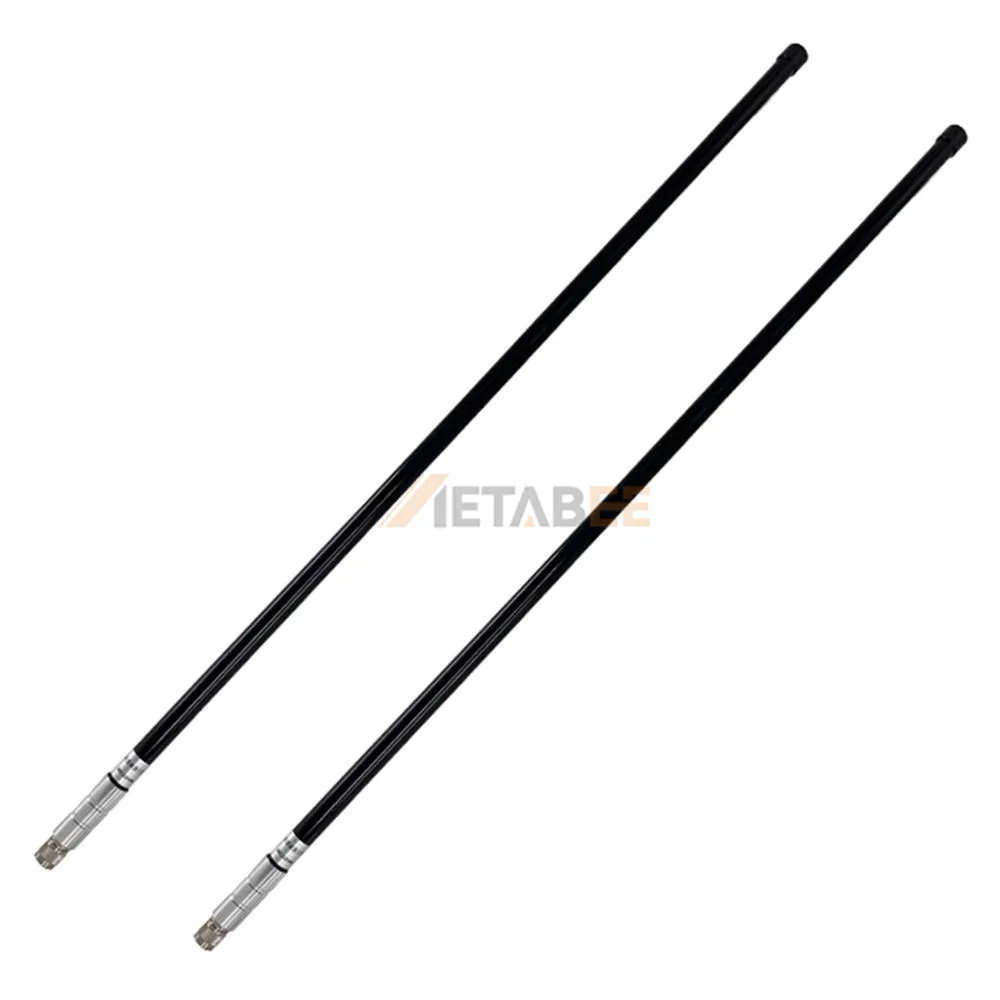

Ultra-Wideband 686-2700MHz 3dBi Fiberglass Antenna for Drone, N Male, IP66
Introduction:
Deploy the Ultra-Wideband 686-2700MHz 3dBi Fiberglass Antenna to ensure consistent and reliable wireless communication for diverse drone applications. Designed for a broad frequency spectrum, this omni-directional antenna delivers a stable 3dBi gain, providing expansive and uniform signal coverage essential for drone command, control, and data transmission. Its vertical polarization and optimized VSWR of ≤1.92 guarantee efficient power transfer and minimal signal loss, thereby enhancing the overall performance and reliability of critical aerial links across multiple wireless standards.
Constructed with a robust Fiberglass radome, this antenna achieves an impressive IP66 rating, offering superior protection against high-pressure water jets and total dust ingress, making it exceptionally resilient in extreme outdoor environments. It is engineered to perform without degradation across a wide operating temperature range from -40°C to 85°C and can withstand formidable wind speeds up to 60 m/s. Featuring a 50 Ohm impedance, a maximum input power of 50W, and integrated DC Grounding for lightning protection, this N Male antenna ensures both operational safety and long-term durability for demanding drone deployments.
Key Features
General Information:
| Product No.: | YC-FG00074 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 650*20*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 686-2700MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤192 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure

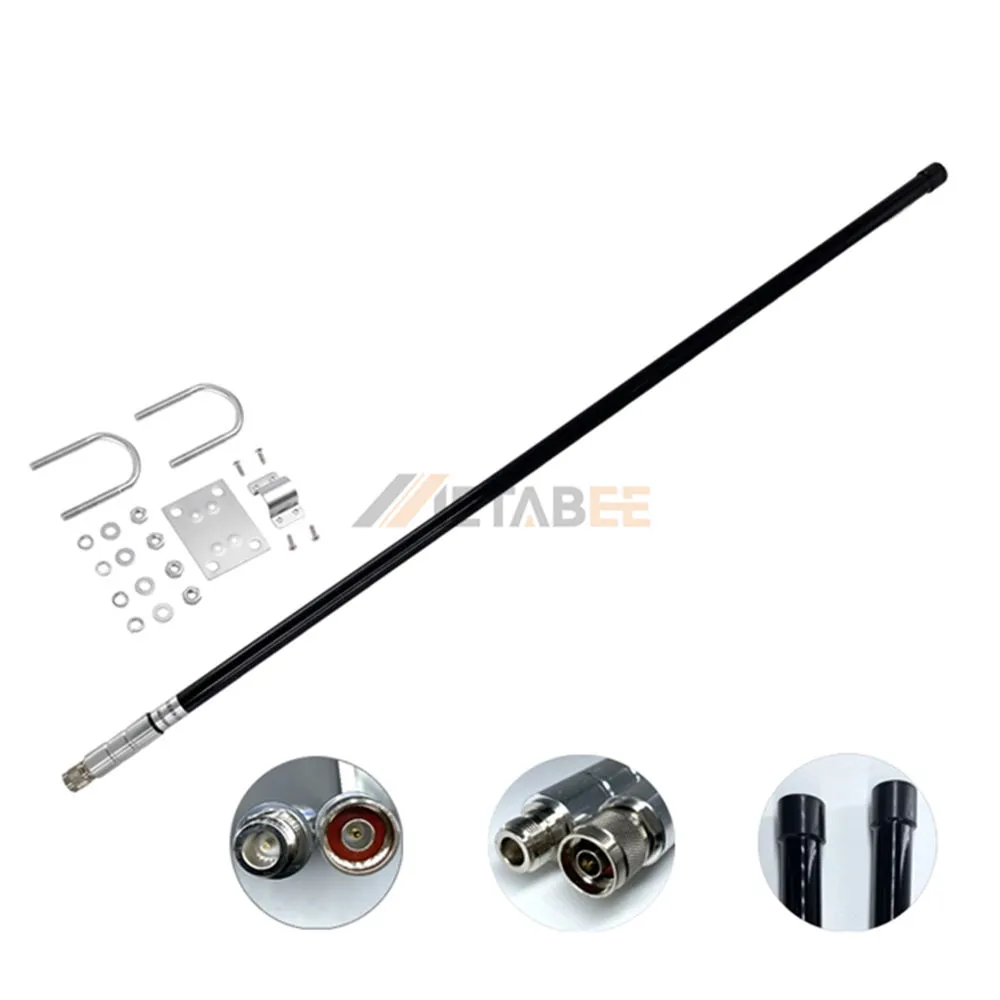

Installation Method of Fiberglass Antennas
Applications of this Ultra-Wideband 686-2700MHz 3dBi Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
