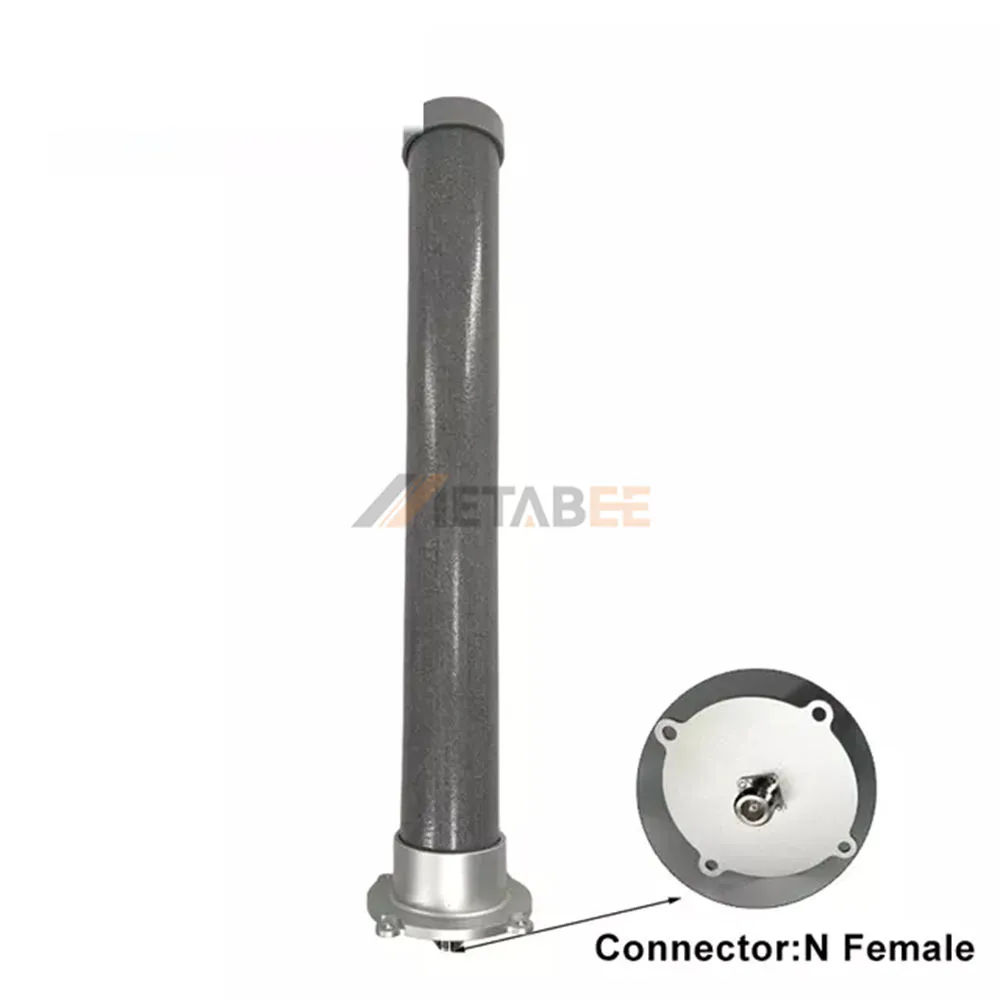

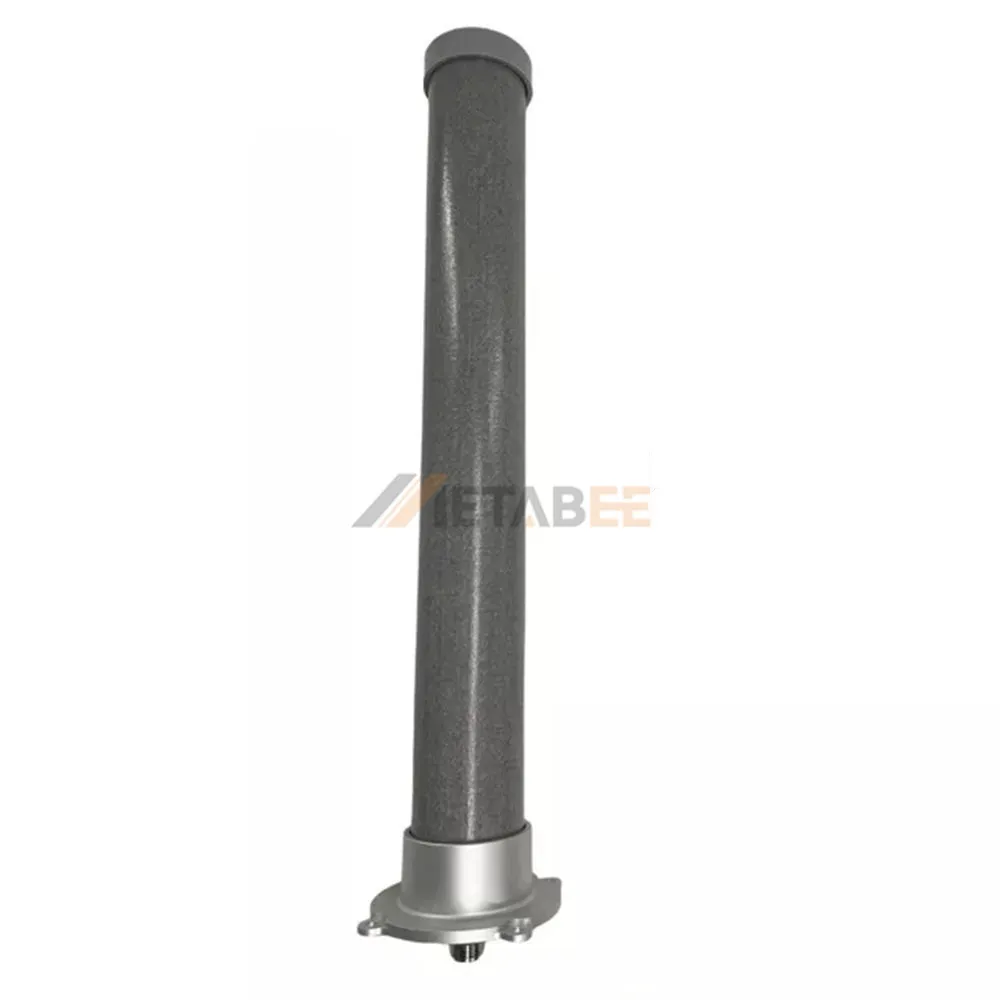

4G LTE 1880-2680MHz 6dBi Omni Fiberglass Antenna, IP65
Introduction:
The 4G LTE 1880–2680MHz 6dBi Omni Fiberglass Antenna is engineered for enhanced cellular coverage and stable signal distribution across LTE networks. Operating within the 1880–2680MHz band, it delivers a higher 6dBi gain, extending coverage range while maintaining a true omni-directional radiation pattern for consistent 360° connectivity. The vertical polarization improves signal penetration and reduces interference, making it suitable for dense urban and industrial deployments.
Constructed with a durable fiberglass radome, this antenna is built to withstand demanding outdoor environments. Featuring an IP66-rated enclosure, it ensures superior protection against water and dust. With a VSWR of ≤1.92 and 50 Ohm impedance, it guarantees efficient RF performance and supports up to 50W input power. Designed for reliability, it operates in extreme temperatures from -40°C to +85°C, withstands wind speeds up to 60 m/s, and incorporates DC grounding for effective lightning protection.
Key Features
- 1880–2680MHz frequency band for 4G LTE applications
- 6dBi high gain for extended coverage range
- Omni-directional 360° signal distribution
- Rugged fiberglass radome with IP66 waterproof rating
- Stable RF performance: VSWR ≤1.92, 50 Ohm impedance
- N-Female connector with DC grounding for lightning protection
General Information:
| Product No.: | YC-FG00085-B | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 350*52*20mm | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1880-2680MHz | |
| Gain: | 6dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 4G LTE 1880-2680MHz 6dBi Omni Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
