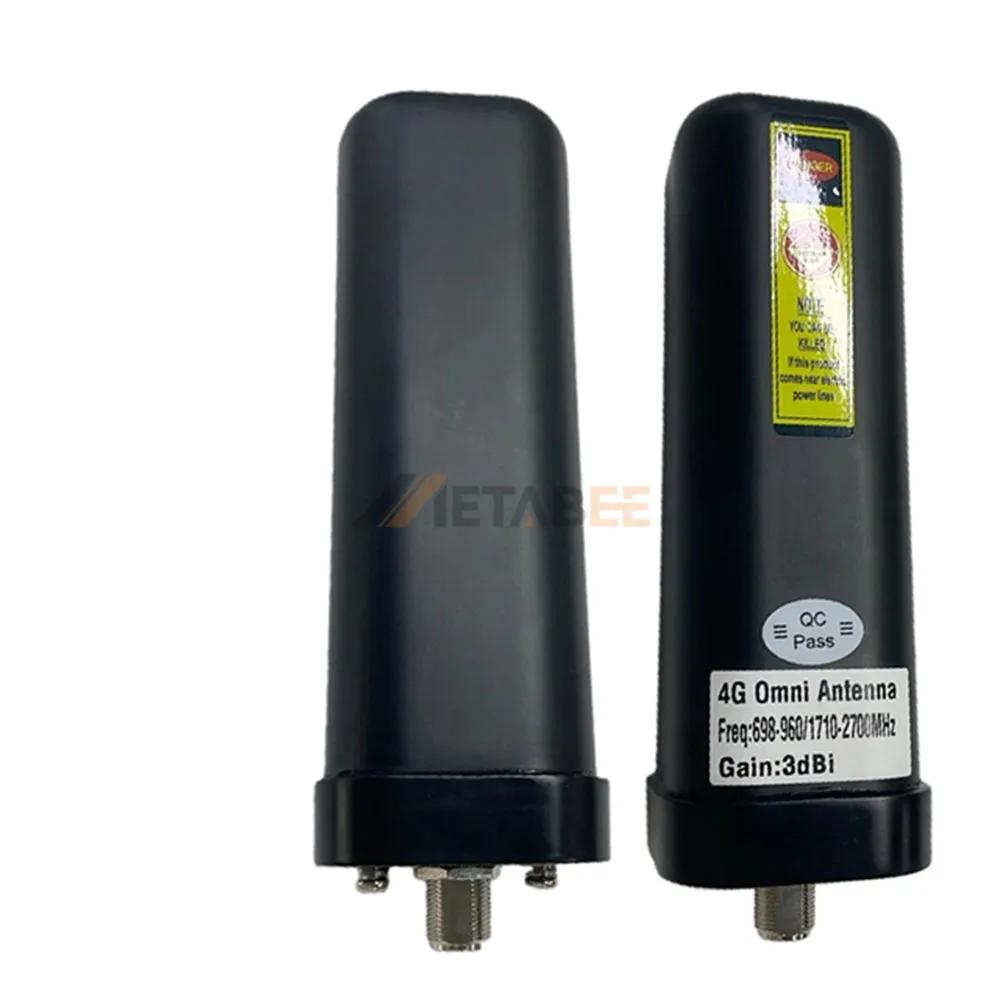

686-2700MHz Ultra-Wideband 4G/5G Outdoor Fibreglass Antenna, IP65
Introduction:
The 686–2700MHz 4G/5G Outdoor fiberglass antenna is engineered for reliable multi-network connectivity across cellular and broadband systems. Covering an extensive frequency range from 686MHz to 2700MHz, it supports 4G LTE and 5G applications with consistent signal delivery. Featuring a 3dBi gain and omni-directional radiation pattern, it ensures stable 360° coverage, while vertical polarization enhances signal penetration and reduces interference in complex RF environments. A low VSWR of ≤1.5 guarantees efficient power transmission and minimal signal loss.
Designed for demanding outdoor deployments, the antenna is housed in a durable fiberglass radome with an IP66 rating for superior protection against water and dust. It supports up to 50W input power and maintains optimal performance with a 50 Ohm impedance. With an operating temperature range of -40°C to +85°C and wind survivability up to 60 m/s, it ensures long-term reliability in extreme conditions. The SMA Male connector allows easy integration, while DC grounding provides effective lightning protection for enhanced system safety.
Key Features
- Ultra-wideband 686–2700MHz for 4G/5G applications
- 3dBi gain with omni-directional 360° signal coverage
- Low VSWR ≤1.5 for high transmission efficiency
- Rugged fiberglass radome with IP66 waterproof rating
- Wide operating range: -40°C to +85°C, wind resistance up to 60 m/s
- SMA Male connector with DC grounding for lightning protection
General Information:
| Product No.: | YC-FG00302 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 130*25*25mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 686-2700MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure

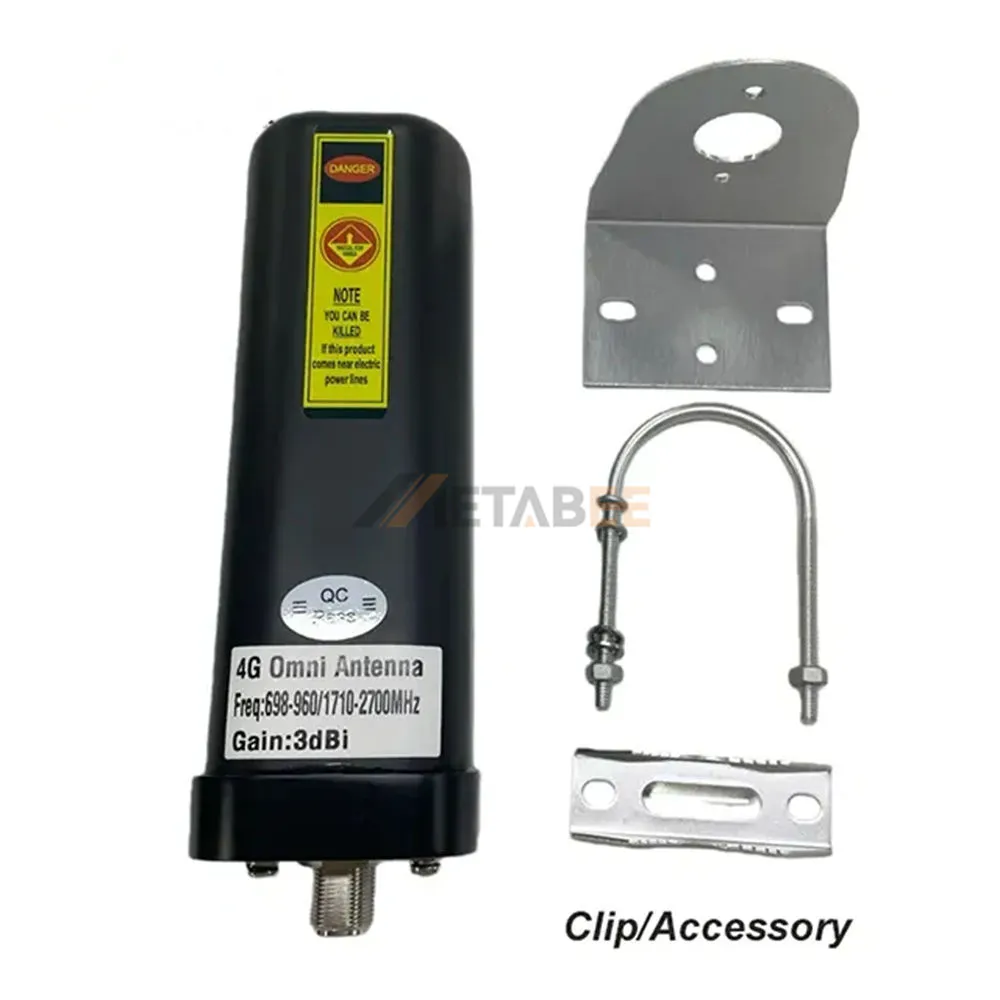

Installation Method of Fiberglass Antennas
Applications of this 686-2700MHz Ultra-Wideband 4G/5G Outdoor Fibreglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
