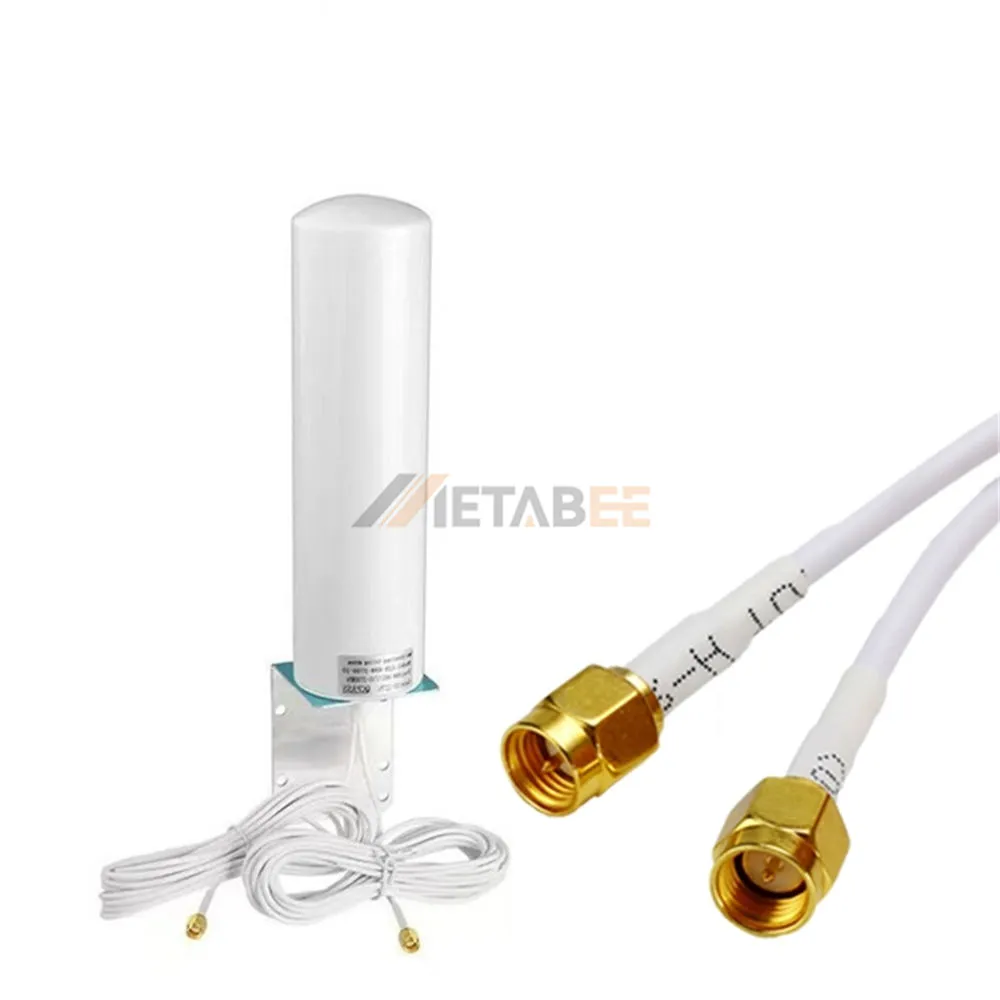

686-2700MHz 4G 18-20dBi Fiberglass Antenna with RG174 Cable, SMA Male
Introduction:
Designed for superior 4G and LTE connectivity, this 686-2700MHz Fiberglass Antenna delivers exceptional omnidirectional coverage across a wide frequency range. With a high gain of 18-20dBi and vertical polarization, it ensures stable, long-range signal reception even in challenging environments. The antenna features a durable fiberglass radome and an IP66 rating, making it fully weatherproof for outdoor use. It operates flawlessly in extreme temperatures from -40°C to 85°C and withstands winds up to 60 m/s. The package includes a 1-meter RG174 cable terminated with an SMA Male connector, allowing easy connection to modems, routers, and gateways.
Engineered for reliability, this antenna maintains a low VSWR of ≤1.92, minimizing signal loss and maximizing efficiency. It supports up to 50W of input power with 50 Ohm impedance. The built-in DC grounding provides effective lightning protection, safeguarding your equipment during storms. Whether for cellular base stations, IoT devices, or rural network extensions, this rugged antenna offers professional-grade performance in a compact form.
Key Features
- 686-2700MHz Wideband Support – Compatible with 4G/LTE and future networks
- 18-20dBi High Gain – Extends signal range and improves weak signals
- Omnidirectional Pattern – 360° coverage for all-around reception
- IP66 Weatherproof + DC Grounding – Resists rain, dust, and lightning strikes
- Low VSWR (≤1.92) – Maximizes power efficiency and signal clarity
- SMA Male with RG174 Cable – Easy plug-and-play installation
General Information:
| Product No.: | YC-FG00079 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |

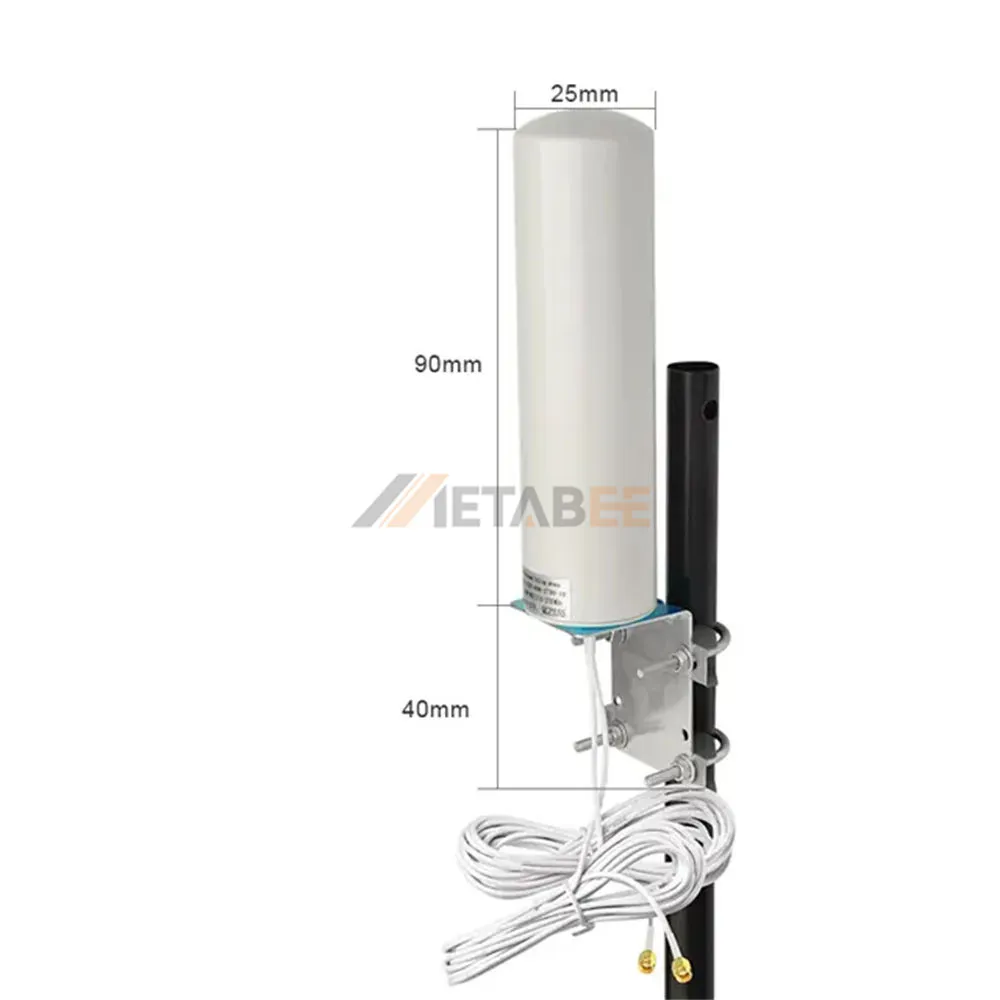

| Dimensions: | 130*25*25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 686-2700MHz | |
| Gain: | 18-20dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 686-2700MHz 4G 18-20dBi Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
