5G/4G/3G 2100-3300MHz 3dBi Multi Band Outdoor Fiberglass Antenna, N-Female, IP65
Introduction:
Designed for 2100–3300MHz bands covering 3G, 4G, and 5G mid-band spectrum, this omnidirectional fiberglass antenna delivers consistent 3dBi gain with vertical polarization. The ultra-low VSWR of ≤1.5 ensures near-perfect impedance matching, minimizing signal reflections and maximizing power transfer. Rated for 50W input power at 50 Ohms, it suits small cell backhaul, repeaters, and mobile broadband terminals.
Built for extreme outdoor deployment, the fiberglass radome achieves IP66 dust/water ingress protection. Operational from -40°C to 85°C with 60 m/s wind survival and DC ground lightning protection. Equipped with an N-Female connector for direct, low-loss attachment to馈线 or enclosures.
Key Features
- 2100–3300MHz multi-band – 3G/4G/5G ready
- 3dBi omnidirectional gain – 360° coverage
- VSWR ≤1.5 – Ultra-low reflection
- IP66 fiberglass radome – Fully weather-sealed
- DC grounding – Integrated lightning protection
- N-Female connector – Durable, low-loss interface
General Information:
| Product No.: | YC-FG00088 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |

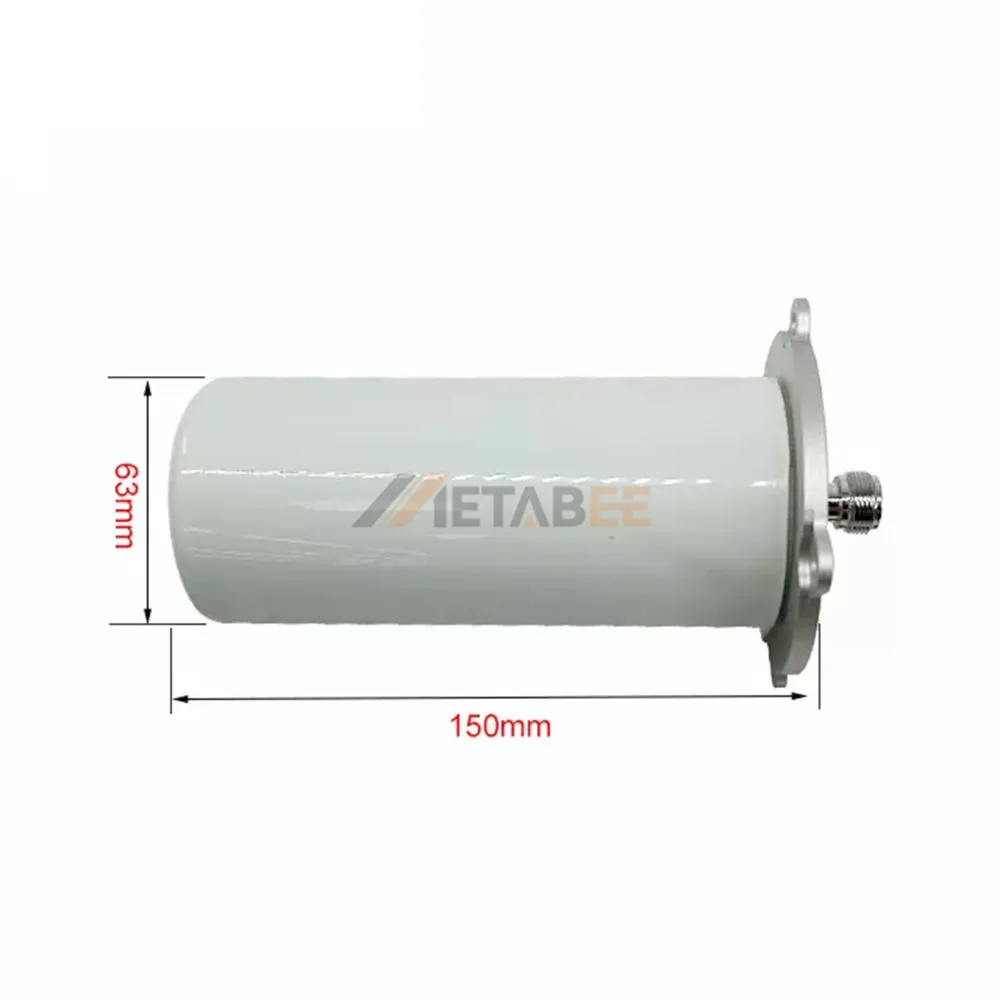

| Dimensions: | 150*63*20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2100-3300MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 5G/4G/3G 3dBi Multi Band Outdoor Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
