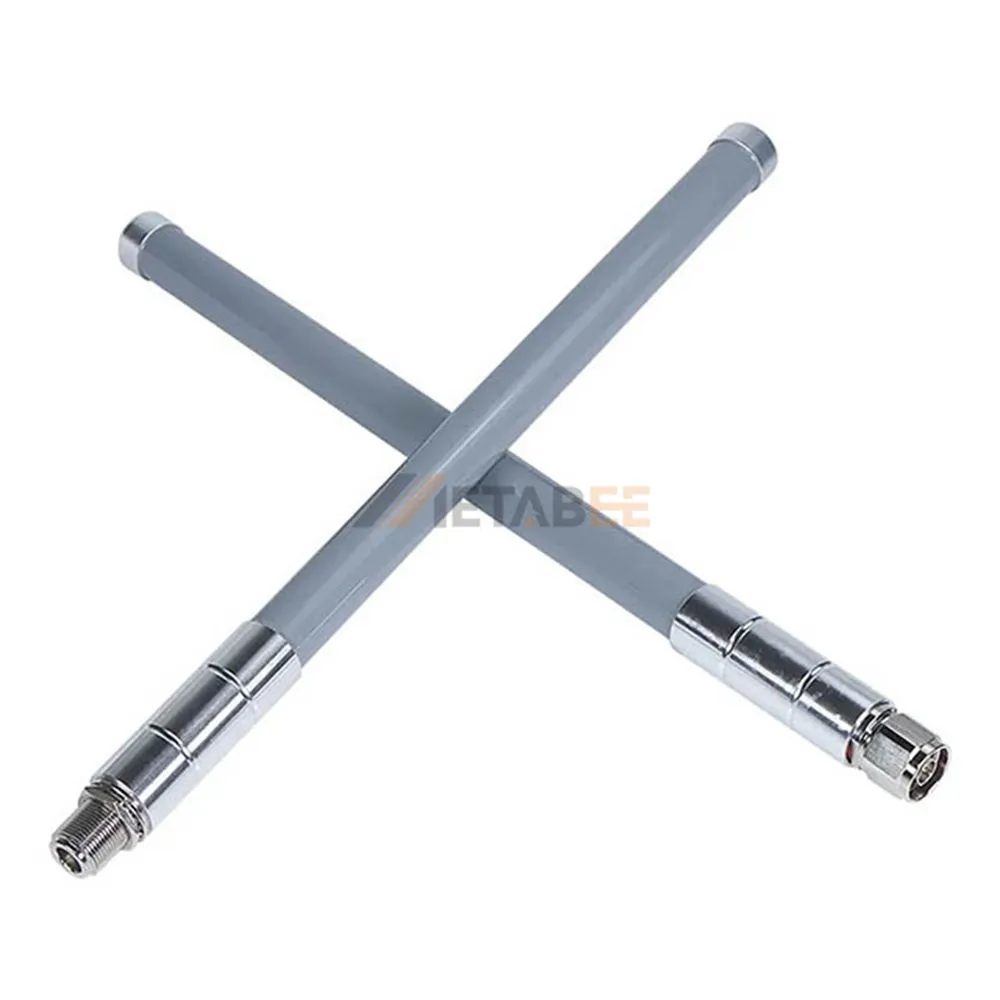

700MHz Outdoor LORA Fibreglass Antenna, N-Male/N-Female, IP65
Introduction:
Designed specifically for 700MHz LoRa and IoT networks, this outdoor fibreglass antenna delivers reliable omnidirectional coverage with a gain of 5±1dBi. Vertical polarization ensures consistent signal alignment, while the low VSWR of ≤2.0 minimizes reflection losses for efficient RF transmission. The antenna supports up to 50W input power with 50 Ohm impedance, making it suitable for gateways, base stations, and remote sensor networks. Built for harsh environments, the fibreglass radome meets IP66 protection against dust and high-pressure water jets. Operating temperature ranges from -40°C to 85°C with wind survivability of 60 m/s. DC grounding provides integrated lightning protection. Available with N-Male or N-Female connector options for flexible deployment.
Key Features
- 700MHz LoRa-optimized – Dedicated band for long-range IoT
- 5±1dBi gain – Balanced coverage and range
- Omnidirectional pattern – 360° signal reception
- IP66-rated fibreglass – Weatherproof and UV-resistant
- VSWR ≤2.0 – Low signal reflection
- DC grounding – Lightning protection included
General Information:
| Product No.: | YC-FG00015 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male/N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 600*20*20mm | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 700MHz | |
| Gain: | 5±1dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 700MHz Outdoor LORA Fibreglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
