902-928MHz FRP Omni Fibreglass Antenna for Communication, N-Female, IP65
Introduction:
Boost your network’s reach and reliability with our high-performance 902-928MHz Fiberglass Omni-directional Antenna. Engineered specifically for long-range communication, this antenna features a 6±1dBi high-gain output and a consistent vertical polarization, ensuring superior signal penetration and broad 360° coverage. Whether you are deploying LoRaWAN gateways, IoT sensors, or RFID systems, this antenna provides the stable connectivity required for mission-critical data transmission.
Built to withstand the most demanding environments, the antenna is encased in a rugged, UV-stabilized fiberglass radome with an IP66 waterproof rating. It is designed to survive extreme conditions, from freezing temperatures of -40°C to scorching 85°C heat, and wind speeds up to 60 m/s. Integrated with DC Grounding for lightning protection and an industrial-grade N-Female connector, this unit offers a “set-and-forget” solution for outdoor telecommunication infrastructure.
Key Features
- High Gain Performance: 6±1dBi gain ensures extended range and optimized signal strength for the 902-928MHz band.
- 360° Omni-directional Coverage: Delivers consistent, uniform radiation patterns in all horizontal directions.
- Industrial Weatherproofing: IP66 rated and tested for wind survivability up to 60 m/s, ideal for harsh outdoor use.
- Rugged Construction: Features a durable fiberglass radome and N-Female connector for long-term corrosion resistance.
- Lightning Protection: Integrated DC Grounding safeguards your equipment against electrical surges and strikes.
- Extreme Versatility: Operates reliably across a wide temperature range (-40°C to +85°C) for global deployments.
General Information:
| Product No.: | YC-FG00006 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |

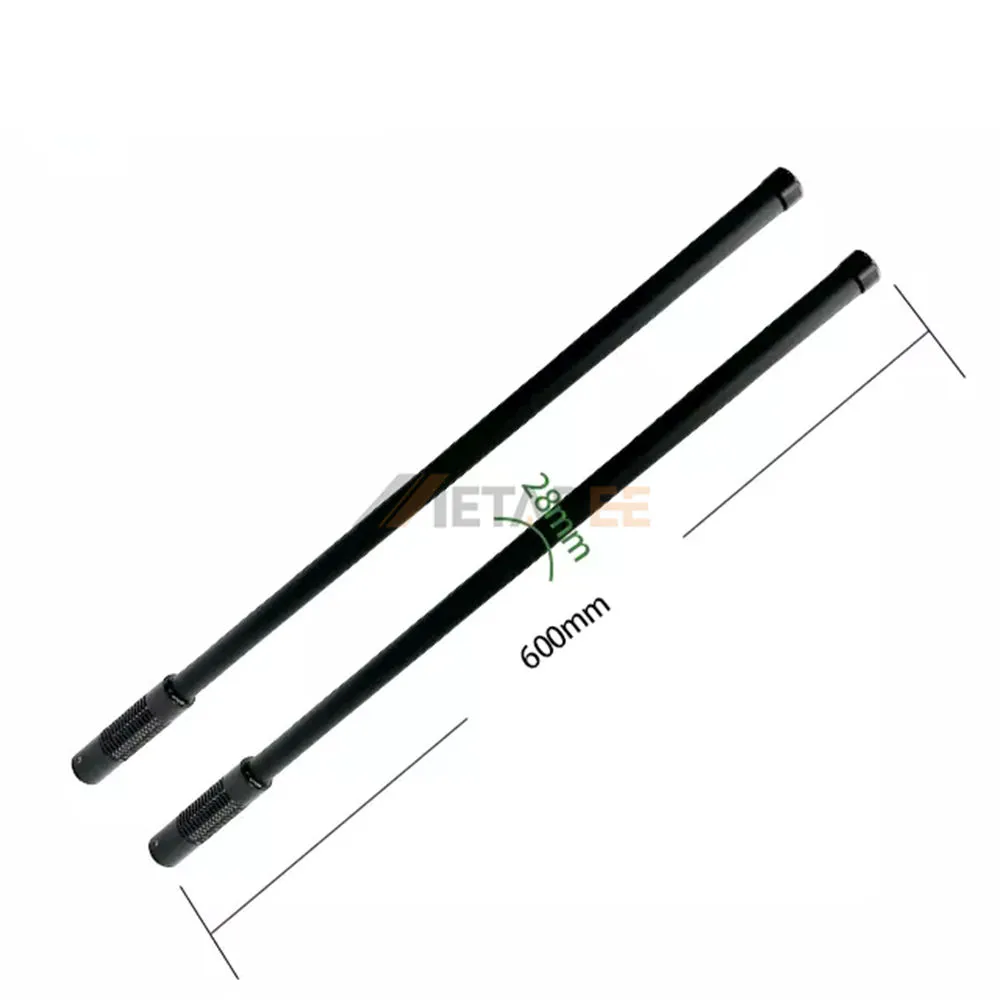

| Dimensions: | 600*28*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 902-928MHz | |
| Gain: | 6±1dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 902-928MHz FRP Omni Fibreglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
