4G LTE 1880-2680MHz 4-5dBi FRP Fibreglass Antenna, N-Female, IP65
Introduction:
The 4G LTE 1880–2680MHz FRP Fiberglass Antenna is designed for stable and efficient cellular communication across mid-band LTE frequencies. Covering 1880–2680MHz, it ensures reliable signal transmission for 4G networks with a consistent 4–5dBi gain. Its omni-directional radiation pattern provides uniform 360° coverage, while vertical polarization enhances signal penetration and minimizes interference in dense RF environments.
Built with a high-strength FRP fiberglass radome, this antenna is optimized for long-term outdoor deployment. The IP66-rated enclosure offers superior protection against water and dust ingress. With a VSWR of ≤1.92 and 50 Ohm impedance, it delivers efficient RF performance while supporting up to 50W input power. Designed to withstand harsh conditions, it operates reliably from -40°C to +85°C, endures wind speeds up to 60 m/s, and features DC grounding for effective lightning protection.
Key Features
- Wideband 1880–2680MHz for 4G LTE applications
- 4–5dBi gain with omni-directional 360° coverage
- FRP fiberglass radome with IP66 waterproof protection
- Stable performance: VSWR ≤1.92, 50 Ohm impedance
- Extreme durability: -40°C to +85°C, wind resistance up to 60 m/s
- N-Female connector with DC grounding for lightning protection
General Information:
| Product No.: | YC-FG00085-A | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |

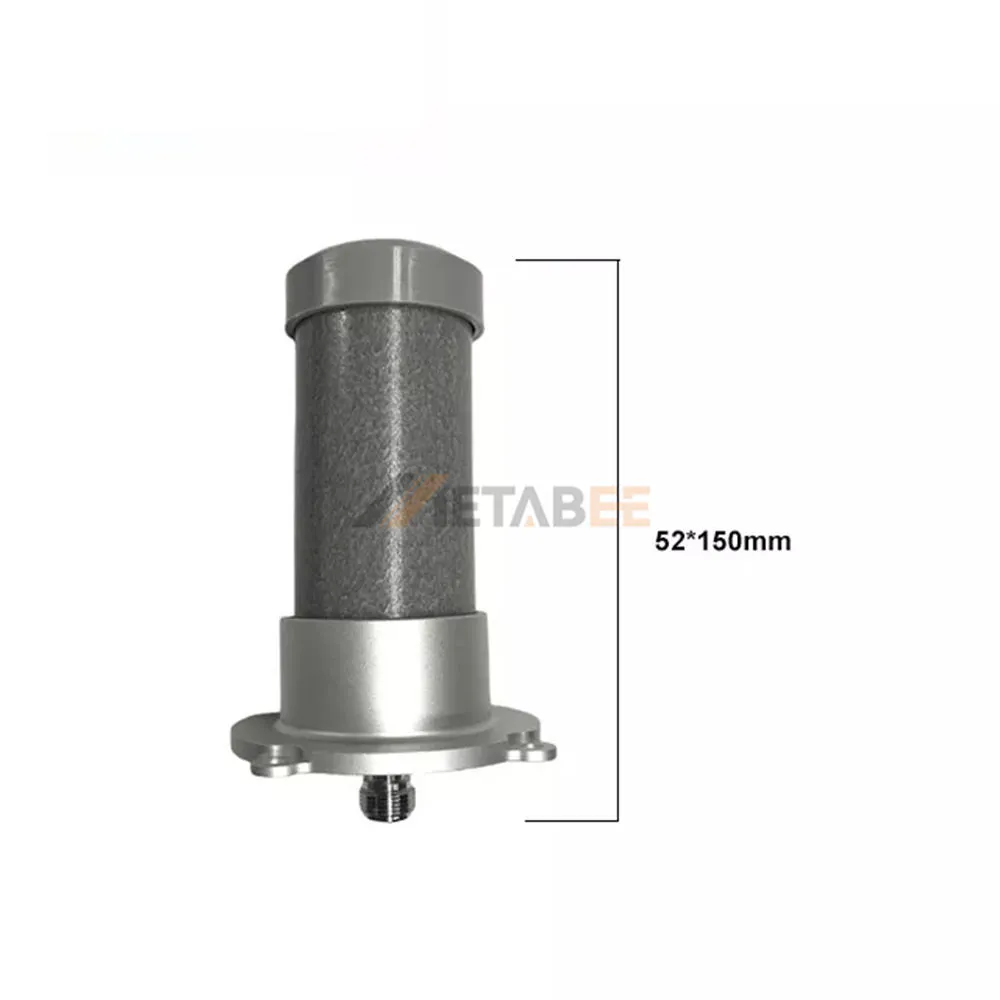

| Dimensions: | 150*52*20mm | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1880-2680MHz | |
| Gain: | 4~5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 4G LTE 1880-2680MHz 4-5dBi FRP Fibreglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
