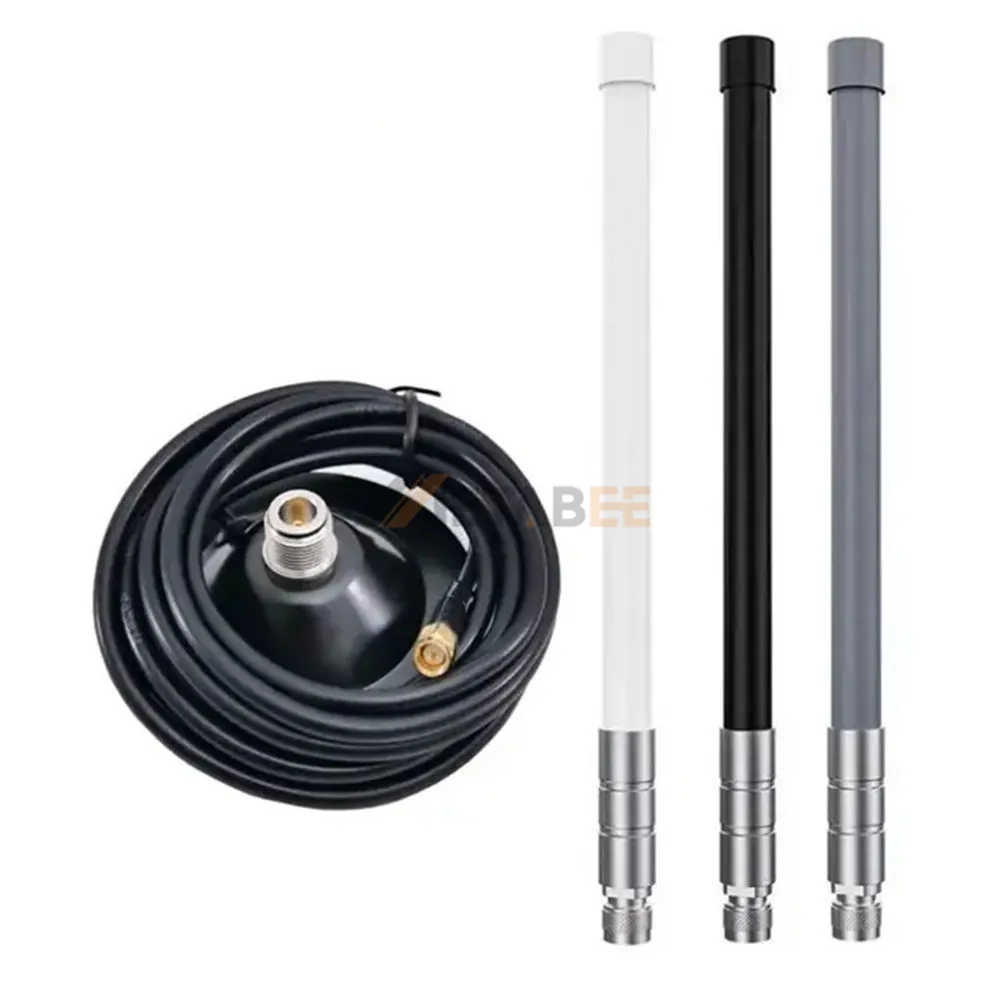

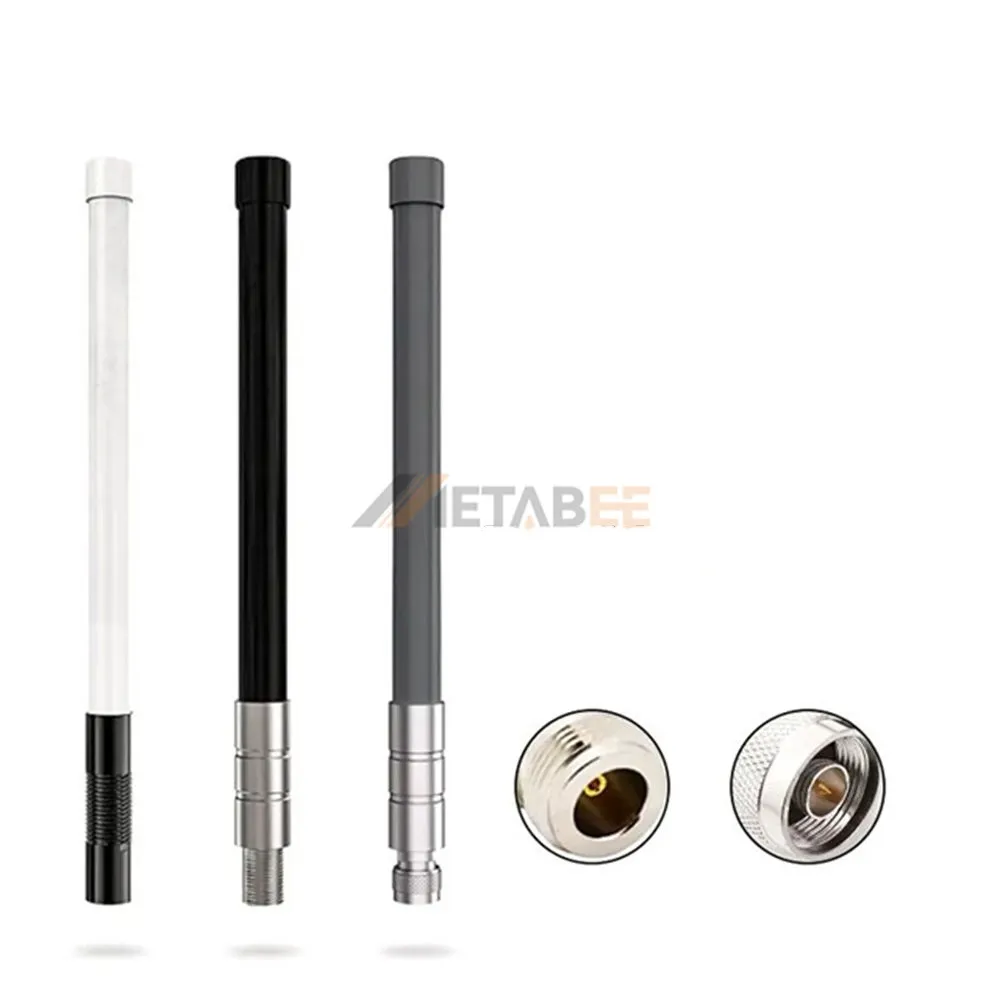

703-803MHz 3-5dBi Omni Fibreglass Antenna, N-Male, IP65
Introduction:
Designed for 700MHz band applications, including public safety, IoT, and mobile networks, this omnidirectional fibreglass antenna delivers reliable wide-area coverage. With a gain range of 3–5dBi and vertical polarization, it provides balanced signal distribution in all directions. The low VSWR of ≤1.92 ensures minimal mismatch loss, while 50W maximum input power and 50 Ohm impedance support standard RF systems.
The antenna is built for continuous outdoor operation. Its fibreglass radome offers IP66 protection against dust and heavy seas, backed by an operating temperature range of -40°C to 85°C and wind survivability of 60 m/s. DC grounding provides integrated lightning protection. The N-Male connector ensures secure, low-loss connection to feeders or enclosures.
Key Features
- 703–803MHz band-optimized – Ideal for 700MHz IoT and public safety
- 3–5dBi omnidirectional gain – 360° coverage with moderate reach
- VSWR ≤1.92 – Low reflected power
- IP66 fibreglass enclosure – Weatherproof and durable
- DC grounding – Built-in lightning protection
- N-Male connector – Reliable, low-loss RF interface
General Information:
| Product No.: | YC-FG00021 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 600*20*20mm | |
| Color: | Customized | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 703-803MHz | |
| Gain: | 3-5dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 703-803MHz 3-5dBi Omni Fibreglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
