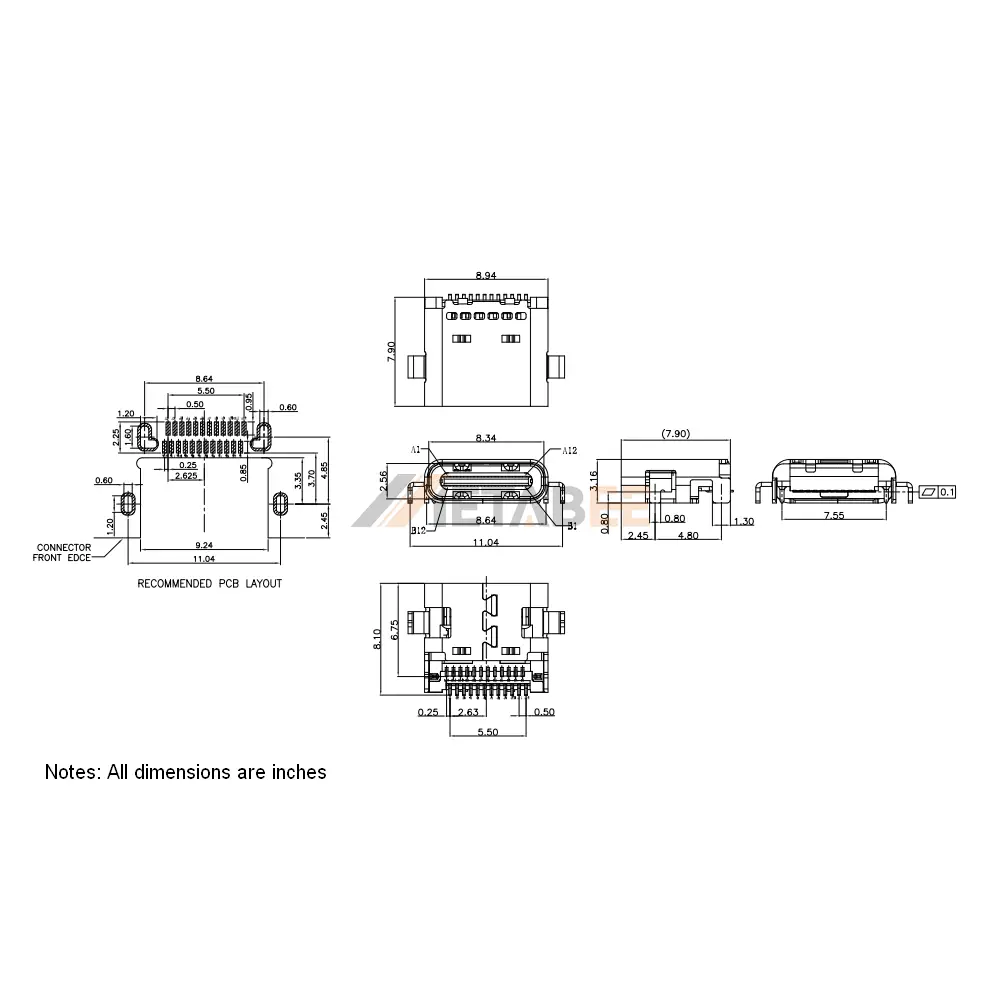

Type C USB 3.1 Socket, 24 Pin, 10 Gbps, PCB Surface Mount, R/A
Introduction:
Upgrade your high-speed data transfer applications with our premium Type C USB 3.1 Socket, designed for reliable performance and space-saving PCB mounting. This 24-pin female connector supports a blazing fast 10 Gbps data transfer rate, making it ideal for modern devices requiring quick syncing and high-bandwidth connectivity. Engineered with a right-angle (R/A) orientation, this surface-mount device facilitates efficient, low-profile PCB layouts, allowing for versatile design integration in compact electronic assemblies.
Built for durability and consistent electrical performance, this USB 3.1 socket features a robust construction. The housing is crafted from stainless steel with a nickel-plated finish, ensuring corrosion resistance and structural integrity during repeated mating cycles. The contacts are manufactured from high-quality copper alloy with a gold-plated finish, guaranteeing excellent conductivity and signal integrity. Rated for a current of 3A and compliant with the UL94V-0 flame retardant standard, this component operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for industrial and commercial environments.
Key Features
- High-Speed Interface: USB 3.1 Gen 2 specification supporting data transfer rates up to 10 Gbps.
- Compact & Low-Profile: Right-angle (R/A) orientation with PCB surface mount design for space-efficient layouts.
- Durable Construction: Stainless steel shell with nickel plating and gold-plated copper alloy contacts for superior mating cycles.
- Robust Power Handling: Rated to carry a current of 3A for reliable power delivery.
- Wide Operating Range: Certified to perform in extreme temperatures from -40°C to +85°C.
- Safety Compliant: Manufactured with UL94V-0 flame-retardant materials for enhanced safety.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-EH2-SMT-BK-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Type C USB 3.1 Socket, 24 Pin, 10 Gbps:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
