Surface Mount DP Plug Connector, 20 Pin, Right Angle, No-Latch, CS1 Shell
Introduction:
This surface-mount DP plug connector features a 20-pin, right-angle profile engineered for direct printed circuit board integration. Built with a no-latch mechanism, the housing allows quick cable insertions and removals without mechanical interference. The component utilizes a nickel-plated SPCC steel CS1 shell alongside UL 94V-0 high-temperature thermoplastic to withstand automated reflow soldering processes. Furthermore, gold-flashed brass contacts maintain a low contact resistance of 30 mohms maximum, ensuring stable signal integrity during high-speed video transfer from 25°C to +85°C. This specific footprint is frequently specified for slim display adapters, custom video testing boards, embedded multimedia hubs, and compact board-to-board bridging modules.
Key Features
- No-Latch Design: Facilitates quick plug-and-play mating without mechanical locks.
- Surface-Mount R/A: Optimizes layout space on dense printed circuit boards.
- SPCC CS1 Shell: Delivers robust mechanical strength and EMI shielding.
- Gold-Flashed Contacts: Keeps contact resistance below 30 mohms for stable signals.

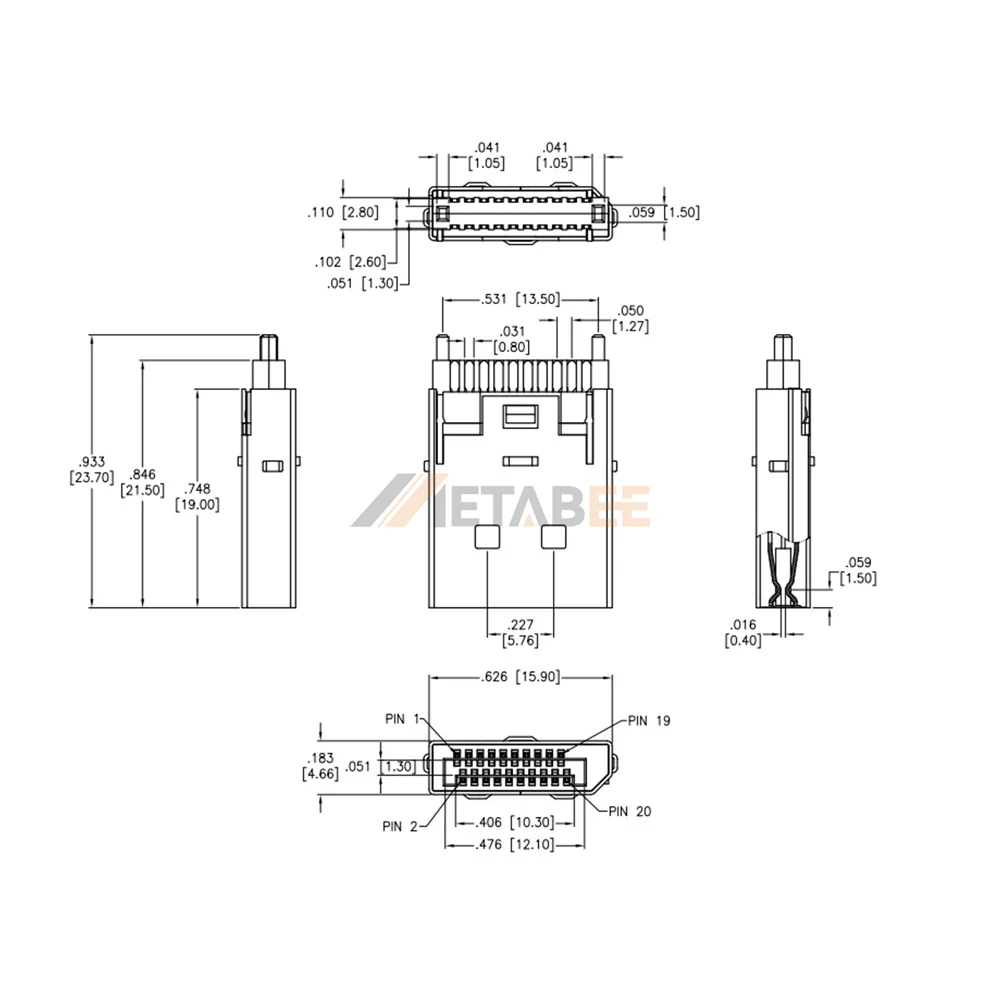

Main Specifications:
General Information:
| Product No.: | DPC-M-SD-CS1-NL | |
| Product Type: | DisplayPort | |
| Gender: | Plug | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | No-Latch | |
| Shell Design: | CS1 Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Thermal Plastic, UL 94V-0 | |
| Shell Material: | SPCC, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -25°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
