Straight HSD C-Coded 4 Pin Jack to Jack Cable Assembly
Introduction

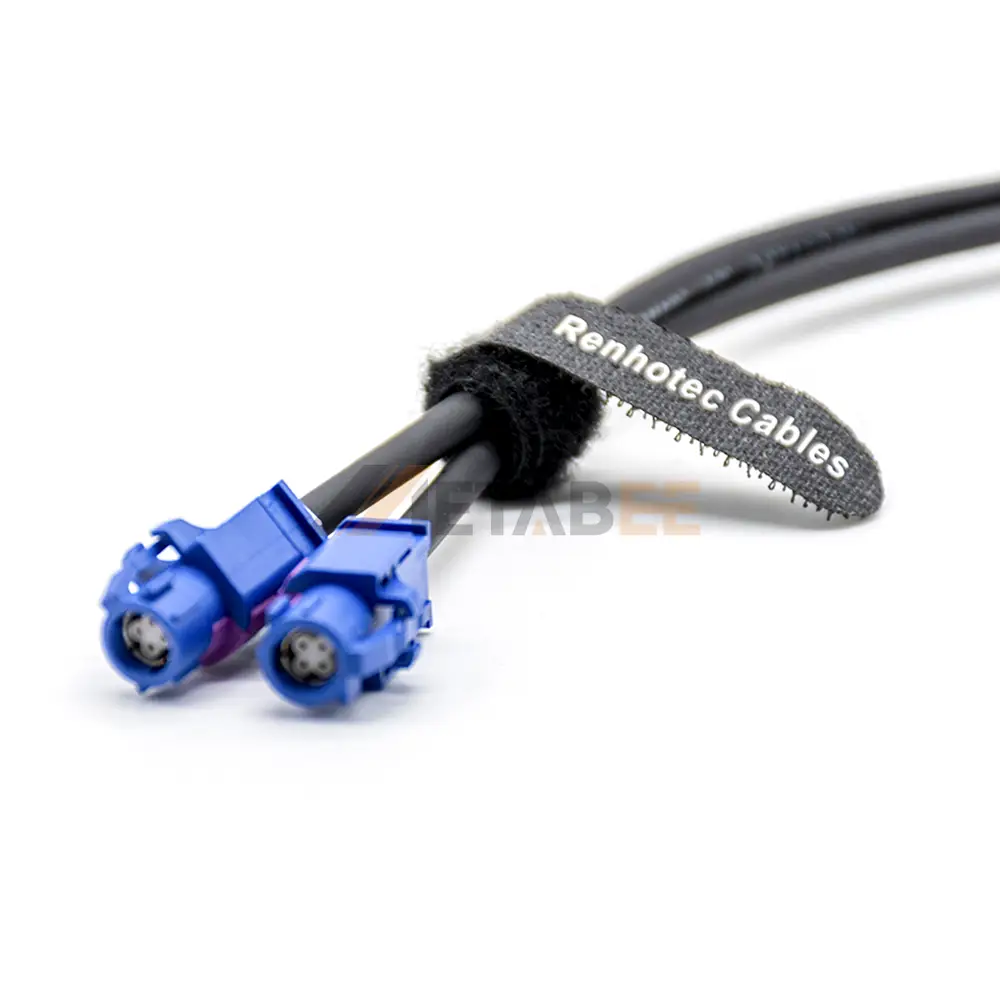

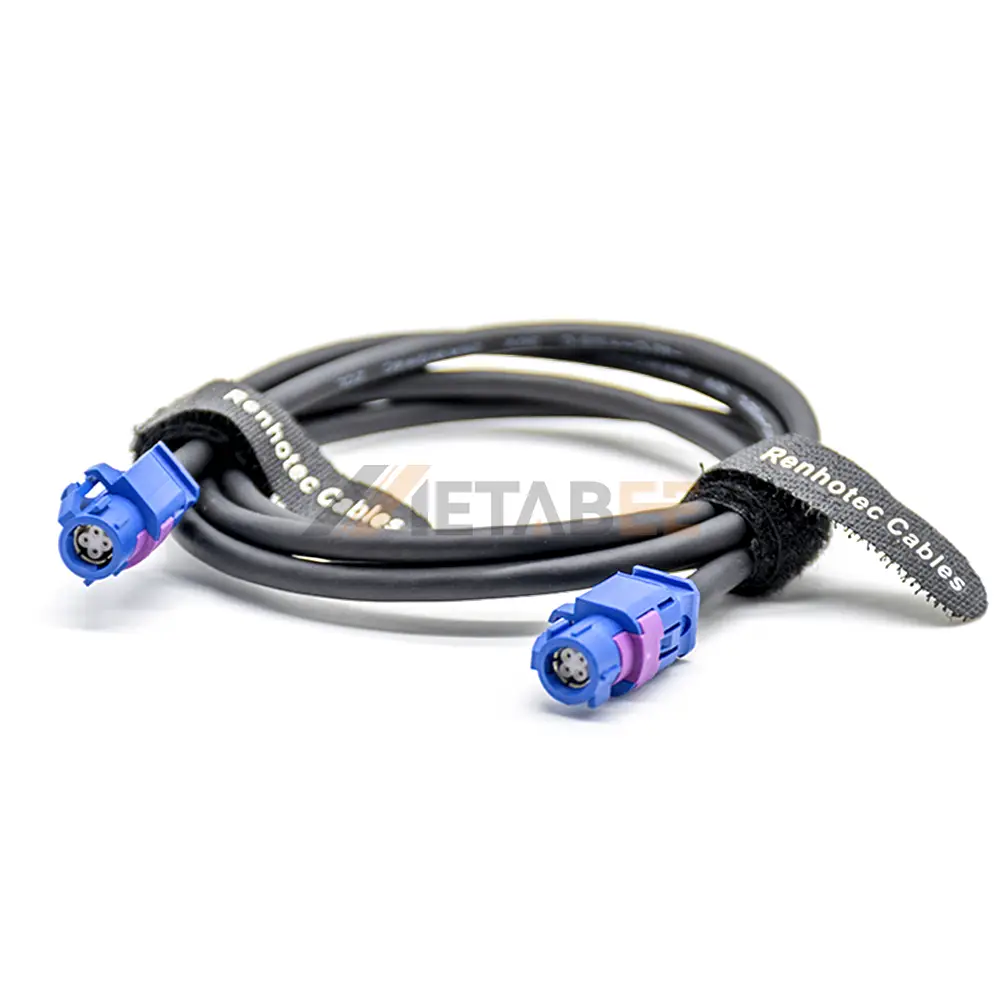

The HSD cable assembly is designed for high-speed data transmission in automotive and industrial applications. Built with precision-engineered HSD connectors, this cable ensures secure and stable connections, making it ideal for advanced infotainment, camera systems, and LVDS signal transmission.
Both connectors feature a C-coded design with 4 pins in straight orientation, ensuring proper mating and reliable signal integrity. With a characteristic impedance of 50 ohms, the assembly delivers consistent performance across demanding environments. It is manufactured to withstand operating temperatures from -40°C to +105°C, offering durability and reliability in harsh conditions.
Key Features:
- HSD to HSD cable assembly with jack-to-jack connection
- C-coded 4-pin straight connectors on both ends
- 50-ohm characteristic impedance for stable signal performance
- Wide operating temperature range: -40°C to +105°C
- Suitable for automotive infotainment, camera, and LVDS applications
Main Specifications:
| Part No.: | 102-11-100023 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | C-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | C-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Straight HSD C-Coded 4 Pin Jack to Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
