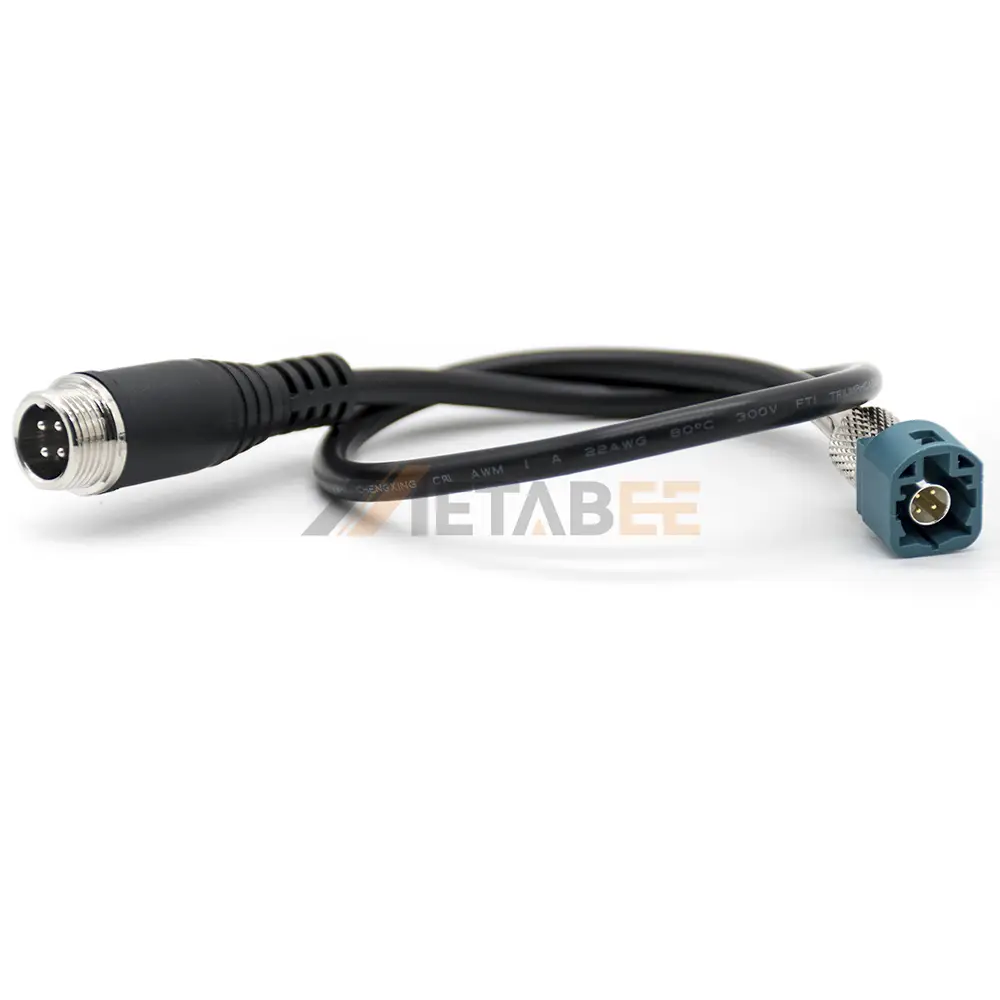

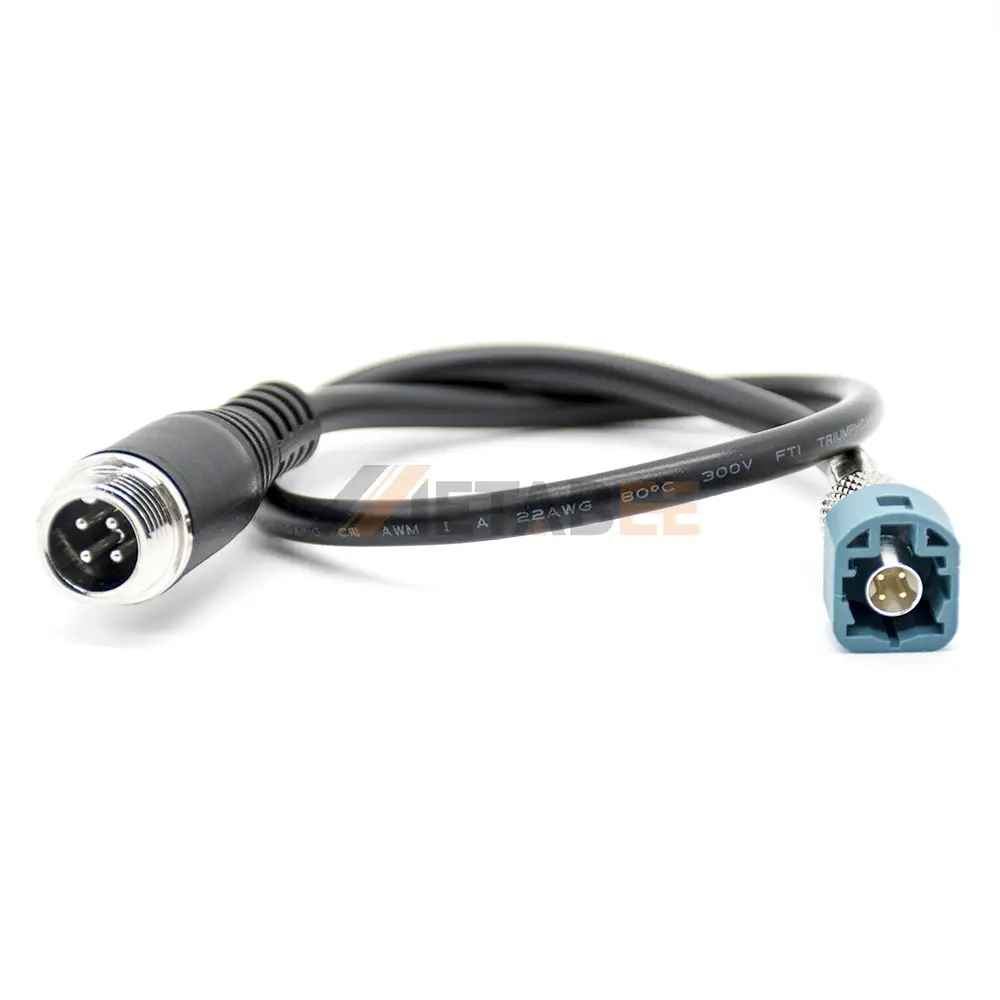

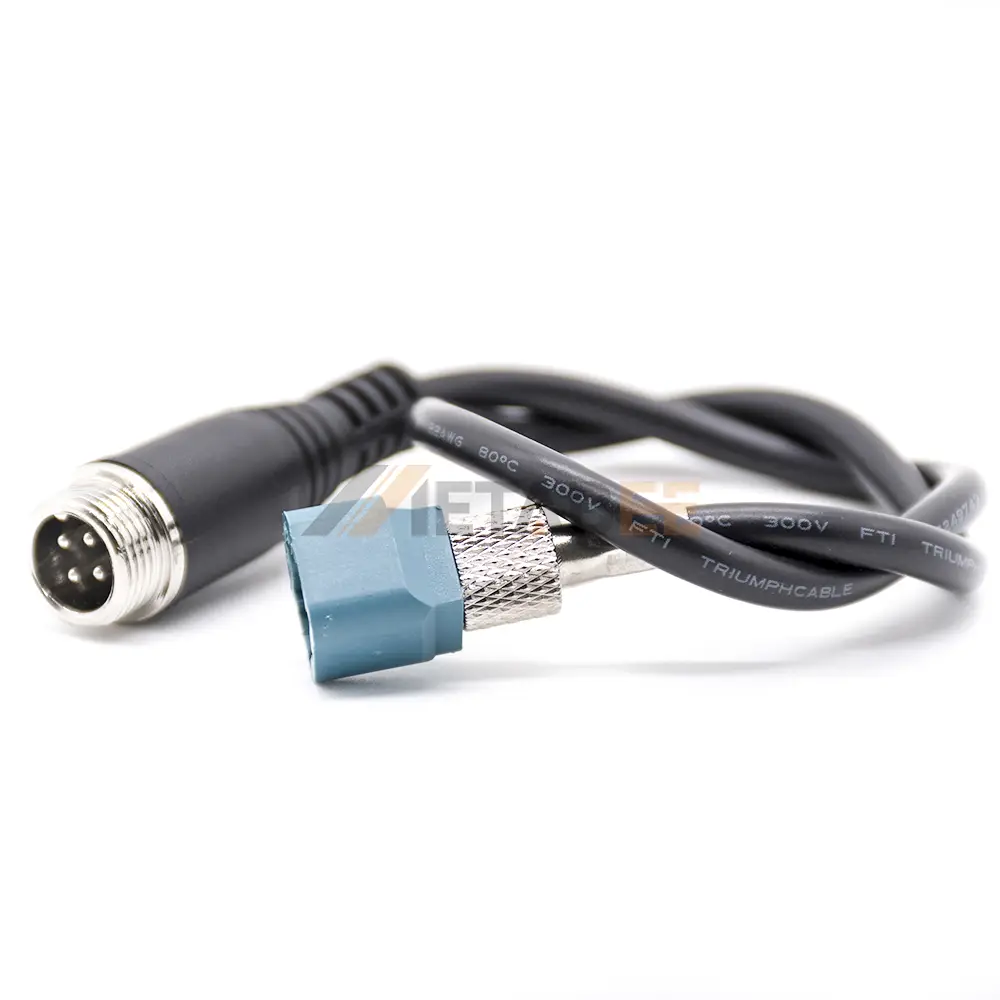

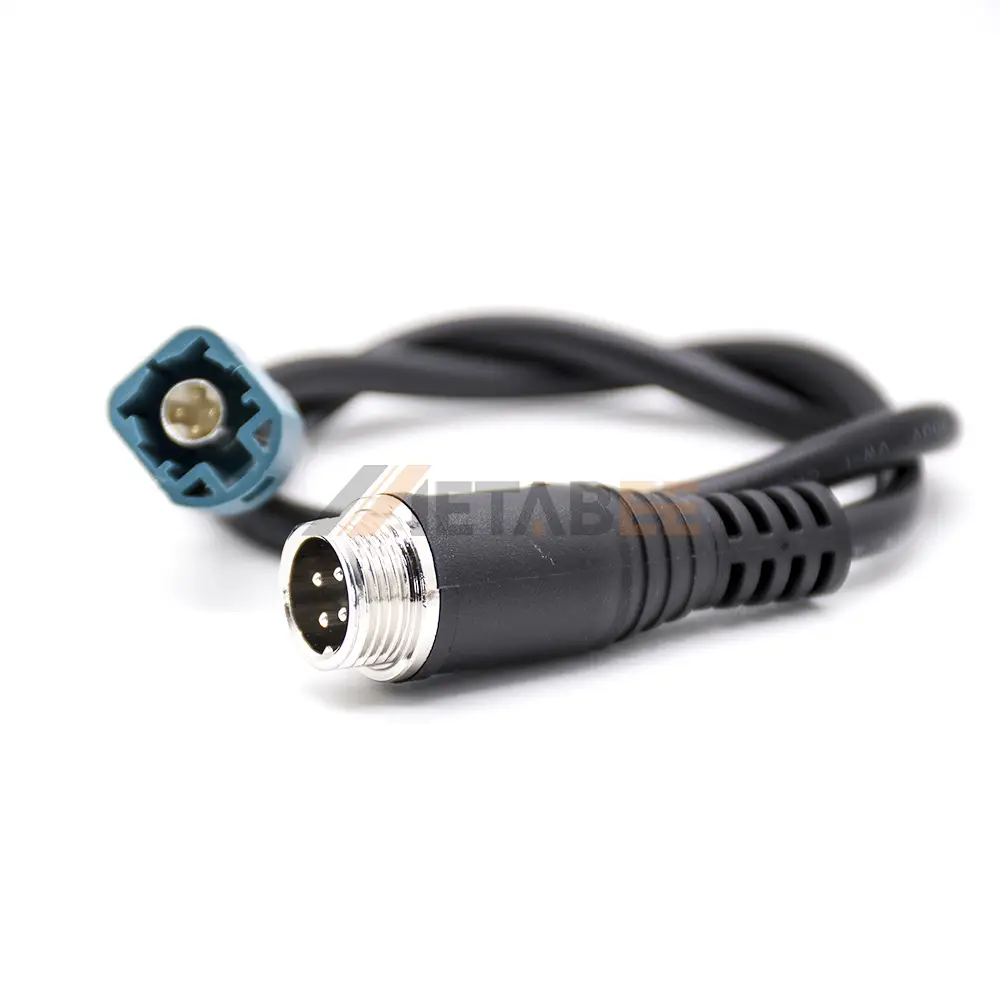

HSD Z-Coded 4 Pin Plug to GX12 4 Pin Plug Cable
Introduction
This premium HSD to GX12 cable assembly is engineered for superior performance in high-speed data transmission applications. It features a straight HSD 4-pin plug with universal Z-coding, ensuring a secure and reliable connection for automotive, industrial, and telecommunications equipment. The robust design guarantees stable signal integrity, making it an ideal solution for systems requiring dependable data transfer.
The cable is terminated with a durable, straight GX12 4-pin plug, known for its resilience in demanding environments. With a contact impedance of 50 Ohms, this assembly is optimized for high-frequency signals, minimizing loss and interference. Built to withstand extreme conditions, it operates flawlessly within a wide temperature range of -40°C to 105°C, ensuring longevity and consistent performance.
Key Features:
- High-Speed Connectivity: An HSD to GX12 cable designed for reliable, high-speed data applications.
- Versatile Z-Coding: The HSD connector features universal Z-coding for broad compatibility.
- Robust Connectors: Equipped with straight 4-pin HSD and GX12 plugs for secure connections.
- Optimal Signal Integrity: A low contact impedance of 50 Ohms ensures minimal signal loss.
- Wide Operating Temperature: Built to perform reliably in extreme temperatures from -40°C to 105°C.
Main Specifications:
| Part No.: | 102-11-10012 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to GX12 | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Plug | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | GX12 Connector | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Plug | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-Coded 4 Pin Plug to GX12 4 Pin Plug Cable:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
