HSD E-Coded 4 Pin Jack to RCA Jack Cable Assembly
Introduction

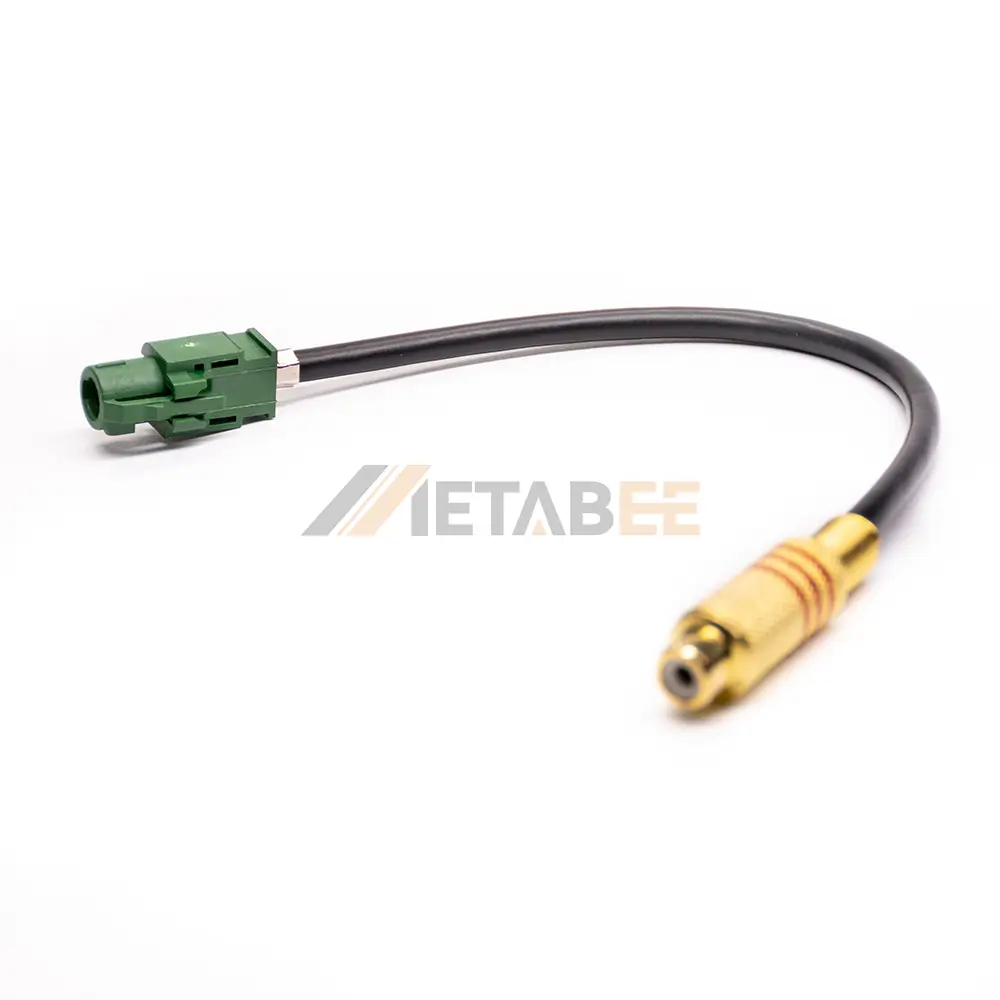

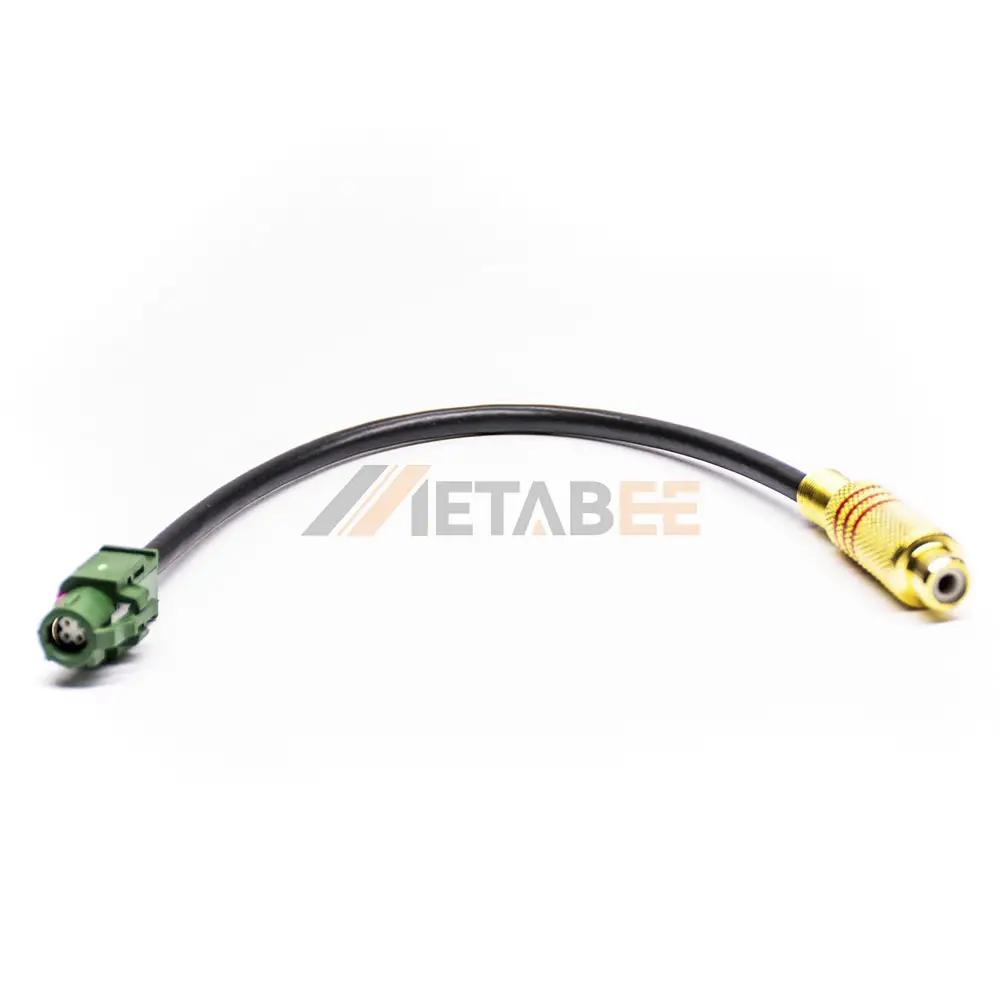

This HSD cable assembly is engineered for reliable, high-frequency signal transmission in automotive and industrial applications. Designed for seamless integration, this assembly features a straight HSD E-Coded 4-Pin Jack on one end and a straight RCA Jack on the other. This configuration ensures a secure, dependable connection, making it ideal for various multimedia and data transfer needs. The cable’s robust design and 50-ohm impedance are optimized to minimize signal loss, guaranteeing superior performance even in demanding environments. Engineered to perform in challenging conditions, this cable assembly boasts a wide operating temperature range of -40°C to 105°C.
Key Features:

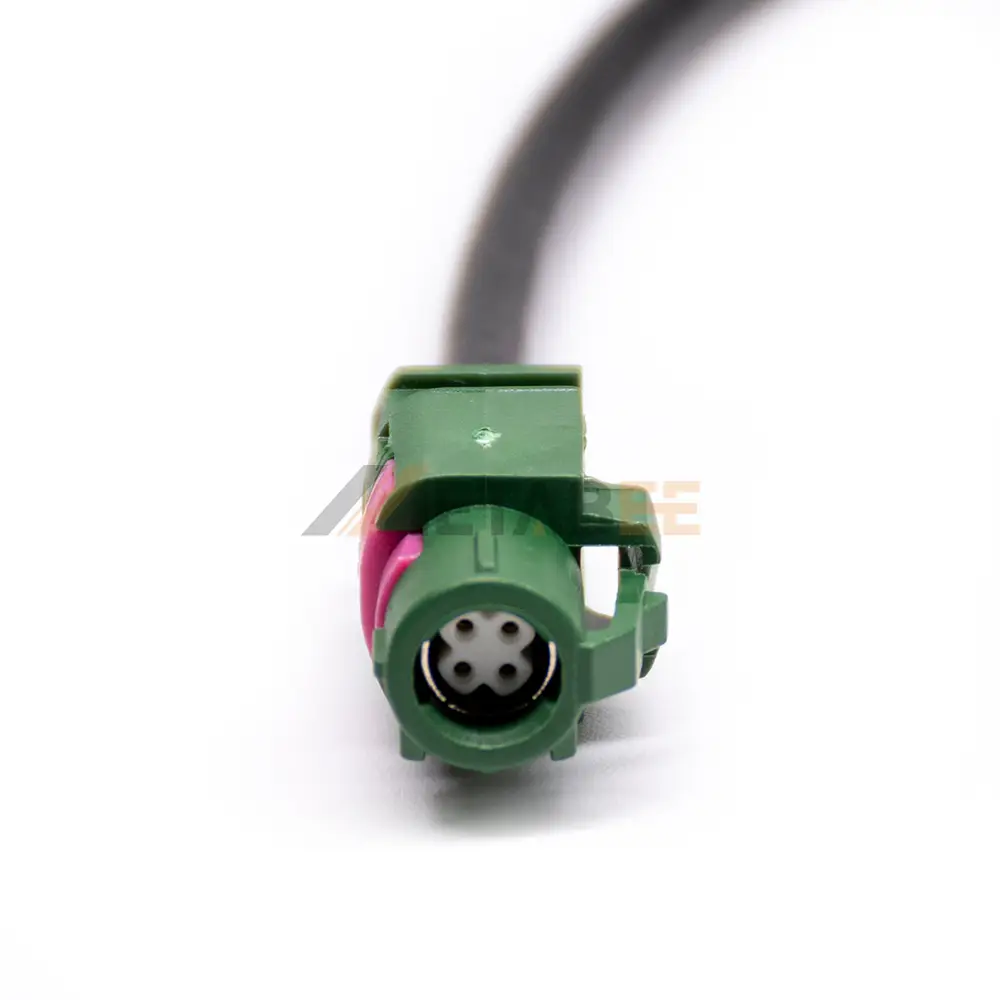

- HSD E-Coded 4-Pin Jack: Standardized connector for high-speed data transmission in automotive applications.

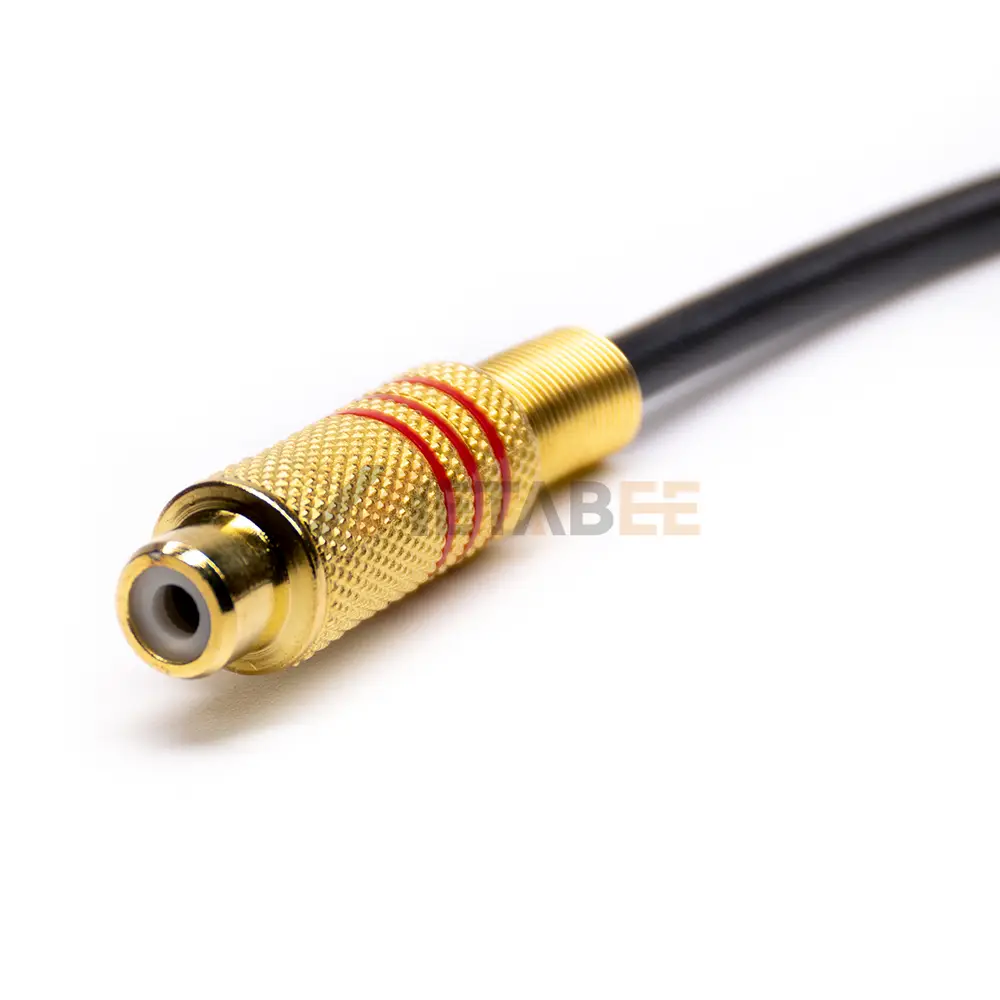

- RCA Jack Connectivity: Allows easy integration with a wide range of audio and video equipment.
- 50-Ohm Impedance: Ensures excellent signal integrity and minimal data loss.
- Wide Temperature Range: Operates reliably from -40°C to 105°C, suitable for harsh environments.
- Straight Connector Design: Provides a secure and stable connection with straightforward installation.
Main Specifications:
| Part No.: | 102-11-10015 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to RCA | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | E-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | RCA Connector | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD E-Coded 4 Pin Jack to RCA Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
In-Vehicle Infotainment Systems;
Advanced Driver-Assistance Systems (ADAS);
Automotive Camera Systems;
GPS and Telematics;
Robotics and Industrial Automation;
Medical Equipment;
Test and Measurement Systems;
Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
