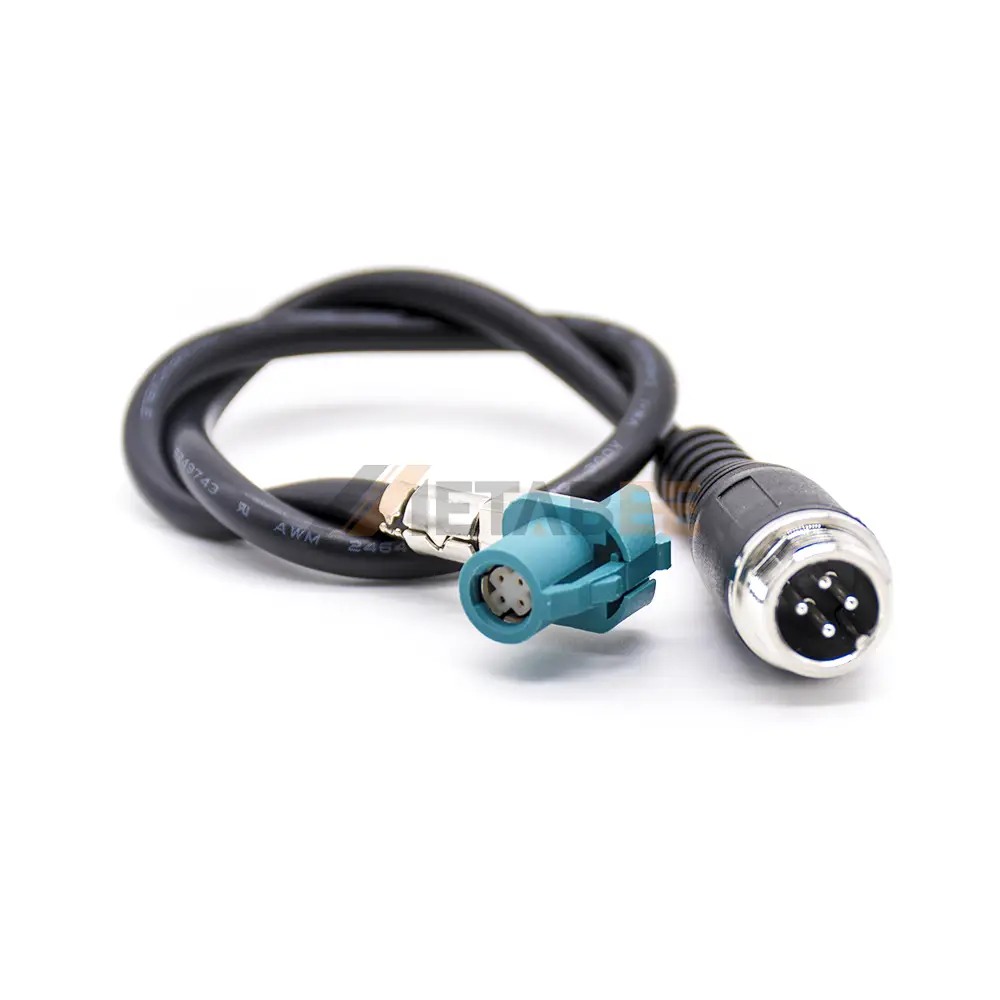

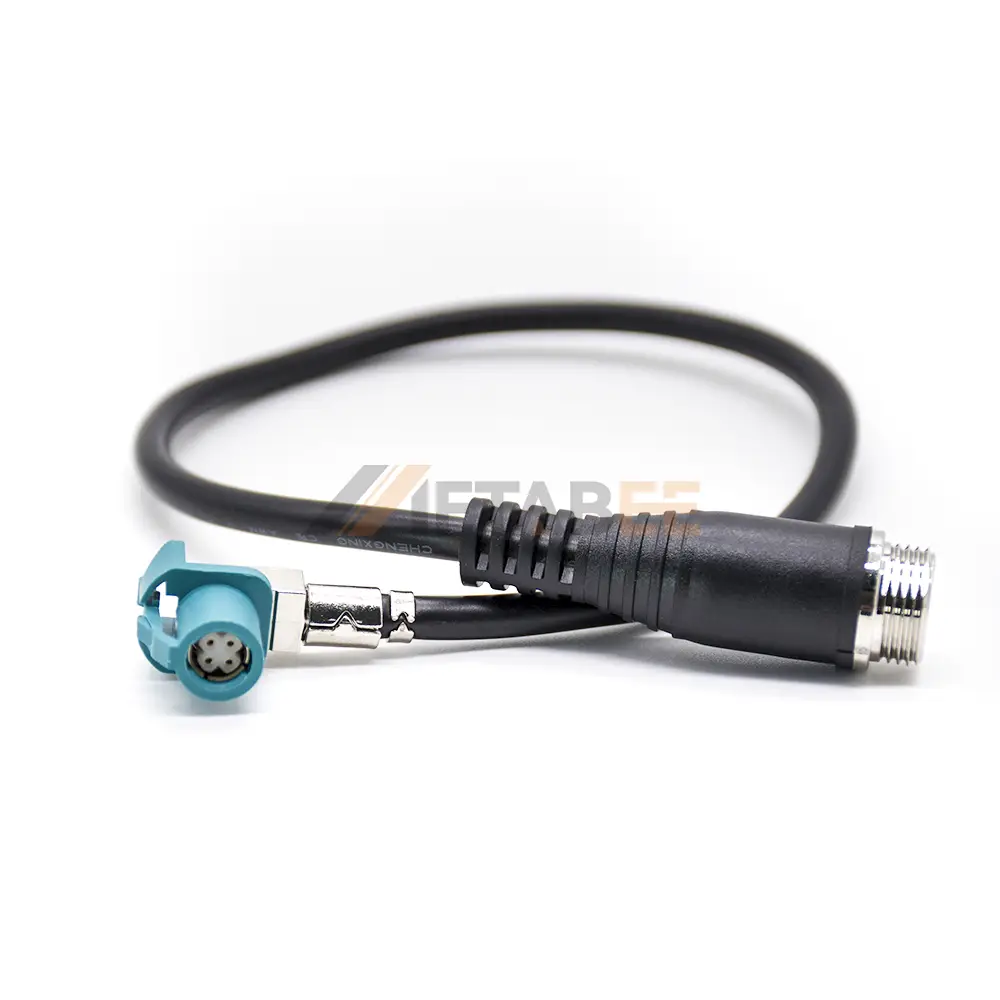

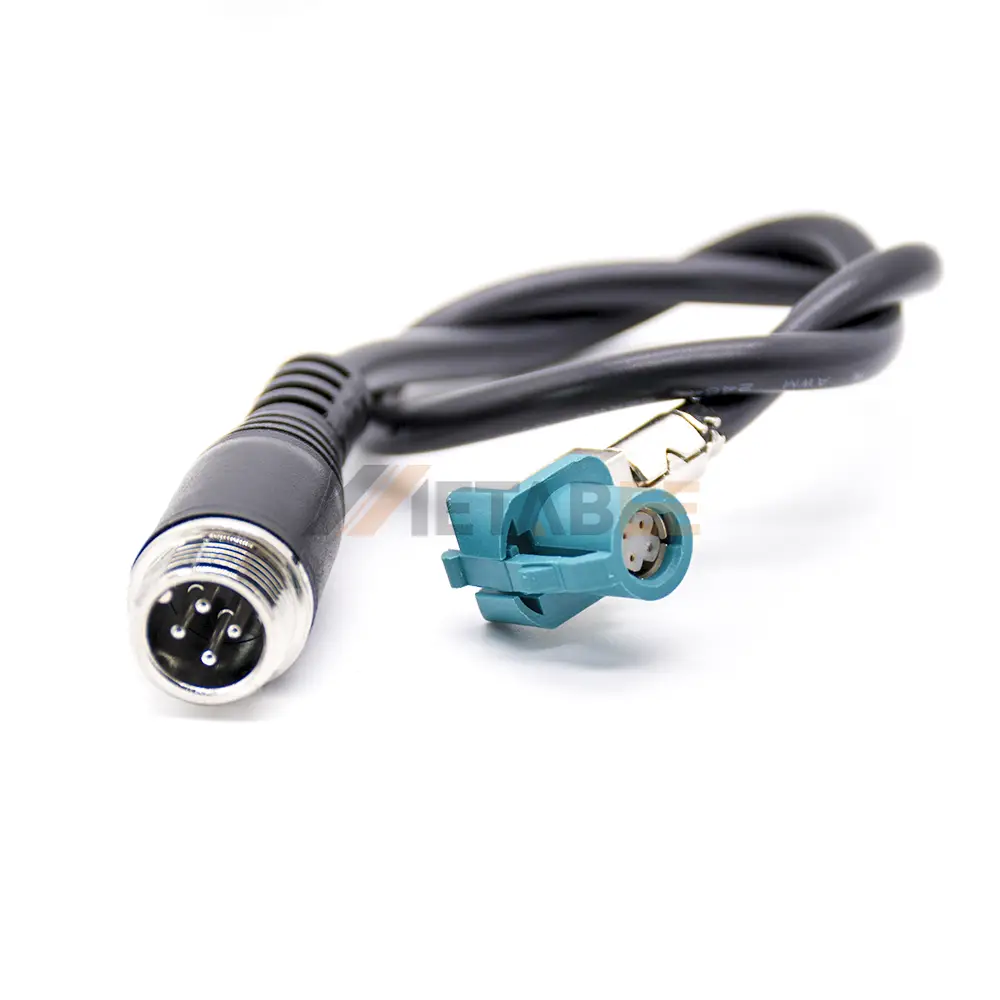

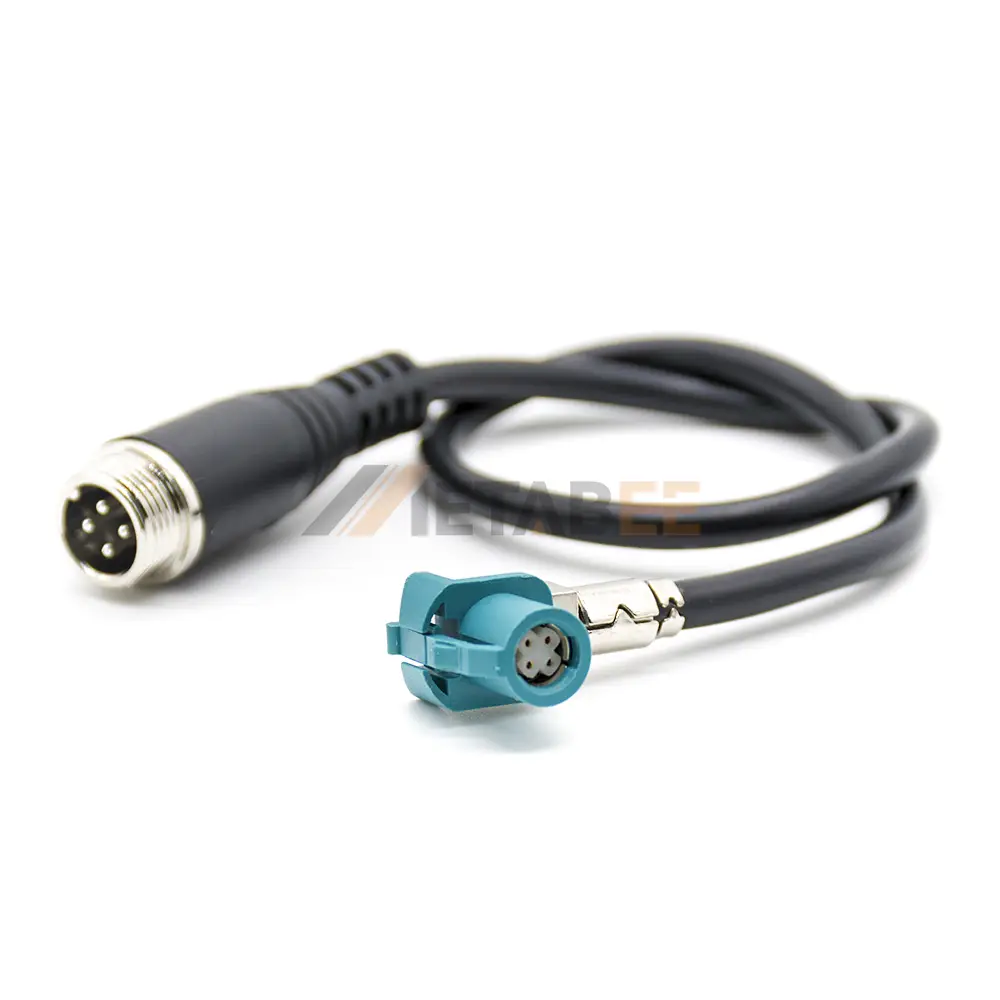

R/A HSD Z-Coded 4 Pin Jack to GX12 4 Pin Plug Cable
Introduction
This high-performance HSD cable is engineered for reliable signal transmission in demanding applications. It features a right-angle HSD Jack connector with a secure Z-coding key, ensuring perfect mating and preventing misconnection with incompatible interfaces. The straight GX12 4 Pin Plug offers a robust and compact circular connection, making this harness ideal for complex installations where space is limited and durability is essential.
Built to operate flawlessly in harsh environments, the cable maintains stable performance across an extensive temperature range from -40°C to 105°C. With a consistent 50-ohm contact impedance, it ensures minimal signal loss and reflection, guaranteeing data integrity for high-speed digital applications. This assembly provides a perfect blend of HSD’s high-speed data capabilities and the rugged reliability of a GX12 form factor.
Key Features:
- Reliable HSD to GX12 4-pin interconnection.
- Z-coded keying for secure and error-free mating.
- Right-angle HSD jack saves space in tight layouts.
- Stable 50-ohm impedance for signal integrity.
- Wide operating temperature range (-40°C to 105°C).
Main Specifications:
| Part No.: | 102-11-10010 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to GX12 | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | GX12 Connector | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Plug | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this R/A HSD Z-Coded 4 Pin Jack to GX12 4 Pin Plug Cable:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
