HSD Z-Coded 4 Pin Jack to GX12 4 Pin Plug Cable Assembly
Introduction

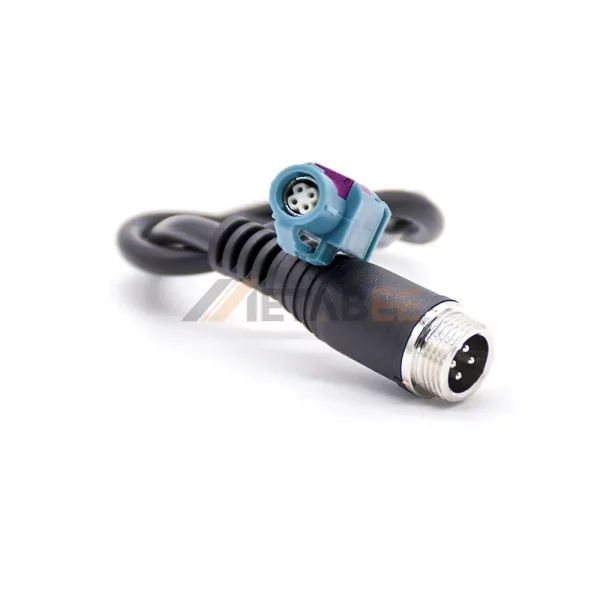

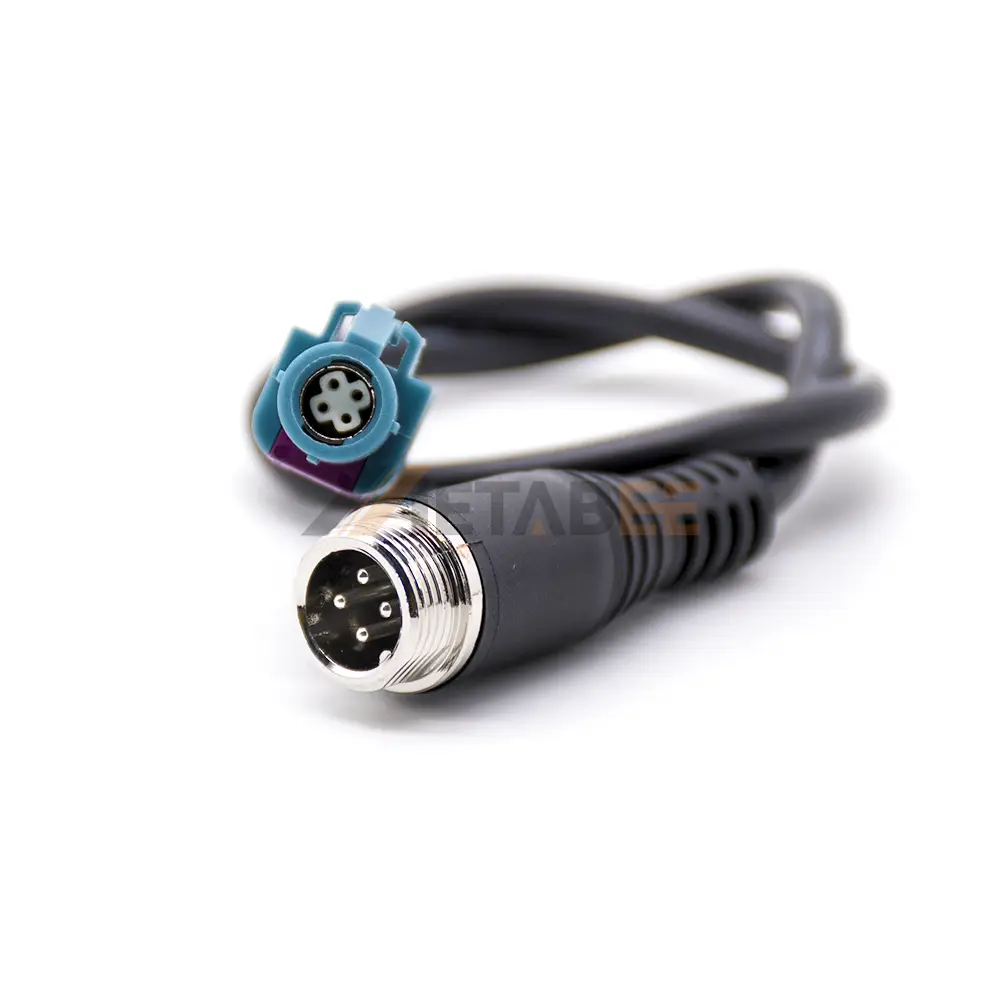

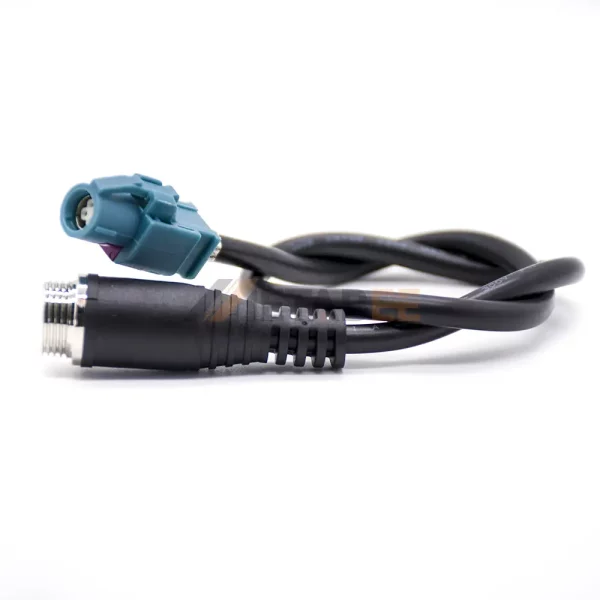

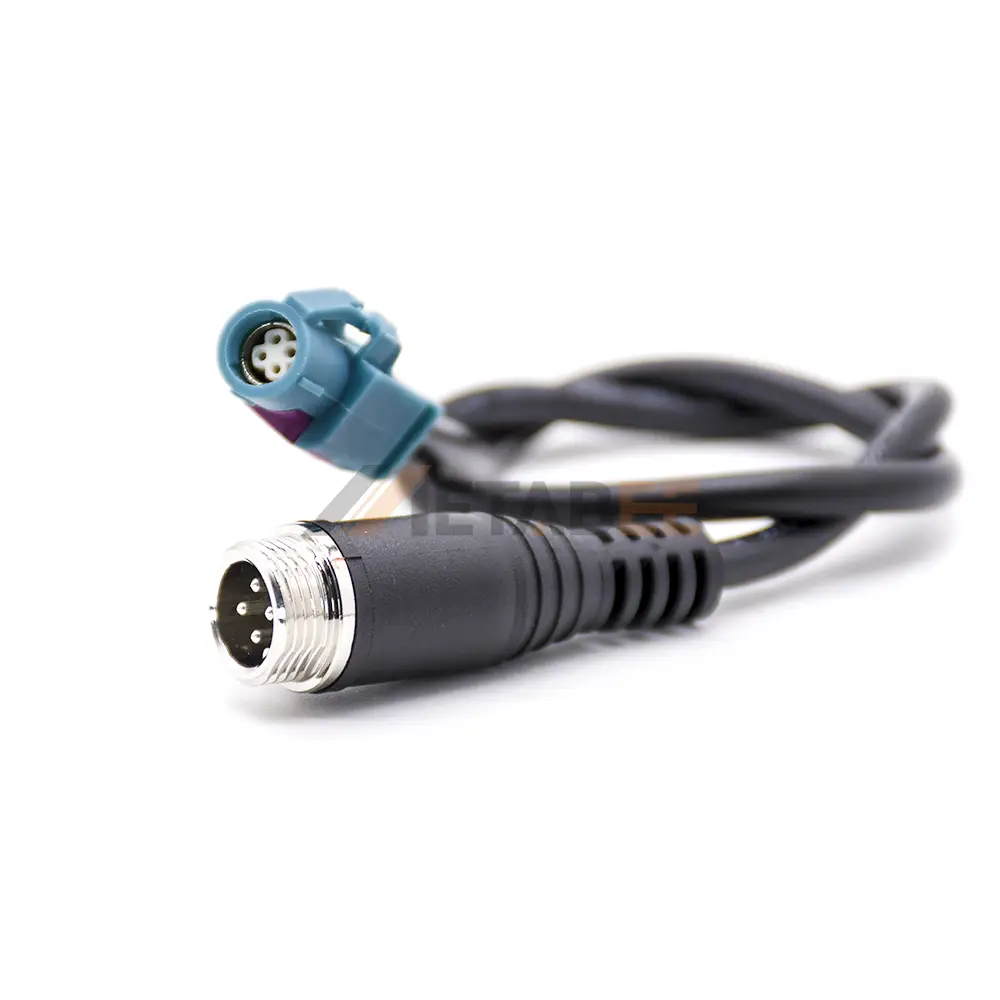

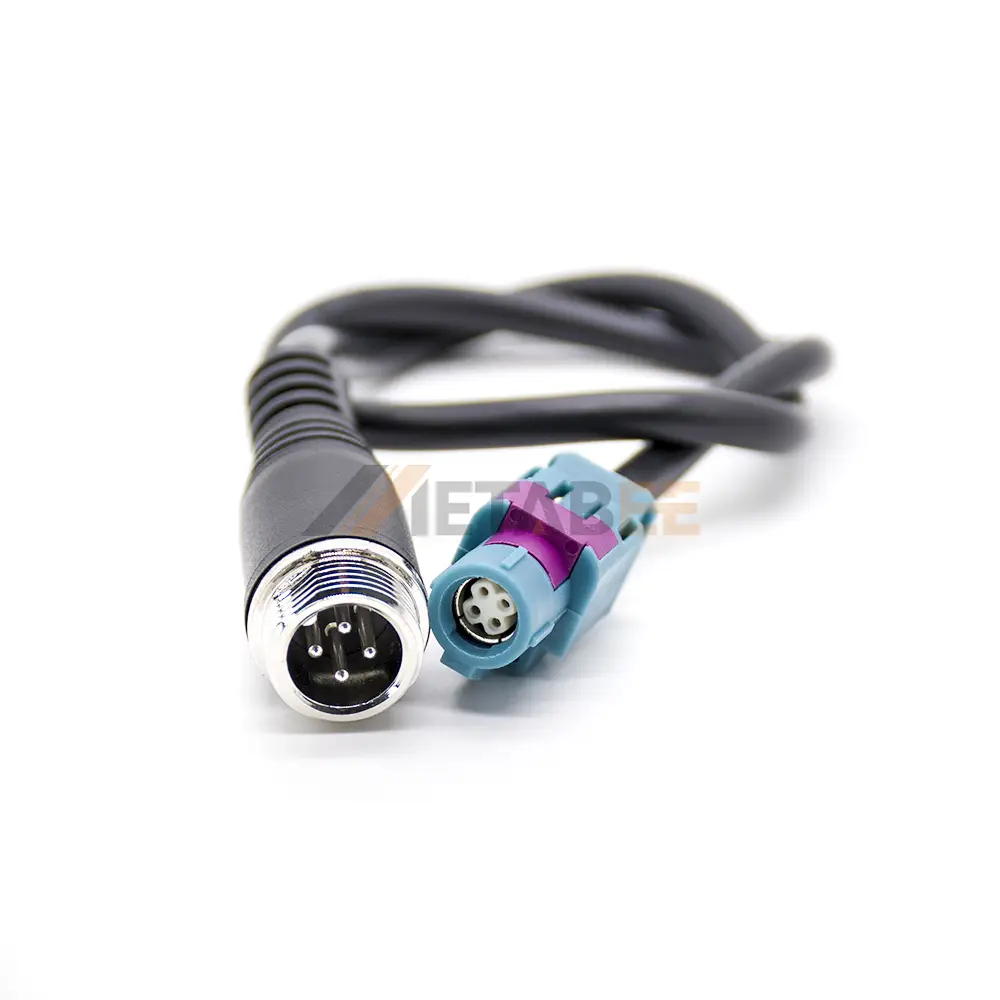

This HSD cable assembly provides a robust and reliable interconnection solution for demanding applications. It features a straight Z-coded HSD jack on one end, ensuring a secure, mistake-proof connection that prevents mating with incompatible A-coded or B-coded SDP interfaces. The opposite end terminates in a sturdy straight GX12 4-pin aviation-style plug, known for its threaded locking ring that guarantees a stable and vibration-resistant connection.
Engineered for performance, this cable assembly maintains a consistent 50-ohm impedance, making it ideal for high-speed data transmission and signal integrity in sensitive electronic systems. Built to operate in extreme conditions, it offers an impressive operating temperature range from -40°C to +105°C, ensuring reliable performance in both frigid and high-heat environments.
Key Features:
- Secure Z-Coded Interface: Prevents incorrect mating with other HSD connector types.
- Robust GX12 Connector: Features a threaded coupling nut for a stable, locked connection.
- 50-Ohm Impedance: Ensures optimal signal integrity for data transmission.
- Wide Temperature Range: Reliable performance from -40°C to +105°C.
- 4-Pin Configuration: Straight connectors for straightforward installation and routing.
Main Specifications:
| Part No.: | 102-11-10009 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to GX12 | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | GX12 Connector | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Plug | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-Coded 4 Pin Jack to GX12 4 Pin Plug Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
