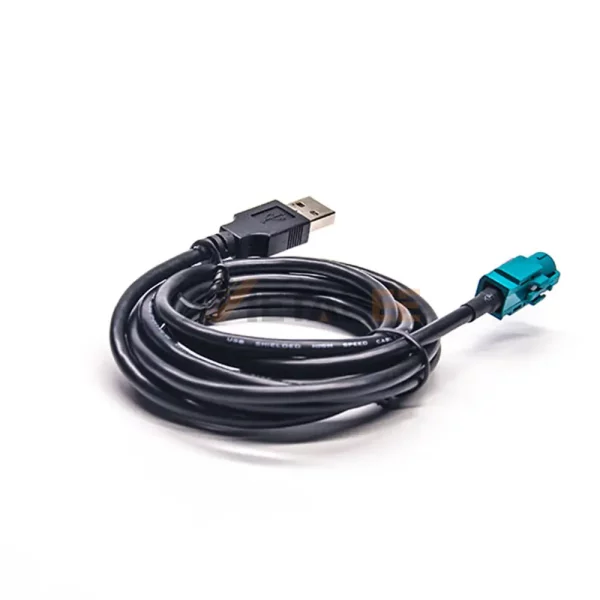

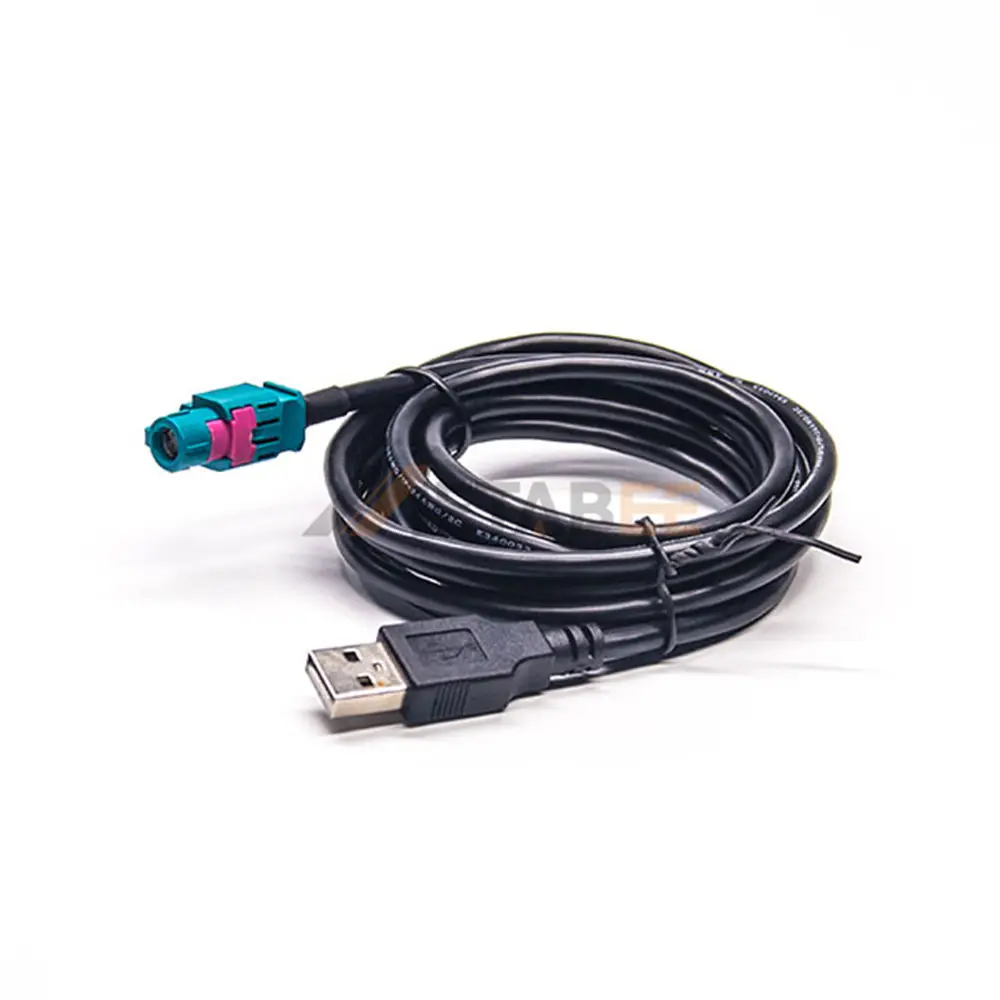

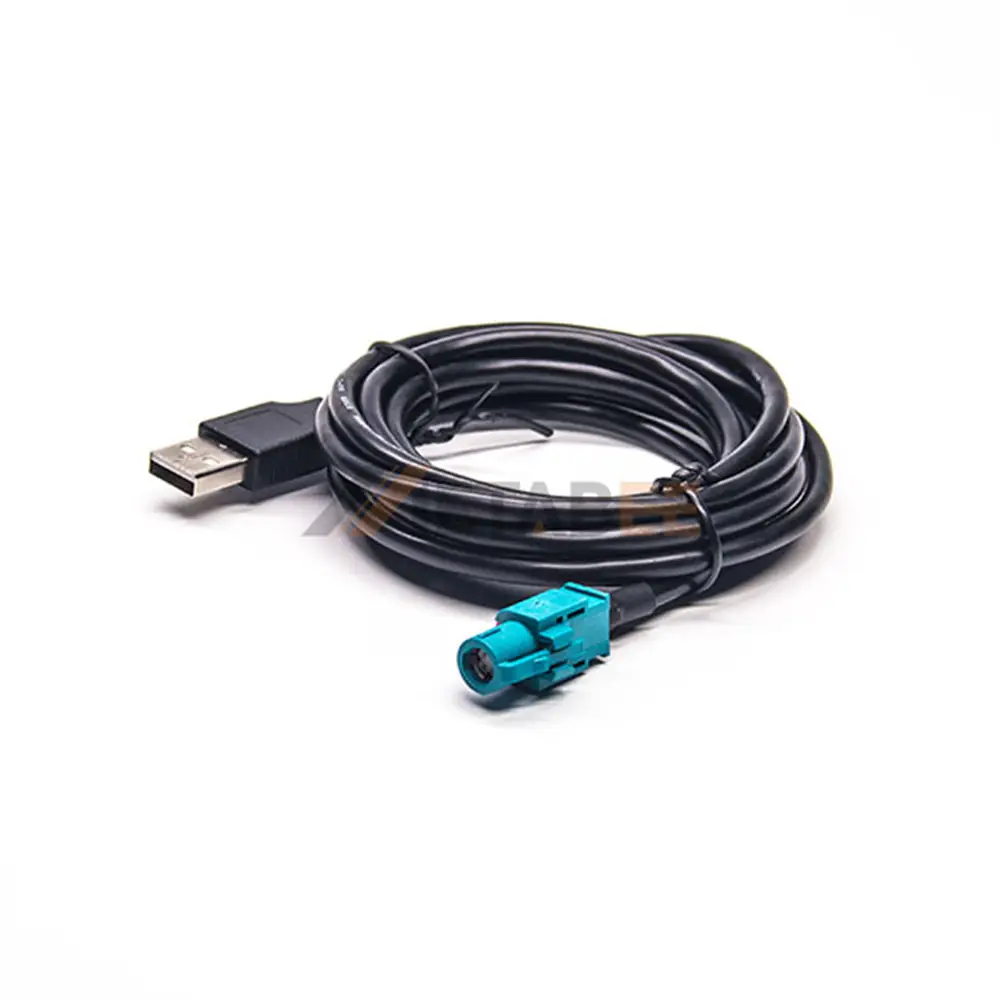

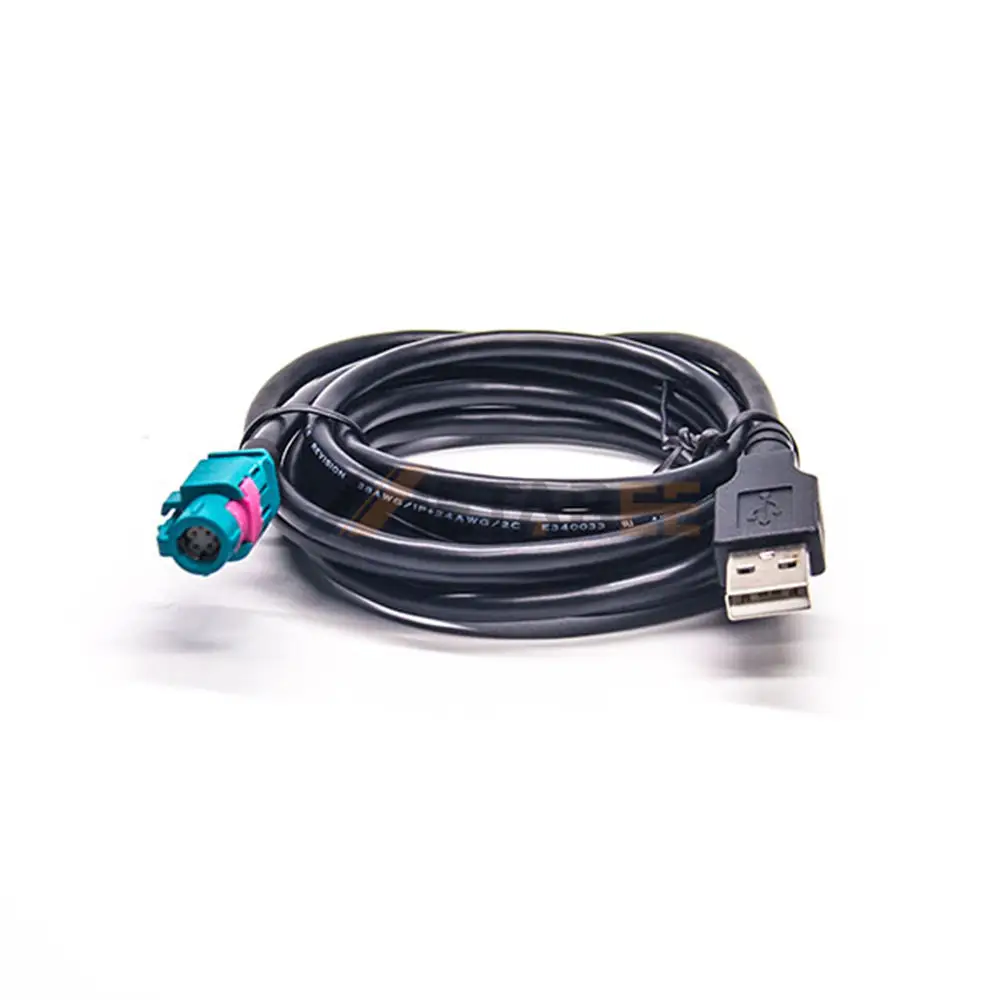

HSD Z-Coded 4 Pin Jack to USB Plug Cable Assembly
Introduction
The HSD cable assembly is designed for reliable high-speed data transmission in automotive, industrial, and multimedia systems. Featuring a straight HSD jack with Z-coding and a straight USB plug, this assembly ensures secure connectivity between HSD-based devices and USB interfaces. With a 50-ohm impedance, it delivers stable signal integrity even in demanding environments.
Engineered for durability, this cable supports a wide operating temperature range from -40°C to +105°C, making it suitable for both in-vehicle and industrial applications. Its compact design simplifies integration into space-constrained systems while maintaining consistent performance for data, audio, and video transmission.
Key Features:
- HSD Z-Coded 4 Pin Jack to Straight USB Plug
- 50-ohm impedance for reliable signal performance
- Wide operating temperature: -40°C to +105°C
- High-speed data transmission for automotive and industrial use
- Straight design for easy installation and secure connection
Main Specifications:
| Part No.: | 102-11-10017 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to USB | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | USB Connector | |
| Connector 2 – Gender: | Plug | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-Coded 4 Pin Jack to USB Plug Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
In-Vehicle Infotainment Systems;
Advanced Driver-Assistance Systems (ADAS);
Automotive Camera Systems;
GPS and Telematics;
Robotics and Industrial Automation;
Medical Equipment;
Test and Measurement Systems;
Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
