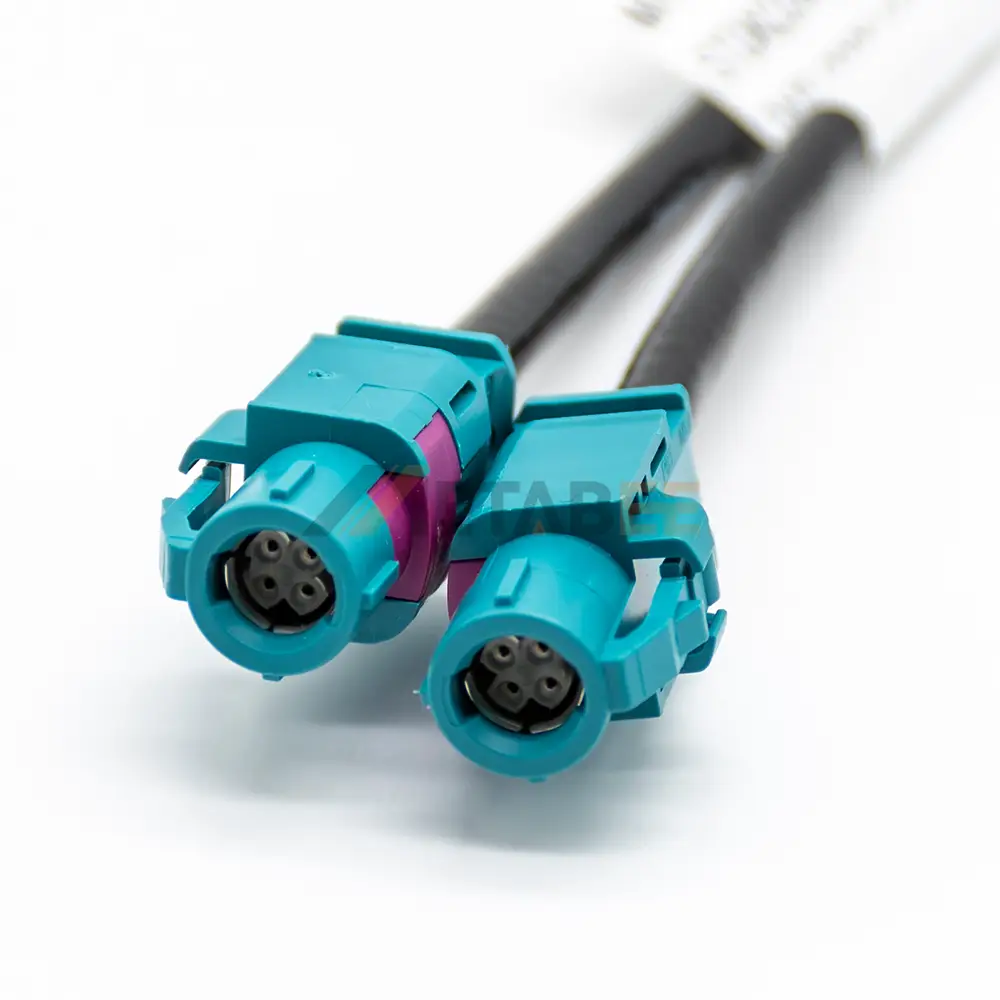

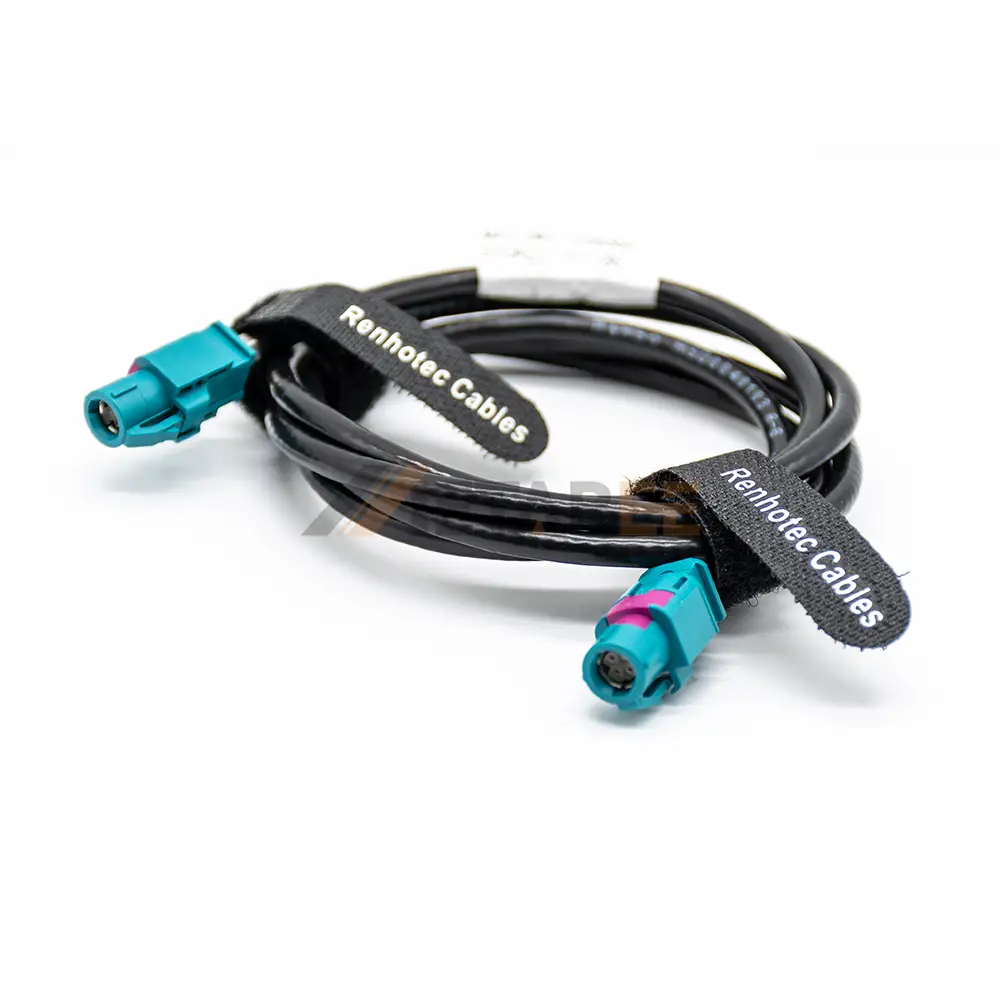

HSD Z-Coded 4 Pin Jack to Jack Connector Cable Assembly
Introduction
The HSD cable assembly is engineered for high-speed data transmission in demanding automotive and industrial environments. Featuring dual straight HSD jack connectors with Z-coding, this assembly ensures secure mating, reliable connectivity, and superior EMI shielding performance. Its 50-ohm impedance supports stable signal integrity, making it ideal for LVDS, Ethernet, and multimedia applications. This HSD to HSD cable is a robust solution, meeting the stringent requirements of modern automotive connectivity. Built to withstand harsh conditions, this cable assembly operates effectively across a wide temperature range of -40°C to +105°C.
Key Features:
- Z-coded 4-pin HSD jack-to-jack straight connectors
- 50Ω impedance for stable high-speed data transfer
- Wide operating temperature: -40°C to +105°C
- Excellent EMI shielding and low crosstalk
- Suitable for LVDS, Ethernet, ADAS, and infotainment systems
Main Specifications:
| Part No.: | 102-11-100026 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | Z-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-Coded 4 Pin Jack to Jack Connector Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
