HSD Z-Coded 4 Pin Plug to RJ45 Plug Cable Assembly
Introduction

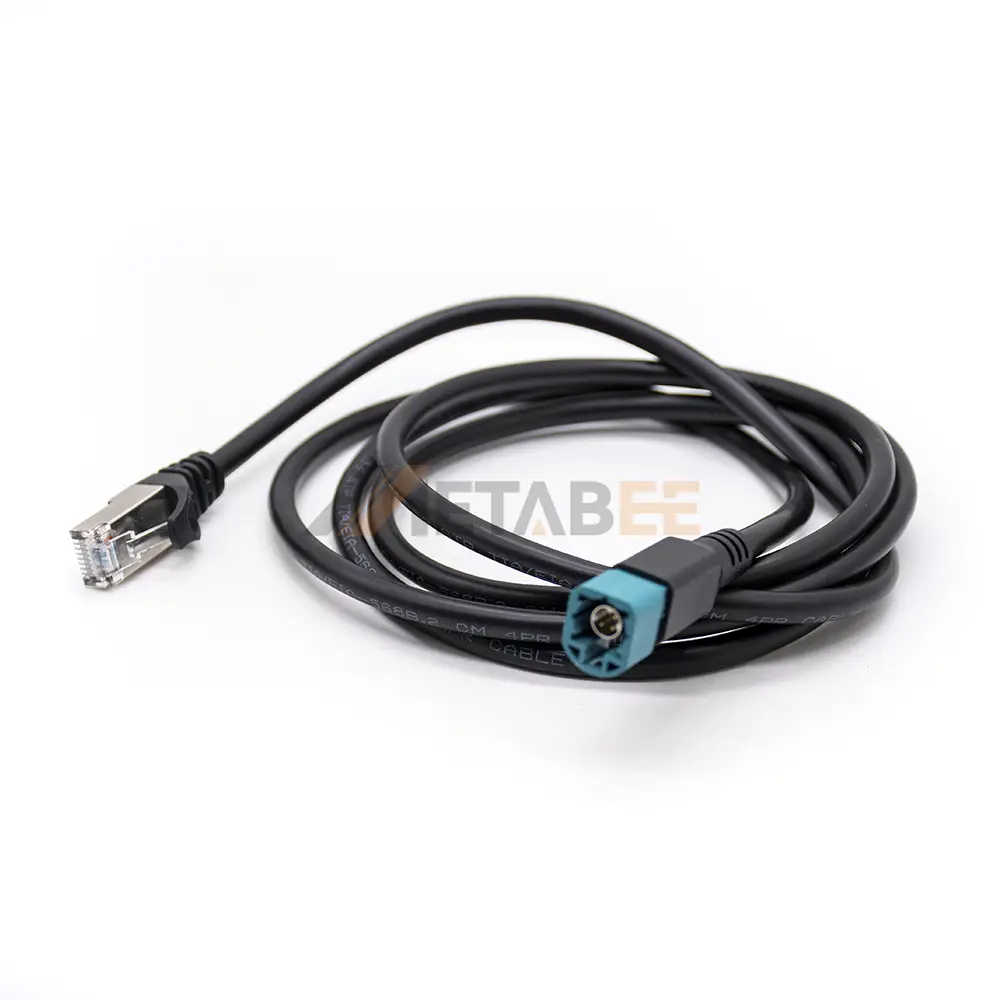

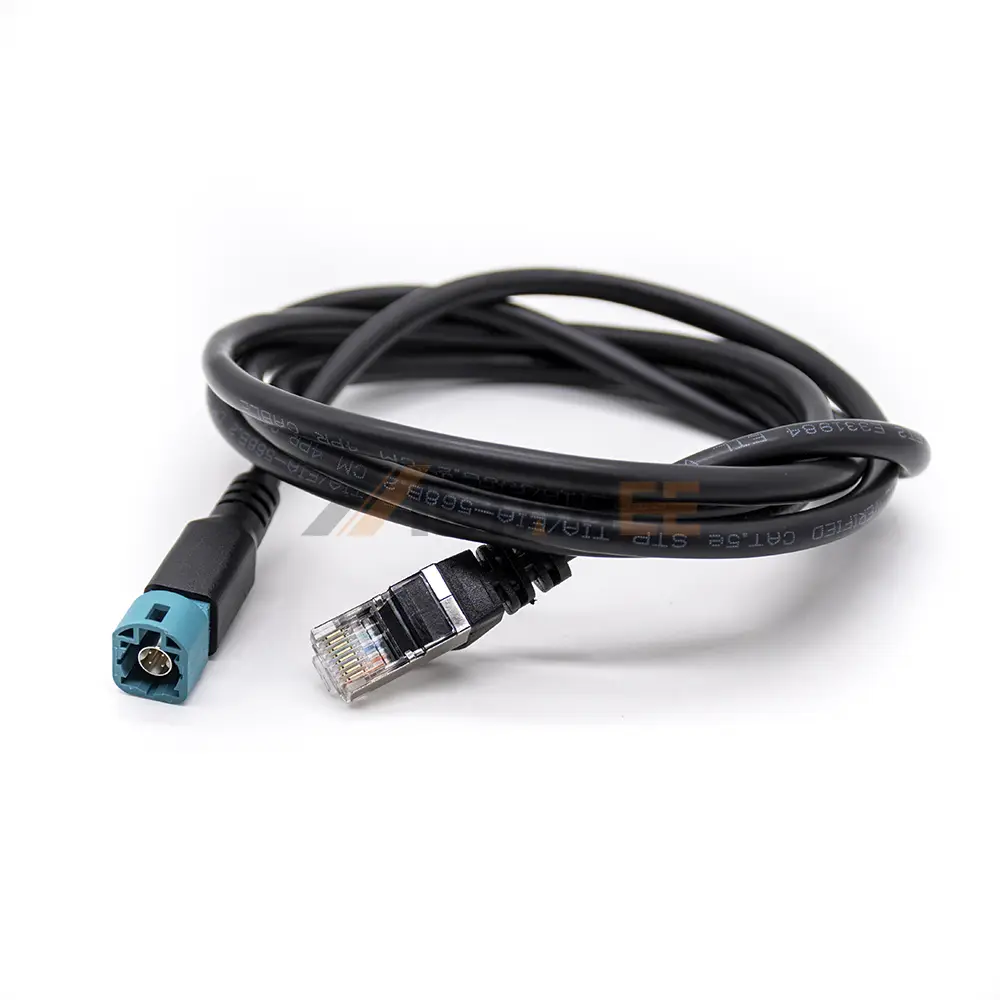

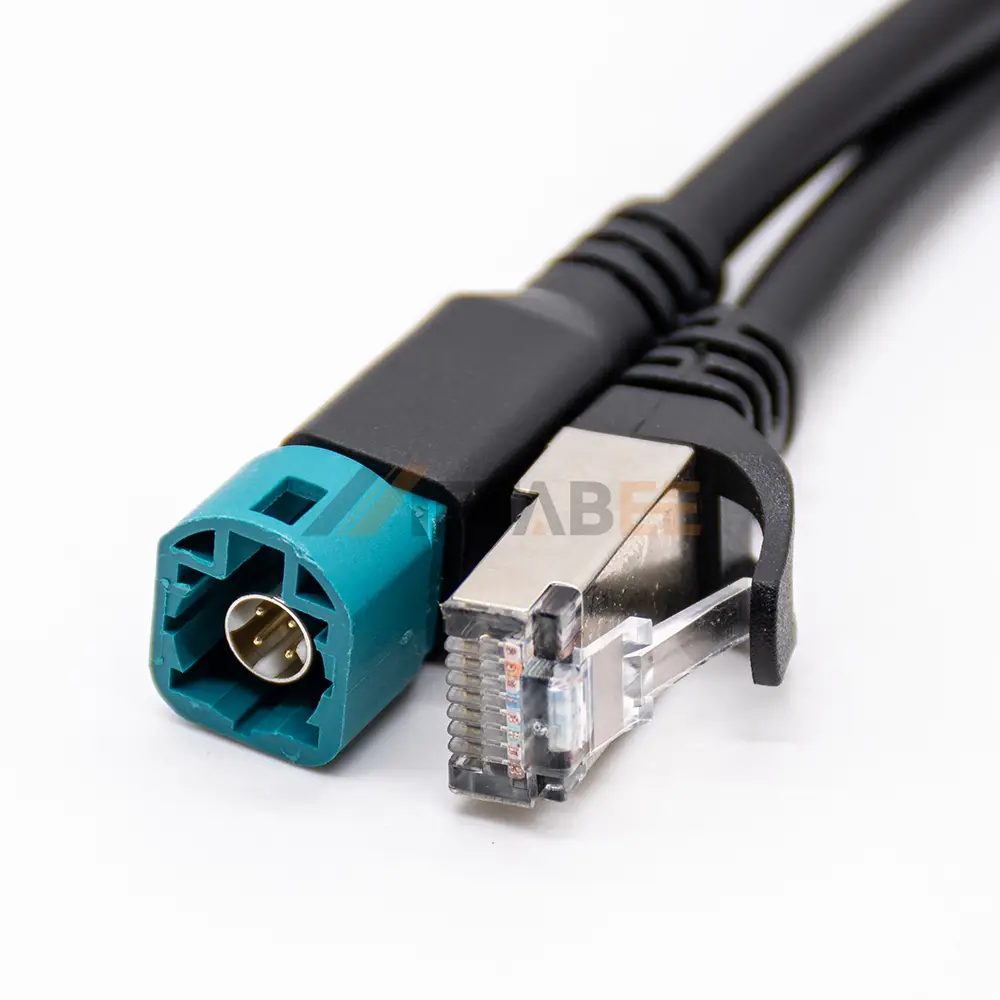

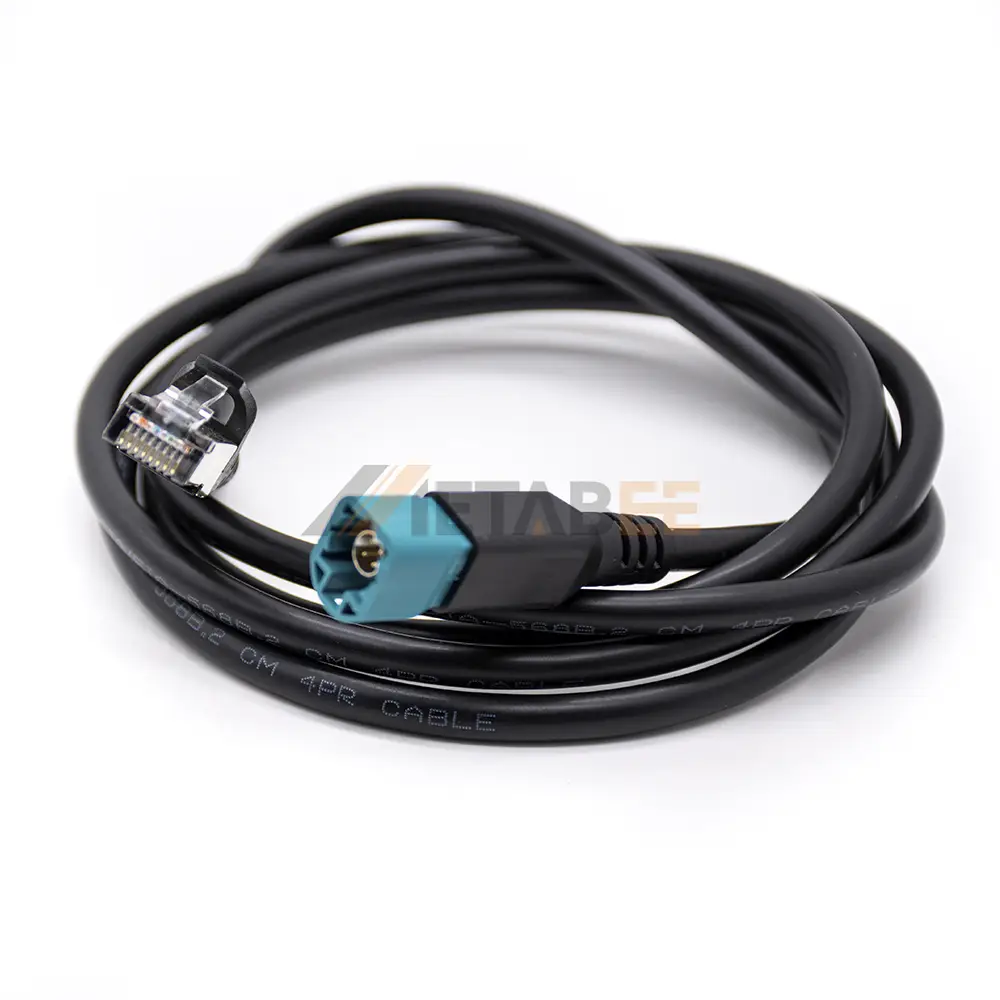

This HSD cable assembly is specifically engineered to meet the rigorous demands of high-speed data transmission in automotive and industrial applications. It features a robust HSD Z-Coded 4-Pin straight plug on one end and a standard RJ45 straight plug on the other, creating a reliable link for your data-critical systems. The Z-coding ensures correct and secure mating, preventing accidental disconnections in demanding environments.
Designed for optimal performance, this cable assembly boasts a low contact impedance of just 50 ohms, ensuring minimal signal loss and maximum data integrity. Its durable construction allows it to operate reliably in a wide temperature range, from -40°C to 105°C.
Key Features:
- HSD Z-Coded 4-Pin Plug: Ensures secure, error-free connections.
- RJ45 Plug: Provides a standard interface for seamless integration.
- Low Impedance: 50 ohms for high-speed data transmission with minimal signal loss.
- Wide Temperature Range: Operates reliably from -40°C to 105°C.
- Durable Construction: Built for long-term reliability in demanding applications.
Main Specifications:
| Part No.: | 102-11-10001 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to RJ45 | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Plug | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | RJ45 Connector | |
| Connector 2 – Gender: | Plug | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-Coded 4 Pin Plug to RJ45 Plug Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
In-Vehicle Infotainment Systems;
Advanced Driver-Assistance Systems (ADAS);
Automotive Camera Systems;
GPS and Telematics;
Robotics and Industrial Automation;
Medical Equipment;
Test and Measurement Systems;
Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
