Introduction:
Combined connectivity is the hallmark of the Stacked RJ45 Modular Jack, which pairs a single Ethernet port with one USB 2.0 interface. Reliability for 10/100 Base-T data transmission remains constant throughout the commercial 0C to 70C operating range. A robust nickel-plated brass shield encapsulates the PA66 housing to block electromagnetic interference effectively. Visual activity feedback relies on built-in green and yellow LED indicators on the right-angle face. Secure PCB integration depends on through hole soldering and gold-plated copper alloy contacts that strictly maintain resistance below 30 miliohms. This versatile stacked rj45 modular jack optimizes space in high-density board designs. Typical applications include industrial computer systems, network switches, and server motherboards.
Key Features
- 10/100 Base-T Speed: Delivers reliable Fast Ethernet data transmission rates.
- Hybrid Port Integration: Combines one RJ45 and one USB 2.0 port.
- Full Brass Shielding: Blocks severe electromagnetic interference for signals.
- Integrated Status LEDs: Built-in green/yellow indicators track precise activity.
- Secure THT Mounting: Through hole design ensures stable mechanical retention.
Main Specifications:
General Information:
| Product No.: | MTJ-USB-88JX1-FS-PG-LH-M41C | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Number of USB Ports: | Single USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | RJ: 500 Mohms Min USB: 1000 Mohms Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

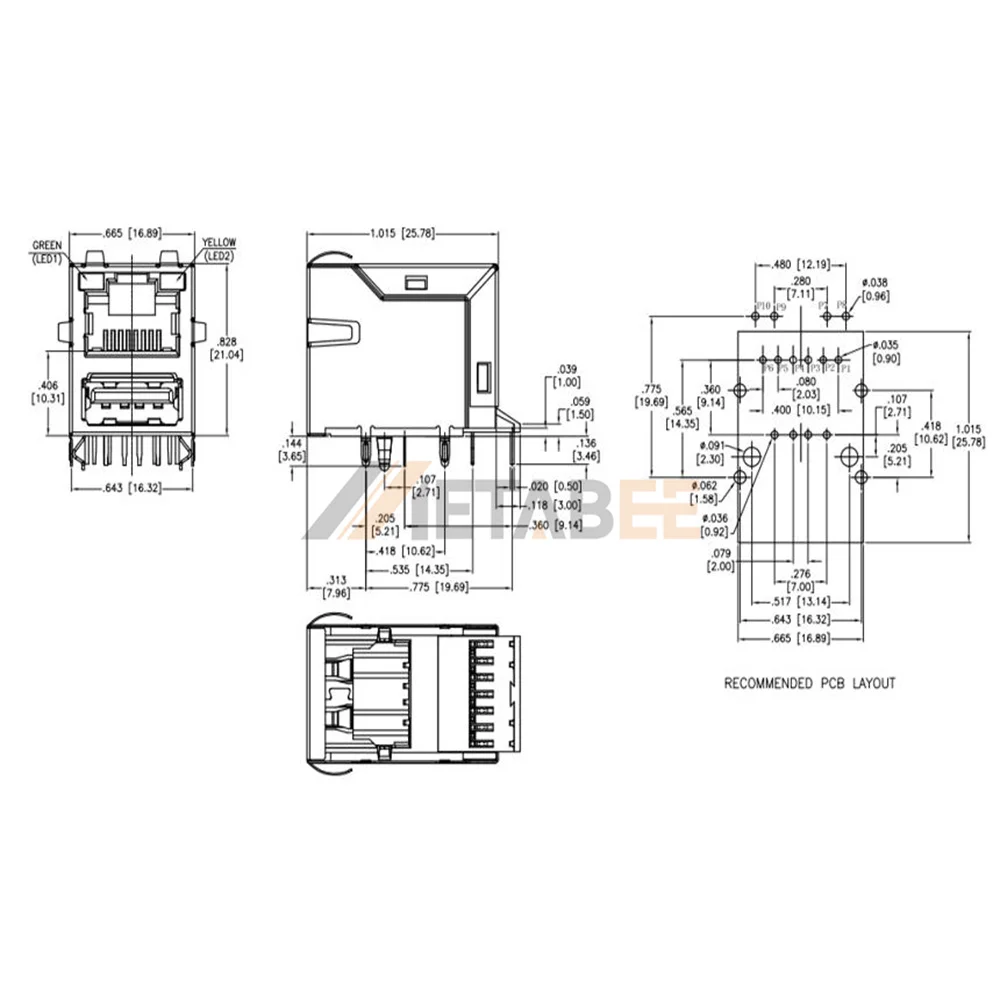

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
