Introduction:
High-speed networking and peripheral access are combined in the RJ45 USB Connector Combo Jack, which houses one Gigabit Ethernet port and two USB 2.0 interfaces. Reliable 1000 Base-T data rates ensure high-performance connectivity for demanding industrial environments. Extreme industrial temperatures from -40C to +85C pose no threat to the durable black PBT housing. A robust SUS304 stainless steel shield encloses the component to block electromagnetic interference effectively during operation. Visual link updates rely on integrated green and green/yellow LED indicators. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms in this rj45 usb connector combo jack. Servers, industrial pc systems, and network routers frequently employ this hybrid THT socket.
Key Features
- Gigabit Performance: Supports high-speed 1000 Base-T Ethernet data transmission.
- Triple Port Integration: Merges one RJ45 and two USB ports.
- Industrial Temperature Range: Operates reliably from -40C up to +85C.
- SUS304 Stainless Shielding: Blocks severe electromagnetic interference for signals.
- Low Resistance Contacts: Gold plating ensures strictly under 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJ-DUSB3-88JX1-FS-L35-M267C | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 3×1 Port | |
| Number of USB Ports: | Dual USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 Mohms Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | RJ: Black USB: Blue |
|
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | RJ: SUS304 USB: Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

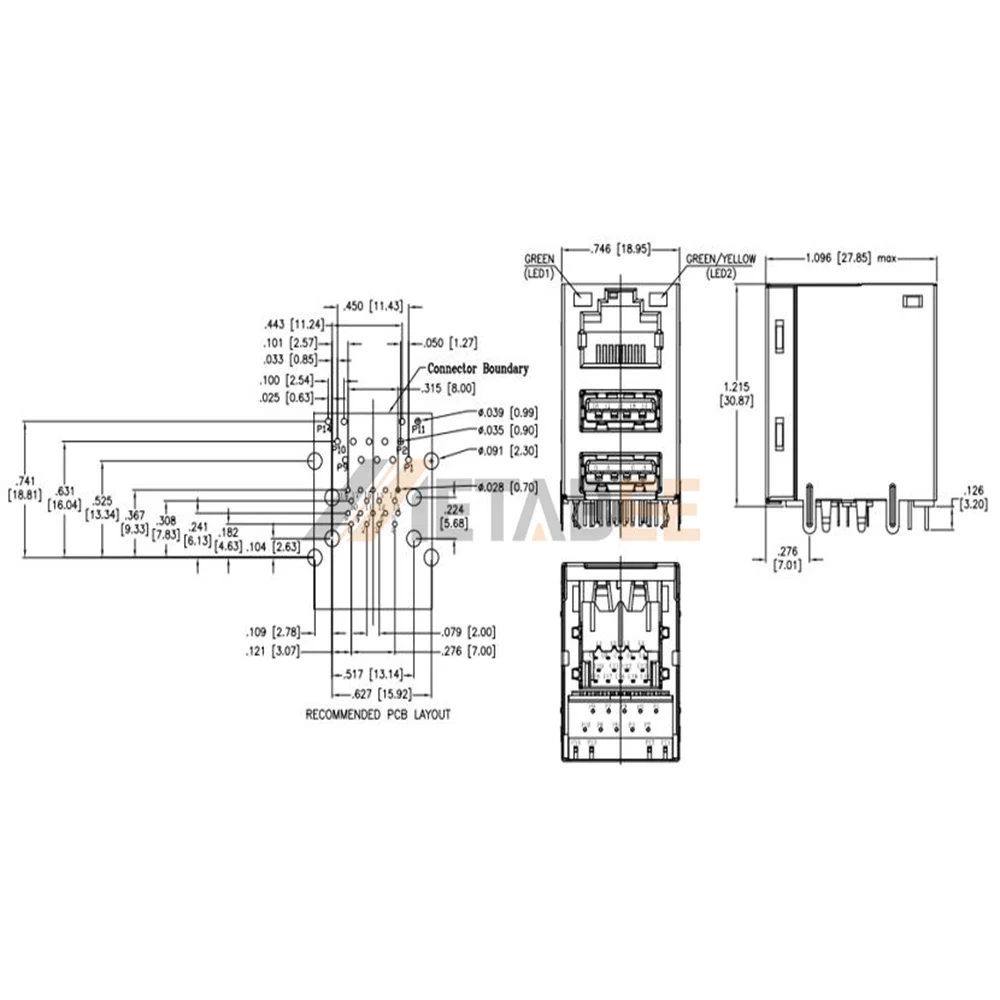

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
