Introduction:

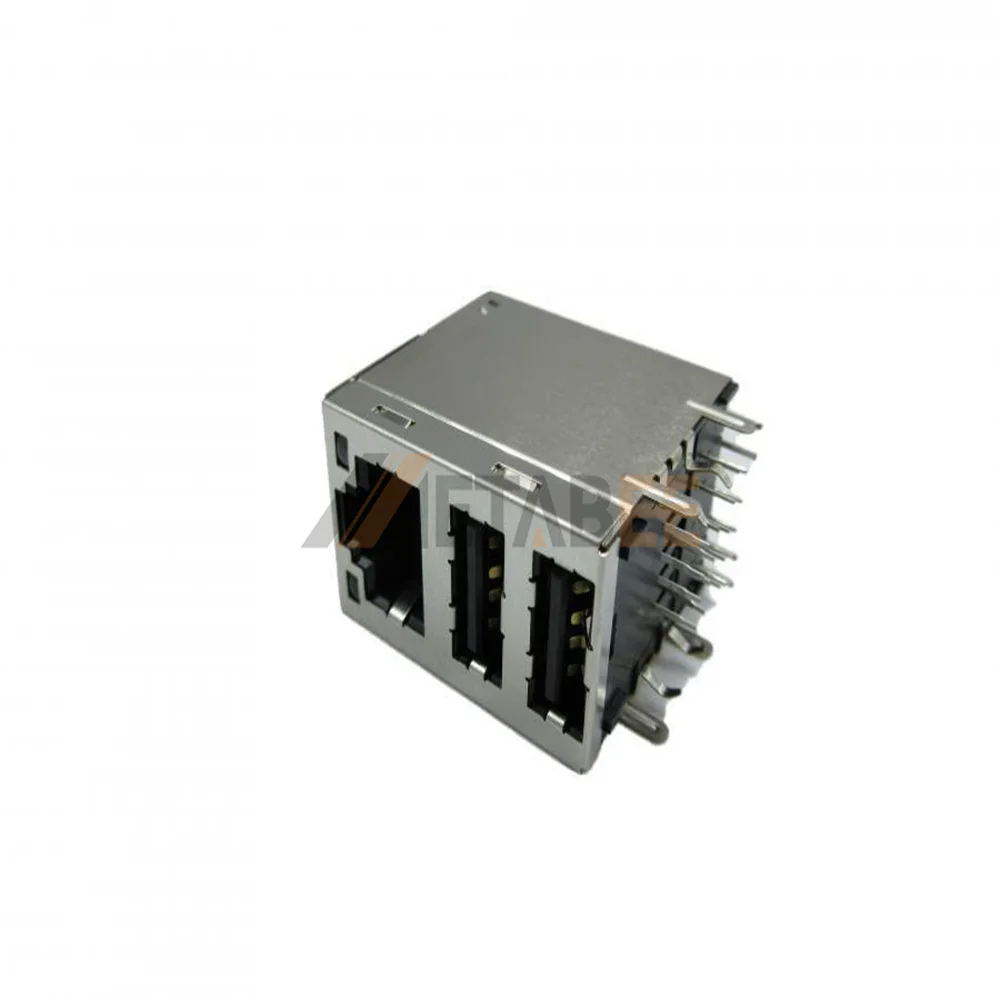

This product is a versatile 3×1 hybrid interface that combines a Gigabit Ethernet port and two USB 2.0 ports into one module. Reliable data transmission at 1G Base-T speeds provides exceptional network performance for connected equipment. Consistent operation is maintained throughout the industrial -40C ~ +85C temperature range for extreme environments. To block electromagnetic interference effectively, a robust nickel-plated stainless steel shield encapsulates the black PBT housing. Visual status feedback relies on built-in green and green/yellow LED indicators positioned in the right-angle profile. High-quality gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms in this RJ45 Magnetics Jack. Secure PCB retention depends on the through hole termination method. Common applications include server workstations, industrial computing, and network switches.
Key Features
- Gigabit Performance: Supports reliable high-speed 1G Base-T Ethernet transmission.
- Hybrid Integration: Merges one RJ45 and dual USB 2.0 ports.
- Industrial Temperature: Operates flawlessly from -40C up to +85C.
- Full Stainless Shielding: Blocks severe electromagnetic interference for signals.
- Stable THT Mounting: Through hole design ensures secure PCB retention.
Main Specifications:
General Information:
| Product No.: | MTJ-DUSB-88JX1-FS-RL35-M86C | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 3×1 Port | |
| Number of USB Ports: | Dual USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
