Introduction:
The magnetics POE RJ45 and single USB stacked combo jack is a hybrid network interface merging one Ethernet port and one USB 2.0 interface into a single module. Reliable 10/100 Base-T data transmission speeds are supported flawlessly for consistent networking performance. Integrated POE functionality facilitates simultaneous power and data delivery through the network interface. Reliable operation is maintained throughout the commercial 0C ~ 70C temperature range without performance loss. A robust nickel-plated stainless steel shield encloses the black PBT insulator to reject electromagnetic interference effectively. Visual link activity relies on built-in green and yellow LED indicators positioned in the right-angle face. Gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms while through hole termination secures the component to the PCB. Modern set-top boxes, network-attached storage systems, and industrial controllers frequently utilize this specialized socket.
Key Features
- POE Networking Speed: Supports reliable 10/100 Base-T data and power.
- Hybrid Port Integration: Merges one RJ45 and one USB 2.0 port.
- Stainless Steel Shielding: Nickel-plated housing blocks severe EMI for signals.
- Integrated Status LEDs: Built-in green and yellow indicators monitor activity.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 miliohms.

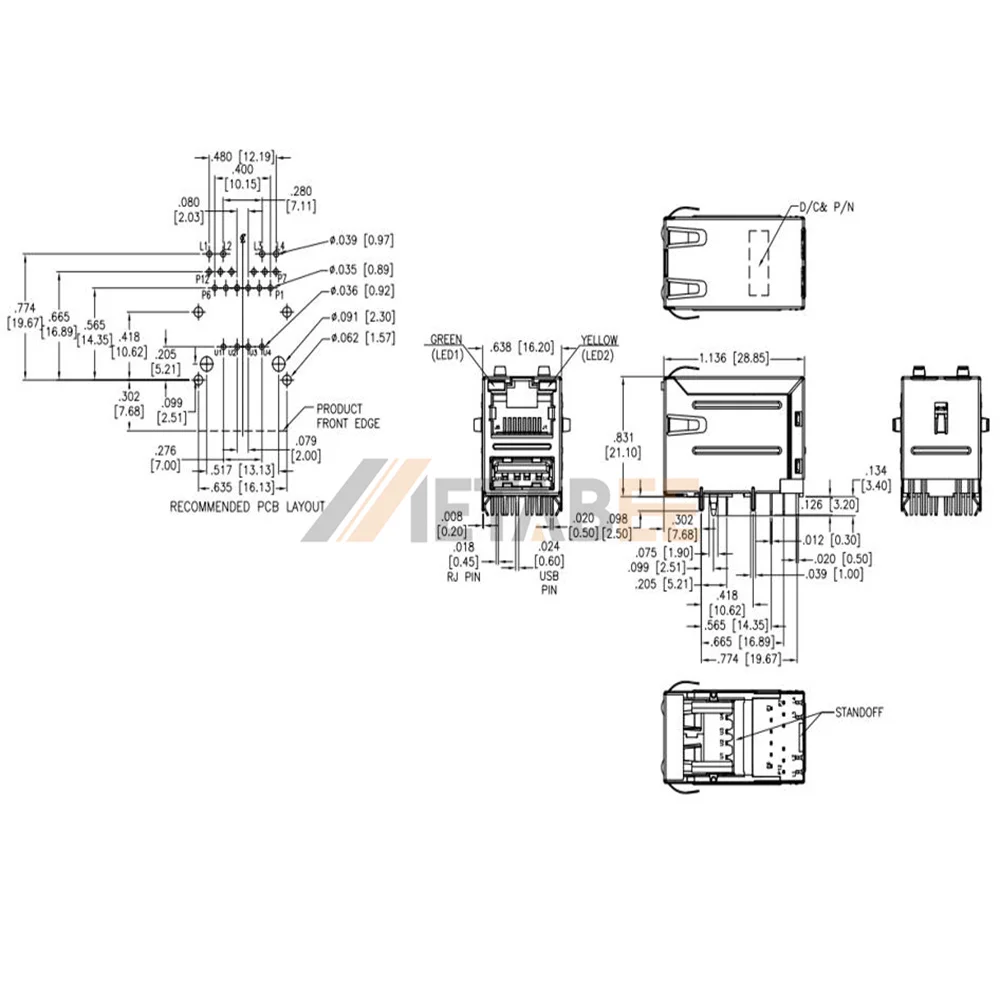

Main Specifications:
General Information:
| Product No.: | MTJ-USB-88JX1-FS-PG-LH-M49 | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Number of USB Ports: | Single USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | RJ: 500 Mohms Min USB: 1000 Mohms Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | RJ: Phosphor Bronze USB: Brass |
|
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
