Introduction:
Integrated network and power delivery characterize the PoE Stacked RJ45 Connector and Single USB Port, which merges one Ethernet interface and one USB 2.0 port. Reliable 10/100 Base-T speeds support consistent data transmission across the standard 0C ~ 70C temperature range. Protection from electromagnetic interference is provided by a pre-soldered stainless steel shield enclosing the thermoplastic housing. Secure board alignment relies on the right-angle through hole configuration. Built-in green, orange, and yellow LED indicators track link activity for this poe stacked rj45 connector and single usb port. Gold-plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms. This module is ideal for digital media players, set-top boxes, and network storage systems.
Key Features
- PoE Integration: Facilitates simultaneous power and 10/100 Base-T data delivery.
- Hybrid 2×1 Port: Combines RJ45 and USB 2.0 into one module.
- Full Metal Shielding: Pre-soldered stainless steel blocks severe electromagnetic interference.
- Visual Link Indicators: Multi-color LEDs track network and power activity.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJ-USB-88JX1-FS-PG-L29-M49Y | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Number of USB Ports: | Single USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green/Orange, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500 Mohms Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

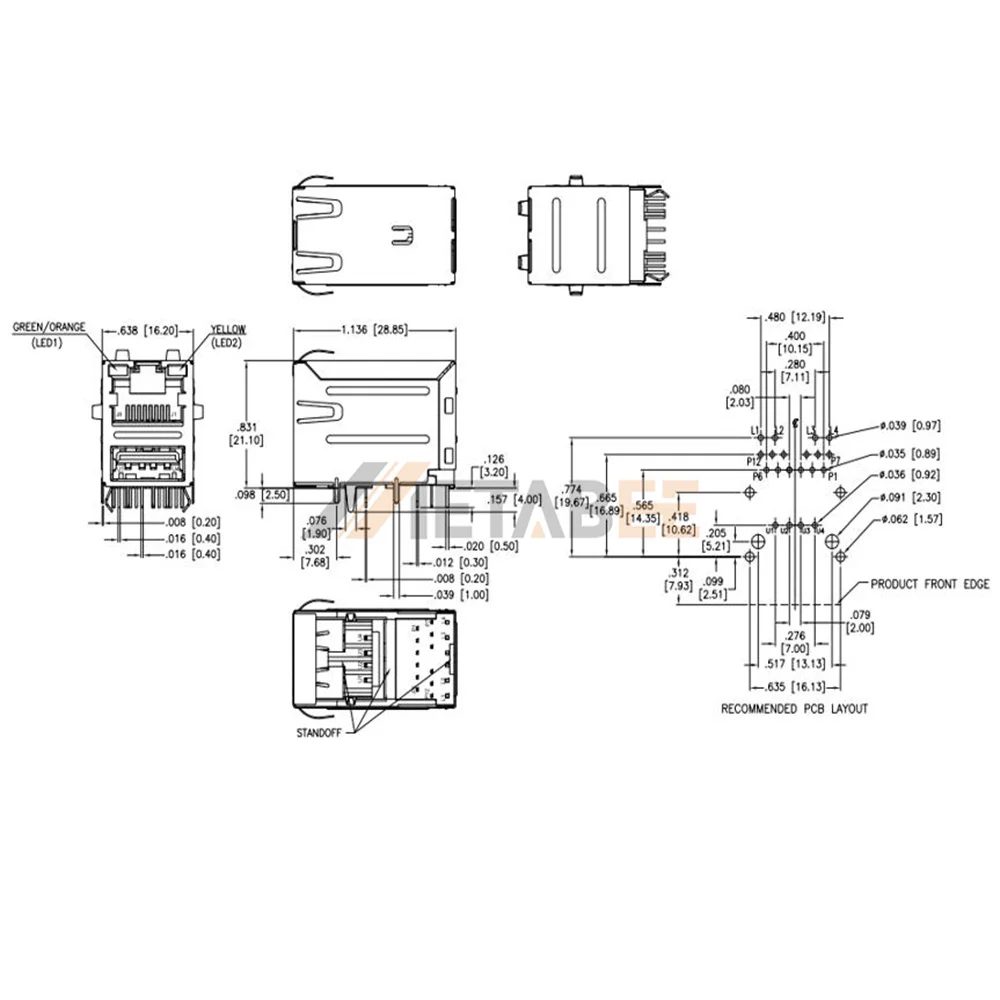

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
