Introduction:
Integrating high-speed data and network ports characterizes the rj45 usb3.0 combo stacked jack, which merges one Ethernet interface and one USB 3.0 Type A port. USB 3.0 SuperSpeed performance ensures rapid peripheral data transfer within the blue PBT interface. Networking functions through the 8P8C port utilize a black PA66 insulator to maintain structural integrity. Full brass shielding with a nickel plated finish provides essential protection against electromagnetic interference. Successful operation is sustained throughout the commercial 0C ~ 70C temperature range without signal loss. Furthermore, gold plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms. Through hole right angle mounting allows for secure PCB termination and space optimization. Common applications for this module include industrial computing boards, communication routers, and automated control systems.
Key Features
- USB 3.0 Integration: Facilitates SuperSpeed data transfer and peripheral connections.
- Full Brass Shielding: Nickel plated housing blocks severe electromagnetic interference.
- Stable THT Mounting: Through hole design ensures secure mechanical retention.
- Durable Housing Materials: PA66 and PBT insulators withstand thermal stress.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJ-USB3-88JX1-FS-PG | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Number of USB Ports: | Single USB Port | |
| USB Type: | Type A (USB 3.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 Mohms Min |
Materials and Plating:
| Insulator Material: | RJ: PA66 USB: PBT |
|
| Insulator Color: | RJ: Black USB: Blue |
|
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

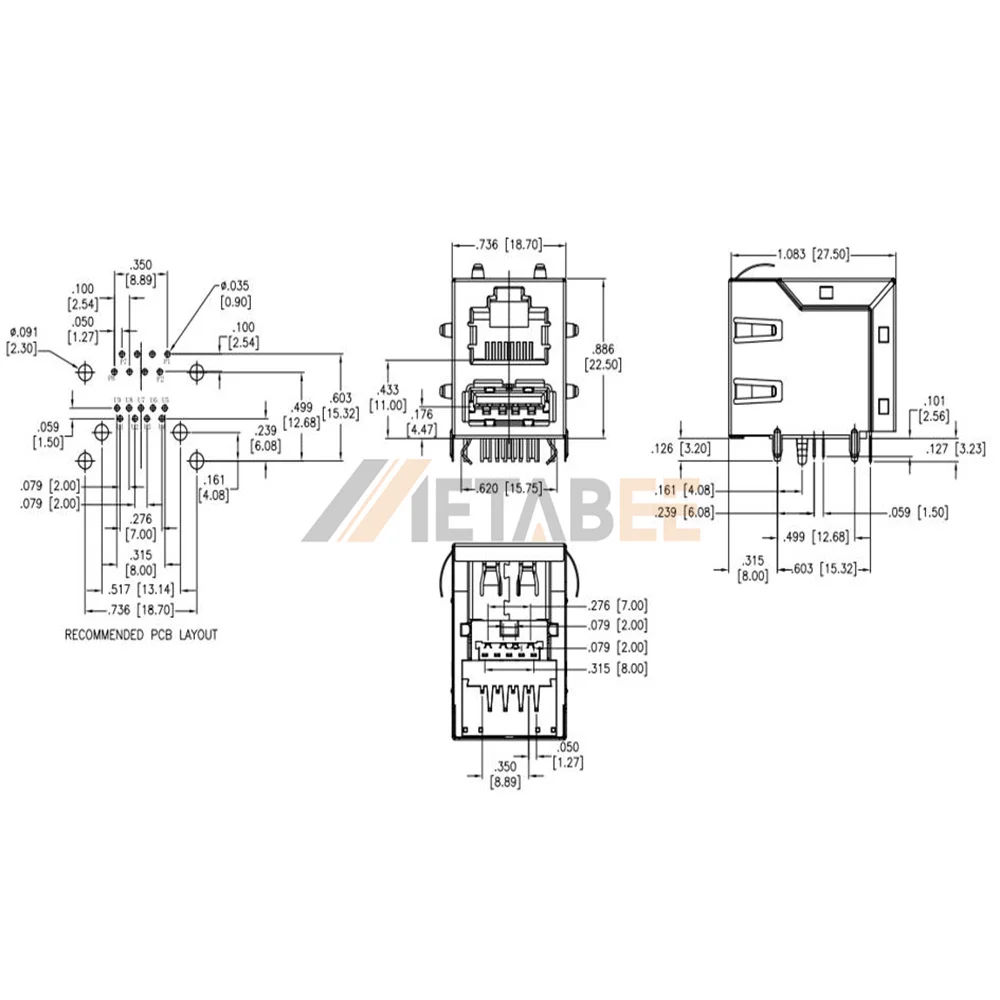

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
