Introduction:
A versatile 2×1 hybrid interface defines this component, which merges one RJ45 port and a single USB 3.0 Type A port into a compact footprint. SuperSpeed data transmission through the USB 3.0 interface ensures efficient peripheral connectivity for modern hardware. Successful operation is maintained throughout the 0C ~ 70C commercial temperature range without performance loss. A robust nickel-plated brass shield encloses the PA66 and PBT insulators to reject electromagnetic interference effectively. Visual link status relies on integrated green and yellow LED indicators positioned in the right-angle face. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms. These specialized sockets are ideal for industrial computers, digital signage systems, and server peripherals.
Key Features
- USB 3.0 Integration: Facilitates SuperSpeed data transfer and peripheral connectivity.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Hybrid 2×1 Design: Combines RJ45 and USB interfaces into one module.
- Integrated Status LEDs: Green and yellow indicators track network activity.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJ-USB3-88JX1-FS-LH | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Number of USB Ports: | Single USB Port | |
| USB Type: | Type A (USB 3.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 Mohms Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | RJ: Black USB: Blue |
|
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

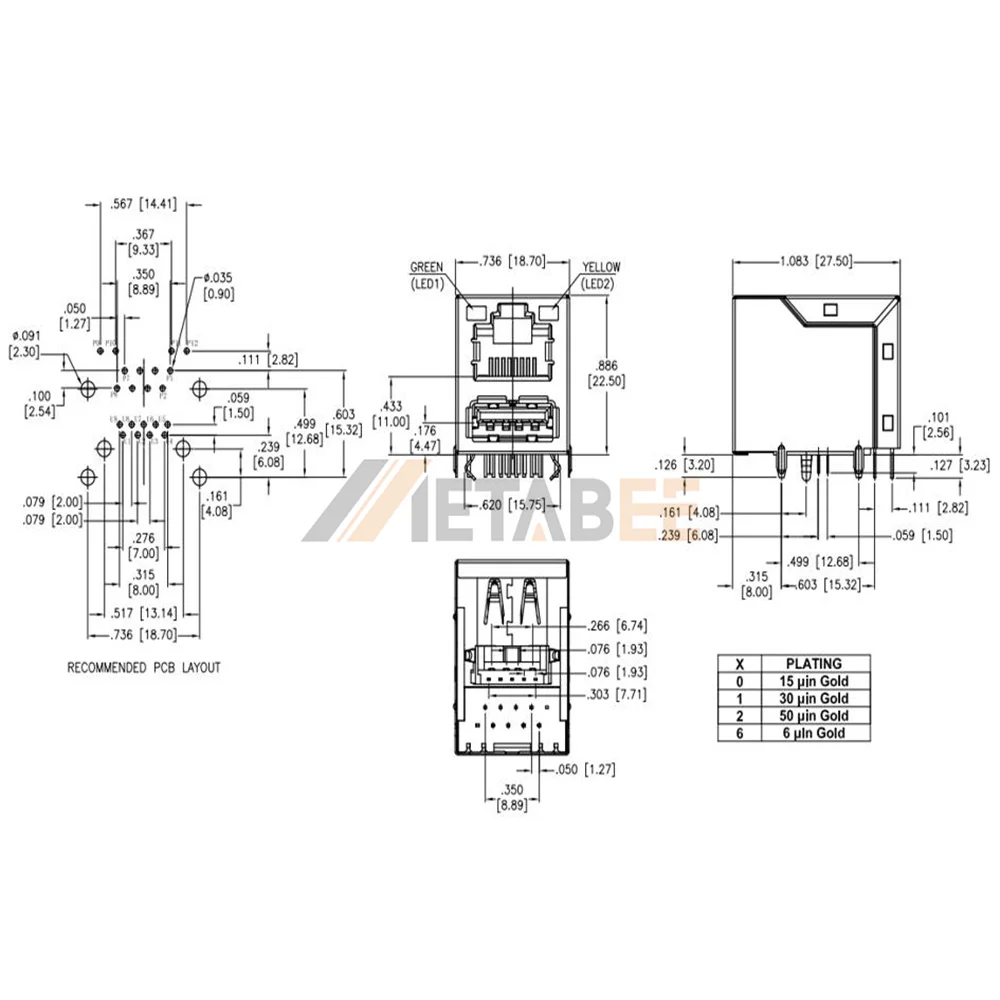

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
