Introduction:

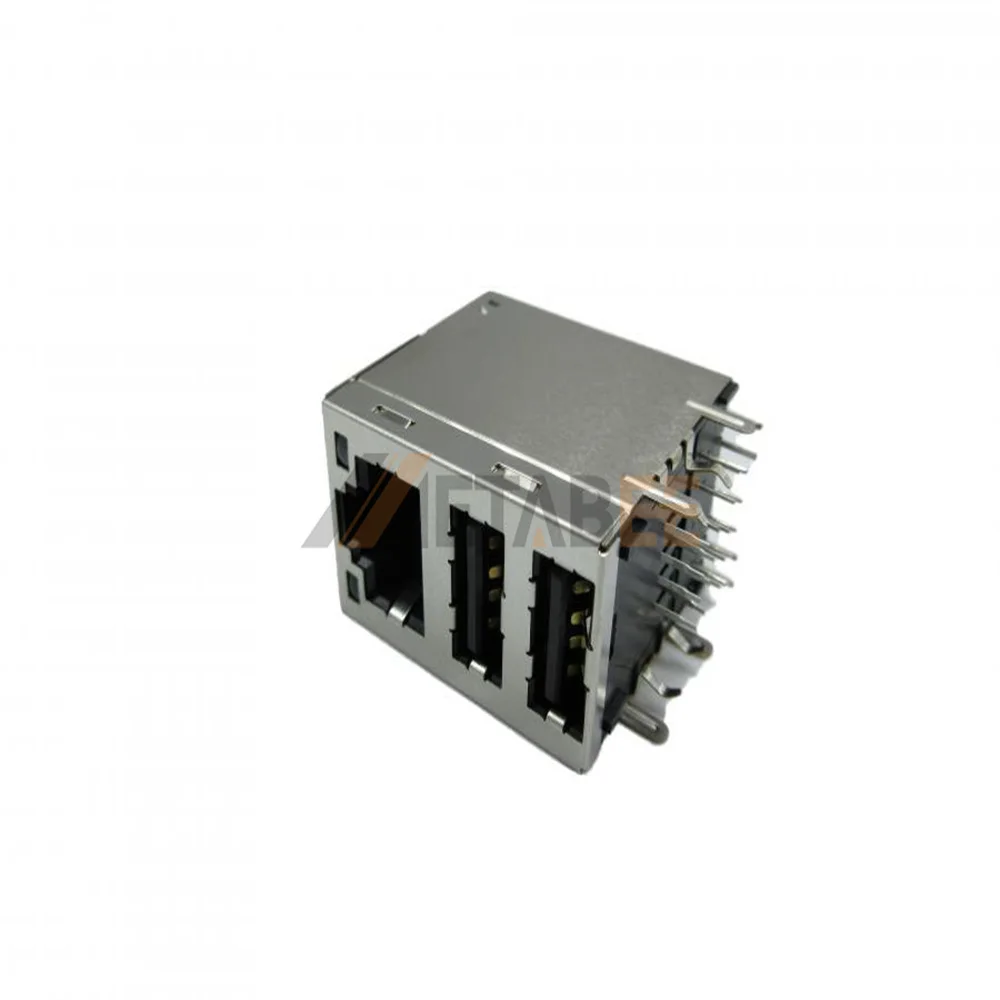

Integrated networking and peripheral access are the primary functions of this product, which combines one RJ45 port and two USB 2.0 interfaces. Reliable operation is maintained across an industrial temperature range from -40C to +85C to suit harsh environments. A robust brass shield encloses the black thermoplastic housing to reject electromagnetic interference effectively. Secure board alignment relies on the right-angle through hole mounting configuration. Visual status monitoring depends on integrated green and yellow LED indicators. Furthermore, gold-plated contacts strictly keep electrical resistance below 20 miliohms for consistent signal quality. This component is commonly utilized in industrial computers, server systems, and network routers.
Key Features
- Hybrid integration: Merges one RJ45 and two USB 2.0 ports.
- Industrial temperature range: Operates reliably from -40C to +85C.
- Brass metal shielding: Blocks severe electromagnetic interference for signals.
- Secure THT mounting: Through hole design ensures stable PCB retention.
- Integrated status LEDs: Green and yellow indicators track network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-DUSB-88JX1-FS-LH | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 3×1 Port | |
| Number of USB Ports: | Dual USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | RJ: Phosphor Bronze USB: Brass |
|
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
