SMT DisplayPort Female Connector, 20 Pin, Right-Angle, Board Locks
Introduction:
This SMT DisplayPort female connector provides a horizontal 20 pin interface for compact printed circuit boards. Its UL 94V-0 high-temperature housing withstands automated reflow soldering without warping, operating reliably from -40°C to +85°C. Integrated board locks anchor the connector firmly, preventing solder joint cracking during cable plug-in. In addition, gold-plated brass contacts maintain a low 30 mohms resistance for stable digital video output. Typical applications include embedded industrial PCs, graphics cards, broadcast monitors, and medical imaging equipment.
Key Features
- Surface Mount Design: Simplifies automated high-density board assembly.
- UL 94V-0 Housing: Resists reflow heat from -40°C to +85°C.
- Integrated Board Locks: Protects solder joints against mechanical strain.
- Gold-Plated Contacts: Ensures low resistance and stable signal transfer.

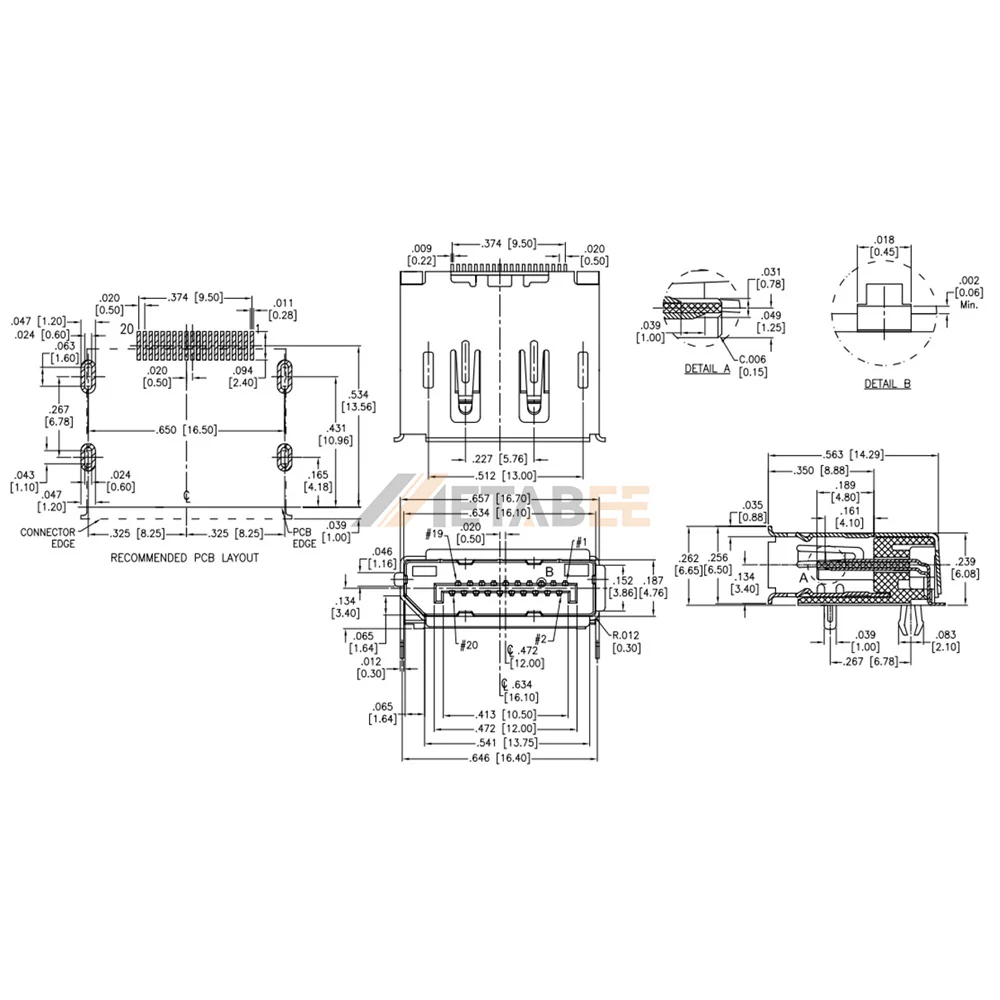

Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-SMT-BL | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Board Locks | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
