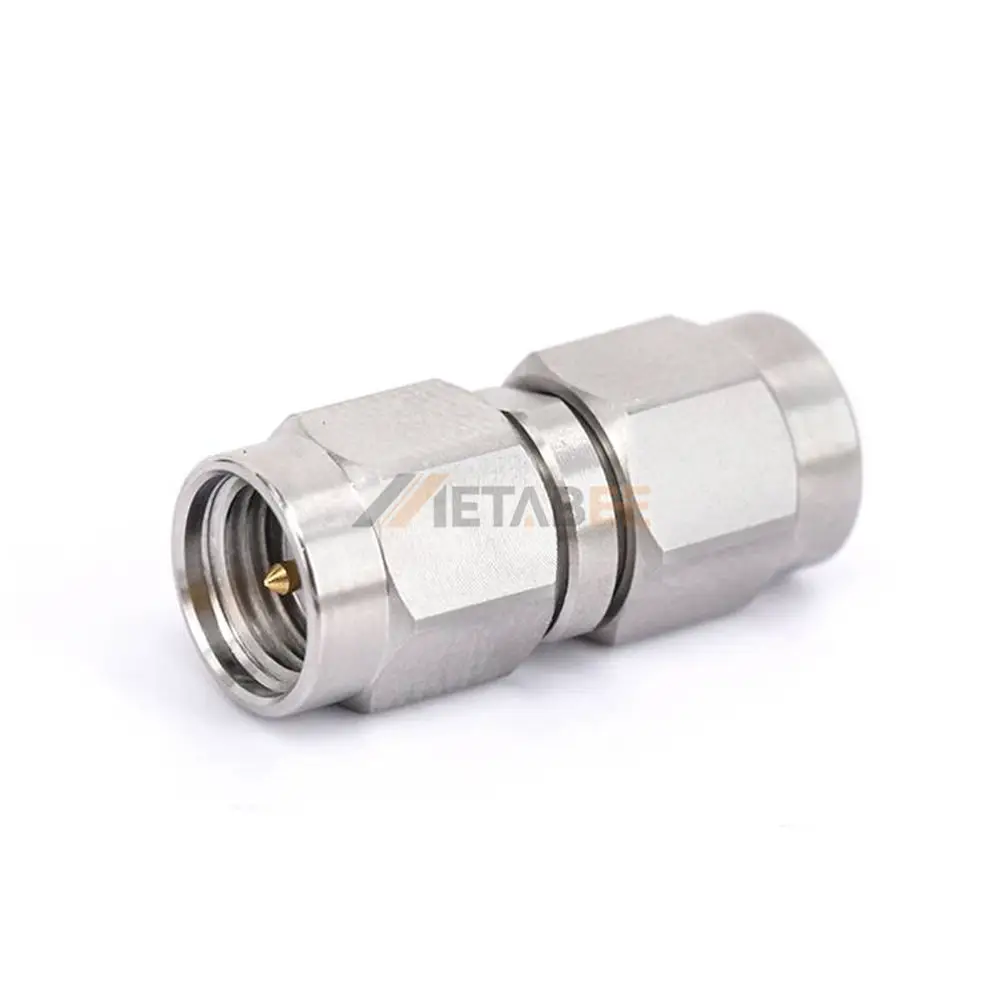

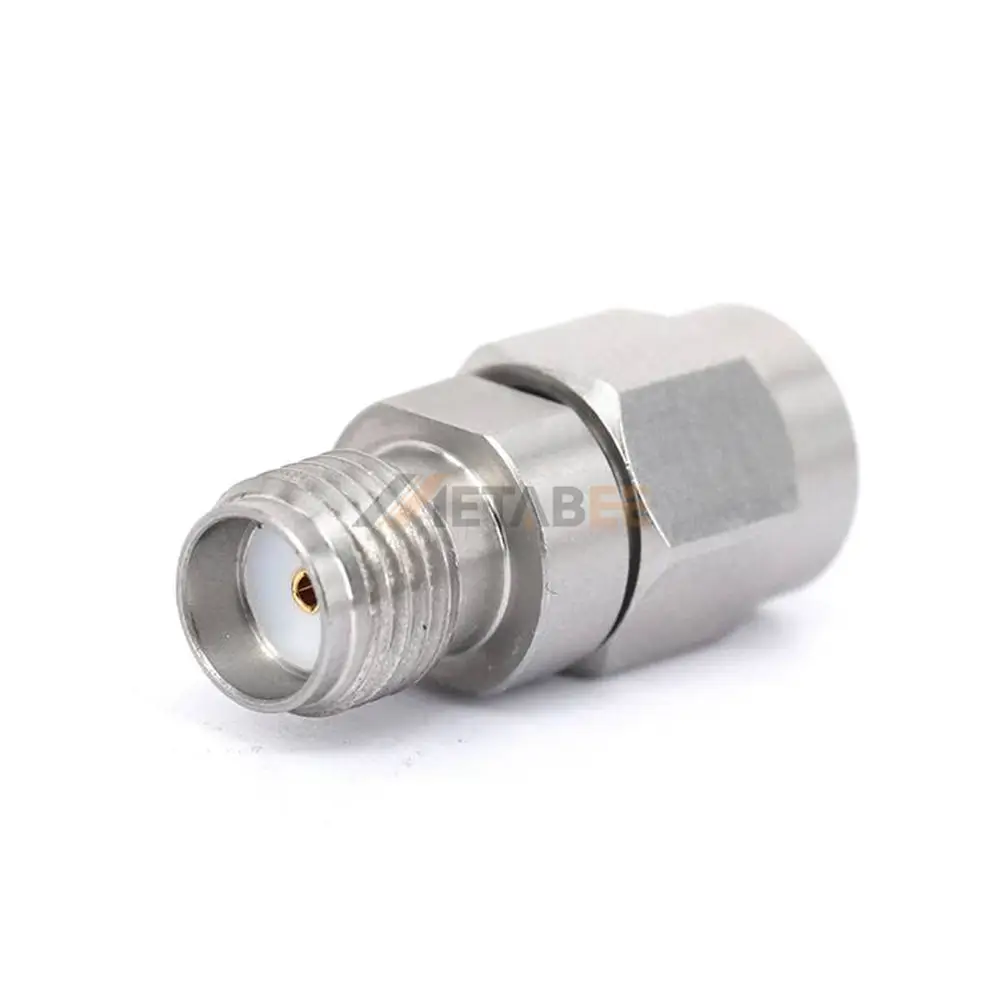

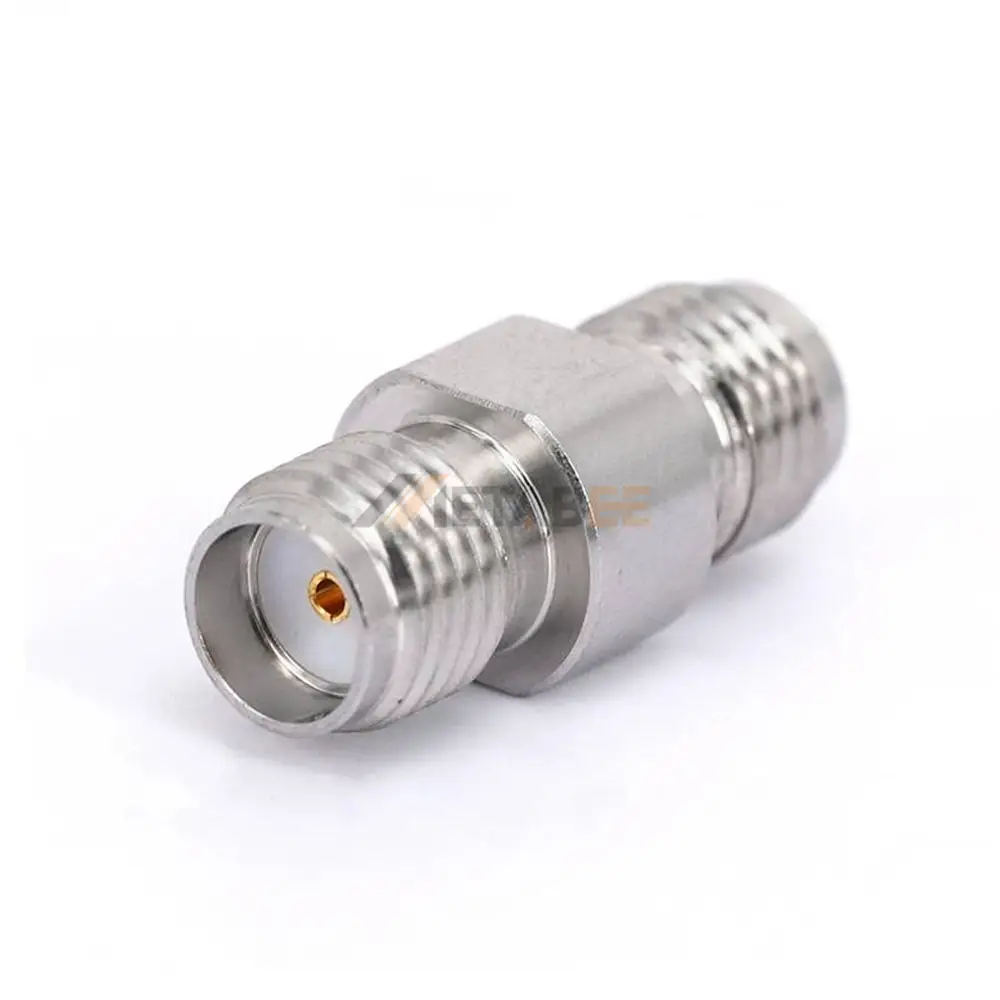

SMA to SMA Adapter, 50 Ohm, DC-26.5 GHz
Introduction
This high-performance SMA to SMA adapter is designed for seamless RF connectivity in demanding applications. Featuring a straight installation direction, it ensures easy integration into your setup. Both SMA connectors rare constructed with durable stainless steel shells and passivated plating, offering excellent corrosion resistance and long-term reliability. With a low VSWR of 1.15:1 and a broad frequency range of DC-26.5 GHz, this adapter delivers stable signal transmission with minimal loss.
Ideal for telecommunications, aerospace, and test equipment, this 50-ohm adapter operates flawlessly in extreme temperatures from -55°C to 165°C. Its robust construction and precision engineering make it suitable for high-frequency applications where signal integrity is critical.
Key features:
- 50 Ohm impedance for optimal signal matching.
- DC-26.5 GHz frequency range for wideband applications.
- Stainless steel housing with passivated coating for durability.
- Straight design for easy installation.
- Low VSWR (1.15:1) ensures minimal signal reflection.
- High-temperature resistance (-55°C to 165°C).
- Reliable SMA connectors for secure RF connections.
Main Specifications:
| Product No: | YC-SMA-JJS, YC-SMA-JKS, YC-SMA-KKS | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMA to SMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Brass | |
| Connector 1 – Body Plating: | Gold Plated | |
| Connector 2: | SMA Connector | |
| Connector 2 – Body Material: | Brass | |
| Connector 2 – Body Material: | Gold Plated | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.15:1 | |
| Frequency Range: | DC-26.5 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SMA to SMA Adapter, 50 Ohm:
2.92mm adapters are commonly used in RF and microwave applications where high-frequency performance and precision are required.
Here are some applications:
- Microwave Modules;
- Radar Systems;
- Satellite Communication;
- Broadcasting;
- 5G Technology;
- Adapters and Transitions;
- Military and Aerospace;
- Test and Measurement Equipment.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
