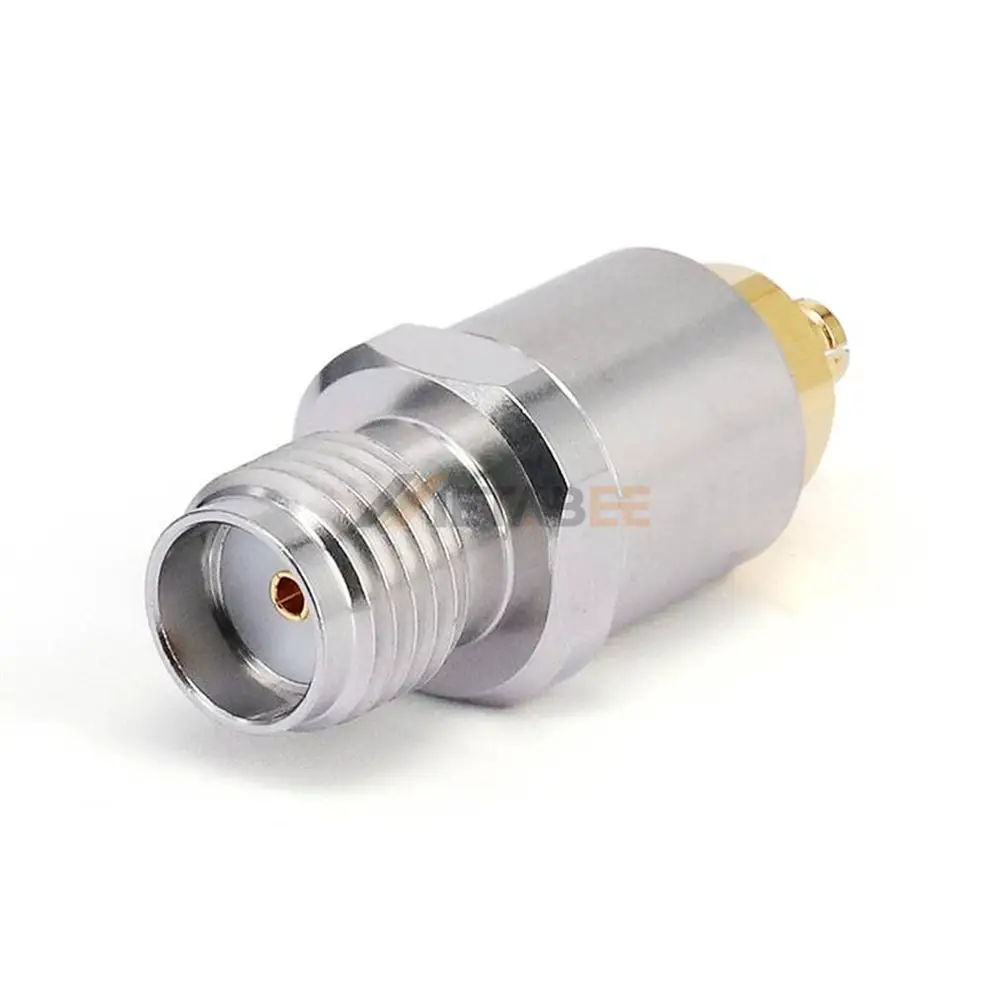

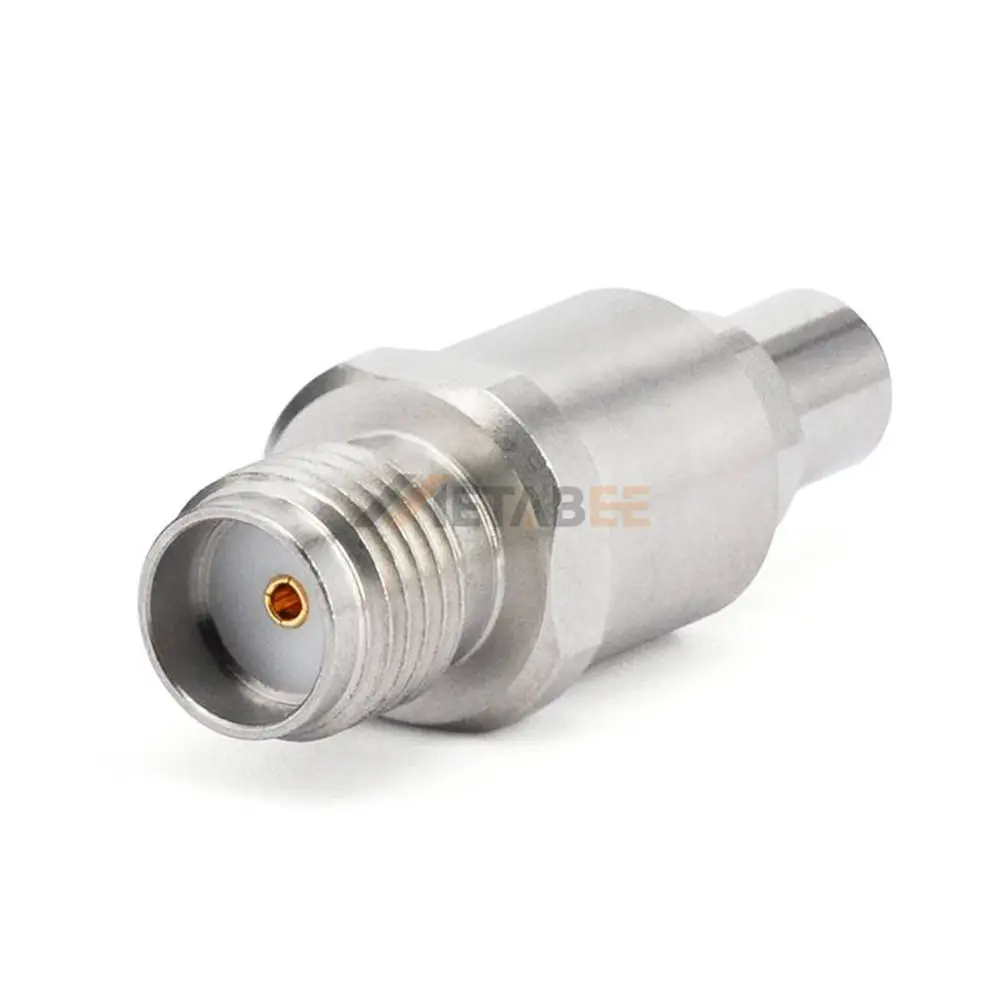

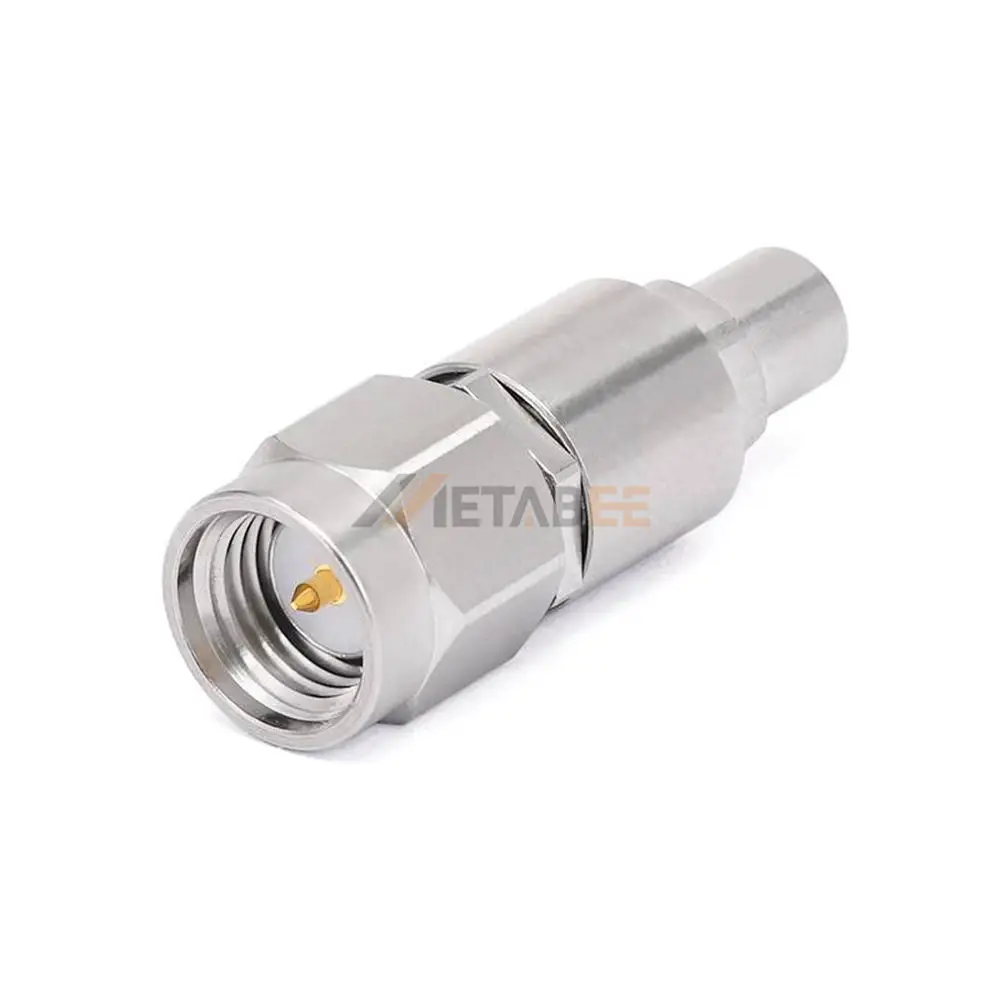

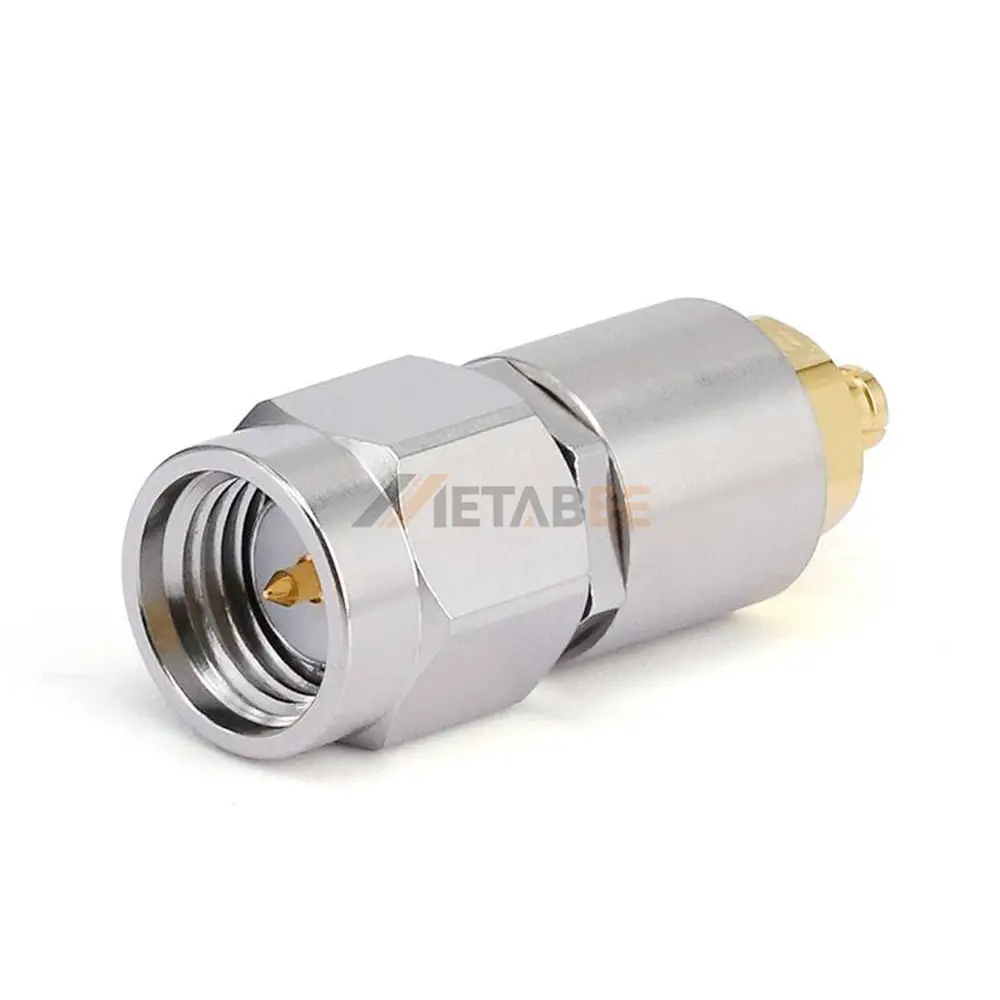

SMA to Mini-SMP (GPPO) Adapter, DC-26.5 GHz
Introduction
The SMA to Mini-SMP (GPPO) adapte is a high-performance RF interconnect solution designed for seamless signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal performance across a broad frequency range of DC-26.5 GHz. Its straight installation design provides easy integration into various setups, while the stainless steel housing with passivation plating offers superior durability and corrosion resistance. The adapter connects SMA to Mini-SMP, maintaining excellent signal integrity with a low VSWR of 1.2:1.
Engineered for reliability in extreme conditions, this adapter operates within a temperature range of -55°C to +165°C, making it suitable for aerospace, military, and high-frequency communication systems. The robust construction and precision engineering ensure stable performance even in harsh environments.
Features:
- Frequency Range: DC-18 GHz for wideband applications.
- Low VSWR: 1.2:1 ensures minimal signal reflection.
- 50-Ohm Impedance: Matches standard RF systems.
- Stainless Steel Housing: Durable and corrosion-resistant.
- Passivation Plating: Enhances longevity and performance.
- Straight Configuration: Easy installation and space-saving.
- Wide Temp Range: Operates from -55°C to +165°C.
Main Specifications:
| Product No: | YC-SMA/GPPO-JJ, YC-SMA/GPPO-JK, YC-SMA/GPPO-KJ, YC-SMA/GPPO-KK | |
| Product Series: | SMA Adapters | |
| Adapter Type: | SMA to Mini-SMP | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | Mini-SMP Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.2:1 | |
| Frequency Range: | DC-26.5 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SMA to Mini-SMP (GPPO) Adapter:
SMA adapters are incredibly versatile and widely used in the RF and microwave industry. They are a semi-precision coaxial connector, known for their compact size, excellent performance up to 18 GHz, and robust threaded coupling mechanism.
Here are some applications:
- General RF and Microwave Connections;
- Wireless Communication Systems;
- Test and Measurement Equipment;
- Radar Systems;
- Satellite Communications;
- Radio Amateur;
- Automotive Electronics.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
