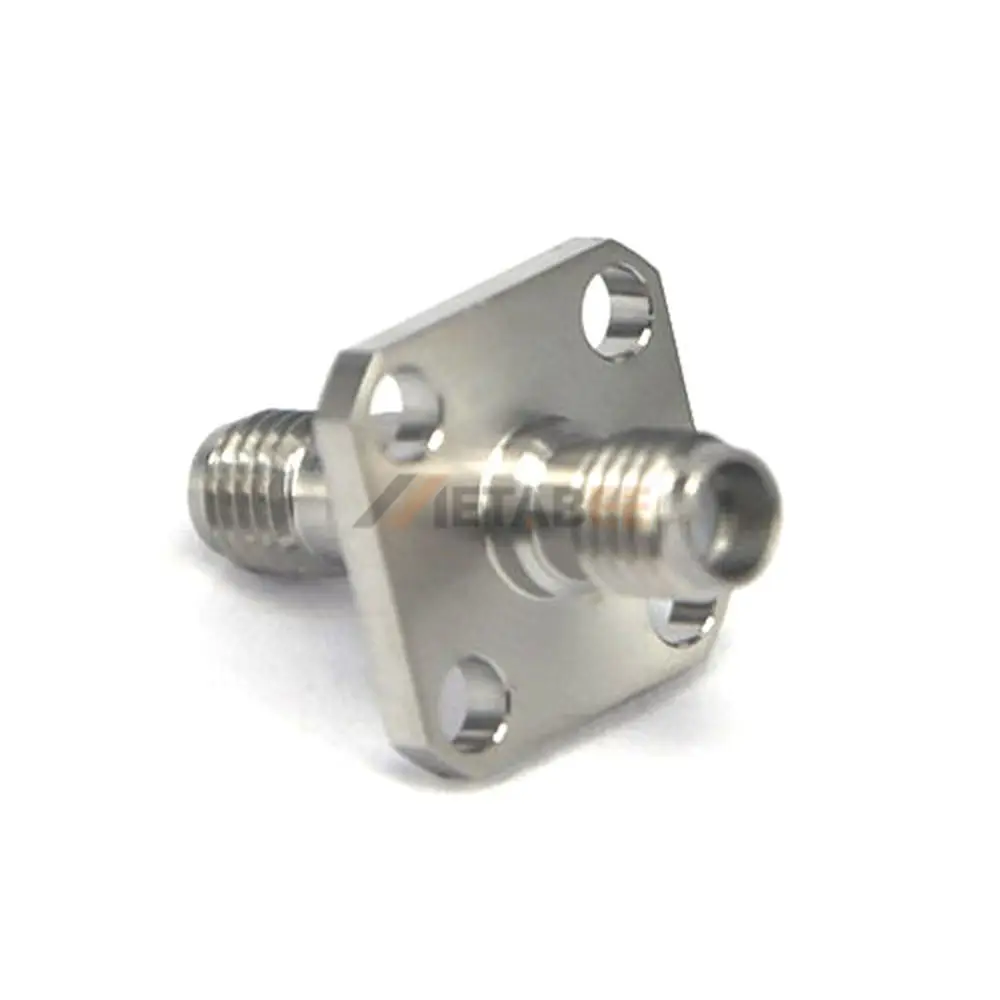

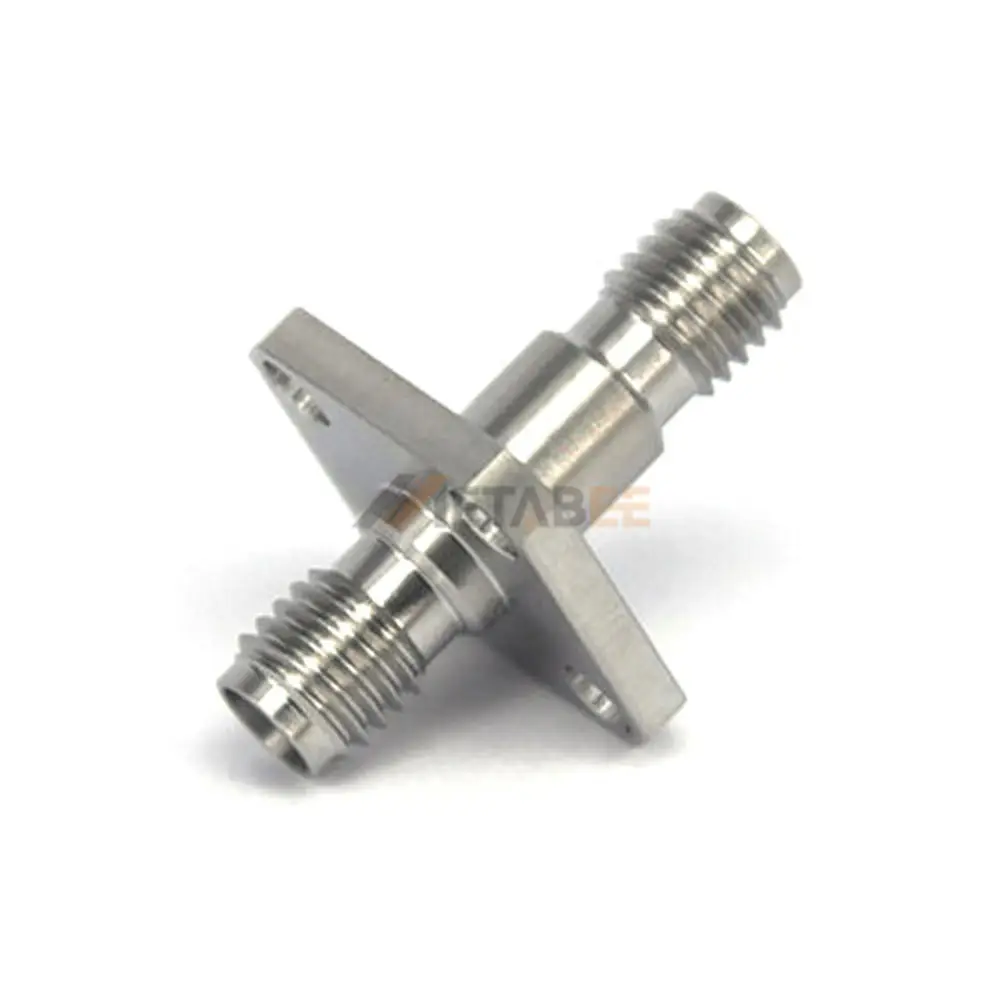

SSMA Female to SSMA Female 4-Hole Flange Adapter, DC-30 GHz
Introduction
The SSMA to SSMA adapter is a high-performance RF connector designed for seamless signal transmission in demanding applications. With a broad frequency range of DC to 30 GHz and a low VSWR of 1.3:1, this adapter ensures minimal signal loss and reliable connectivity. Its straight installation design and 50-ohm impedance match make it ideal for precision RF systems. Both connectors feature stainless steel shells with passivation plating, providing excellent durability and corrosion resistance in harsh environments.
Engineered for stability across an extended operating temperature range of -55°C to +165°C, this adapter is suitable for use in aerospace, military, telecommunications, and high-frequency testing applications. The 4-hole flange design ensures secure mounting, while the SSMA female interfaces maintain compatibility with standard SSMA connectors.
Features:
- 50-ohm impedance for efficient signal transfer.
- DC-40 GHz frequency range for wideband applications.
- Low VSWR (1.2:1) ensuring minimal signal reflection.
- Stainless steel housing for enhanced durability.
- Passivation plating for corrosion resistance.
- Straight orientation for easy installation.
- Wide operating temperature (-55°C to +165°C) for extreme conditions.
Main Specifications:
| Product No: | YC-SSMA-KFKG | |
| Product Series: | SSMA Adapters | |
| Adapter Type: | SSMA to SSMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SSMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SSMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Panel Mount-4-Hole Flange | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.3:1 | |
| Frequency Range: | DC-30 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SSMA Female to SSMA Female 4-Hole Flange Adapter:
SSMA adapters are a scaled-down version of the popular SMA adapters, designed for applications where space is at a premium and high-frequency performance is still required.
Here are some applications:
- High-Frequency RF & Microwave Systems;
- Radar Systems;
- Satellite Communications;
- Test and Measurement Equipment;
- Telecommunications;
- Radio-Frequency Identification(RFID) Systems;
- High-Speed Digital Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
