SSMA to SSMA Adapter, DC-40 GHz
Introduction
The SSMA to SSMA adapteris a precision RF connector designed for seamless signal transmission in high-frequency applications. Featuring a straight installation orientation and a 50-ohm contact impedance, this adapter ensures minimal signal loss with a low VSWR of 1.2:1. Its robust stainless steel housing with passivation plating provides excellent durability and corrosion resistance, making it ideal for demanding environments.
Engineered for superior performance across a broad frequency range (DC-40 GHz), this adapter maintains stable connectivity even in extreme temperatures (-55°C to +165°C). Both SSMA connectors are constructed with high-grade materials to ensure reliable signal integrity in telecommunications, aerospace, and test equipment applications.
Features:
- 50-ohm impedance for efficient signal transfer.
- DC-40 GHz frequency range for wideband applications.
- Low VSWR (1.2:1) ensuring minimal signal reflection.
- Stainless steel housing for enhanced durability.
- Passivation plating for corrosion resistance.
- Straight orientation for easy installation.
- Wide operating temperature (-55°C to +165°C) for extreme conditions.
Main Specifications:

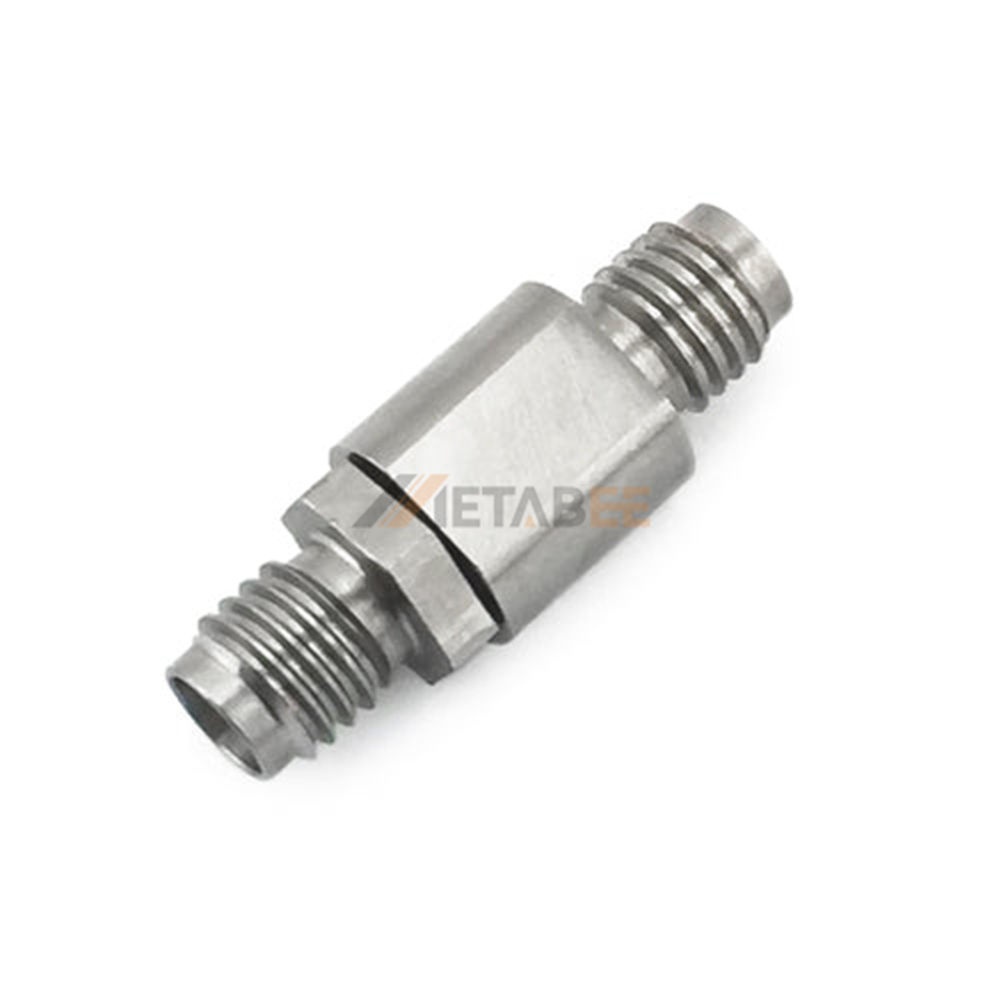

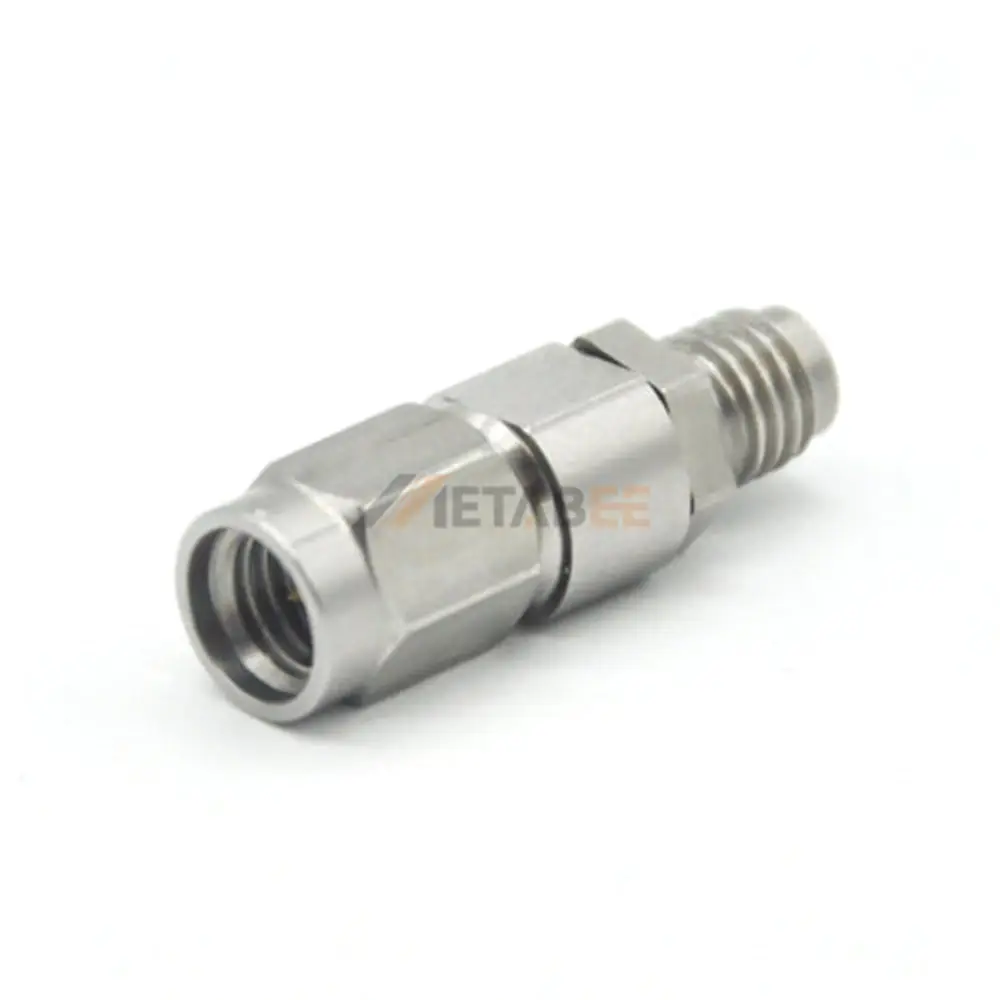

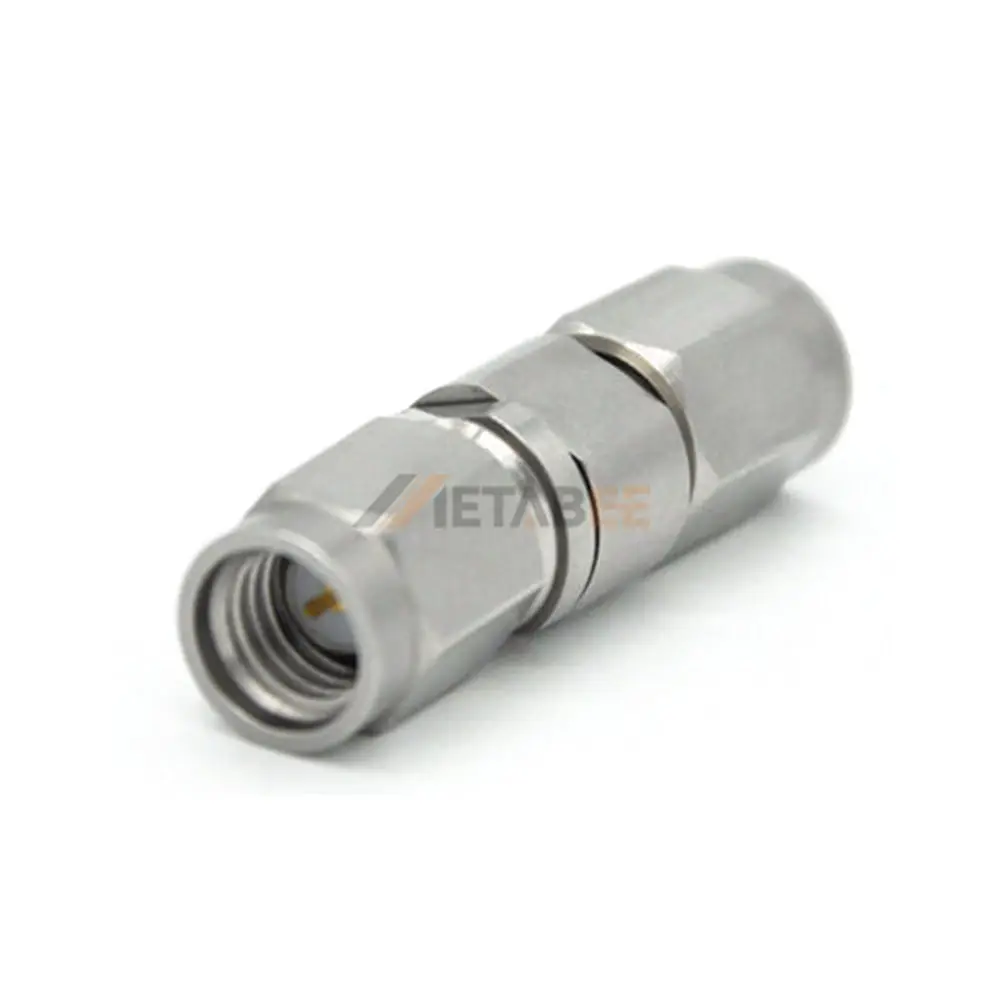

| Product No: | YC-SSMA-JJS, YC-SSMA-JKS, YC-SSMA-KKS | |
| Product Series: | SSMA Adapters | |
| Adapter Type: | SSMA to SSMA | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | SSMA Connector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivation | |
| Connector 2: | SSMA Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivation | |
| Mount Method: | Not Applicable | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.2:1 | |
| Frequency Range: | DC-40 GHz | |
| Operating Temerature: | -55 ºC to +165 ºC | |
| Other Feature: | None |
Applications of this SSMA to SSMA Adapter:
SSMA adapters are a scaled-down version of the popular SMA adapters, designed for applications where space is at a premium and high-frequency performance is still required.
Here are some applications:
- High-Frequency RF & Microwave Systems;
- Radar Systems;
- Satellite Communications;
- Test and Measurement Equipment;
- Telecommunications;
- Radio-Frequency Identification(RFID) Systems;
- High-Speed Digital Systems.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
