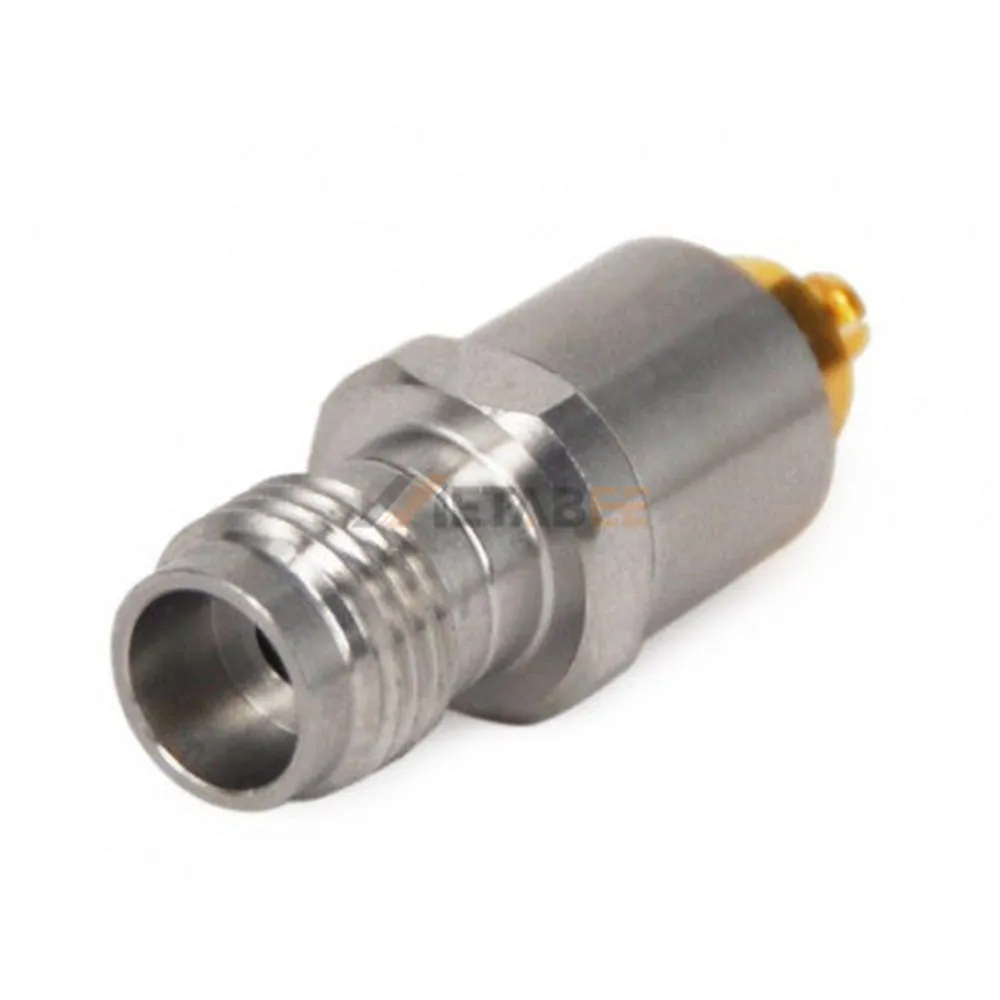

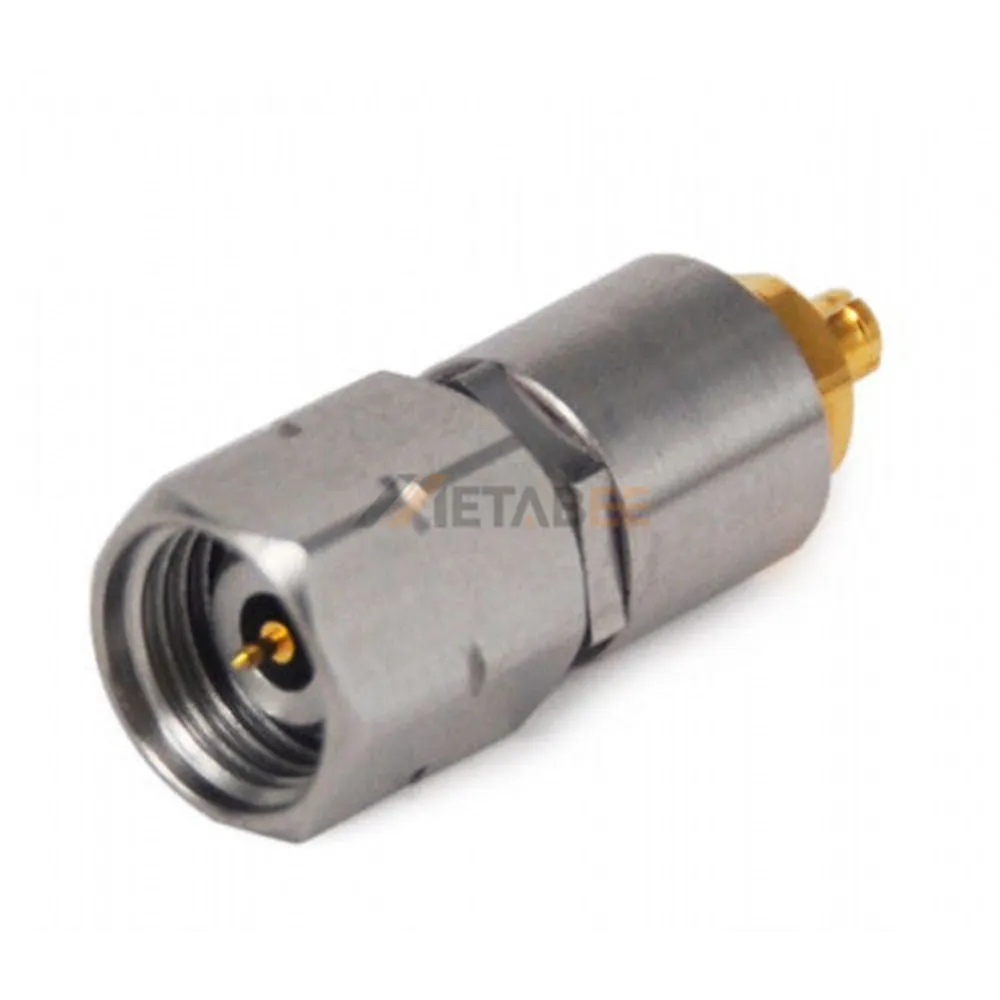

2.4mm to Mini-SMP (GPPO) Adapter, DC-40 GHz

Introduction

The 2.4mm to Mini-SMP (GPPO) adapter is a high-performance RF interconnect solution designed for seamless signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal performance across a broad frequency range of DC-40 GHz. Its straight installation design provides easy integration into various setups, while the stainless steel housing with passivated plating offers superior durability and corrosion resistance.

With a low VSWR of 1.25:1, this adapter guarantees reliable signal integrity in high-frequency environments. The 2.4mm connector and Mini-SMP (GPPO) connector ensure secure and stable connections. Built to withstand operating temperatures from -50°C to 85°C, this adapter is ideal for aerospace, telecommunications, and test & measurement applications.

Key features:

  • 50-ohm impedance for efficient signal transfer
  • DC-40 GHz frequency range for broad compatibility
  • Stainless steel housing with passivated plating for durability
  • Straight installation for easy integration
  • Low VSWR (1.25:1) ensuring minimal signal loss
  • 2.4mm to Mini-SMP (GPPO) conversion for versatile connectivity
  • Wide temperature range (-50°C to 85°C) for harsh environments

Main Specifications:

Product No:  YC-2.4/GPPO-JJ, YC-2.4/GPPO-JK, YC-2.4/GPPO-KJ, YC-2.4/GPPO-KK
Product Series: 2.4mm Adapters
Adapter Type: 2.4mm to Mini-SMP
Brand: Metabee
Orientation: Straight
Connector 1 2.4mm Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: Mini-SMP Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.25:1
Frequency Range: DC-40 GHz
Operating Temerature:  -50 ºC to +85 ºC
Other Feature: None


Applications of this 2.4mm to Mini-SMP (GPPO) Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-2.4/GPPO-JJ, YC-2.4/GPPO-JK, YC-2.4/GPPO-KJ, YC-2.4/GPPO-KK

Adapter Type

2.4mm to Mini-SMP

Product Name

2.4mm to Mini-SMP (GPPO) Adapter, DC-40 GHz

Brand

Metabee

Orientation

Straight

Connector 1

2.4mm Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

Mini-SMP Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-40 GHz

VSWR

≤1.25:1

Operating Temerature

-50 ºC to +85 ºC

Other Features

None
