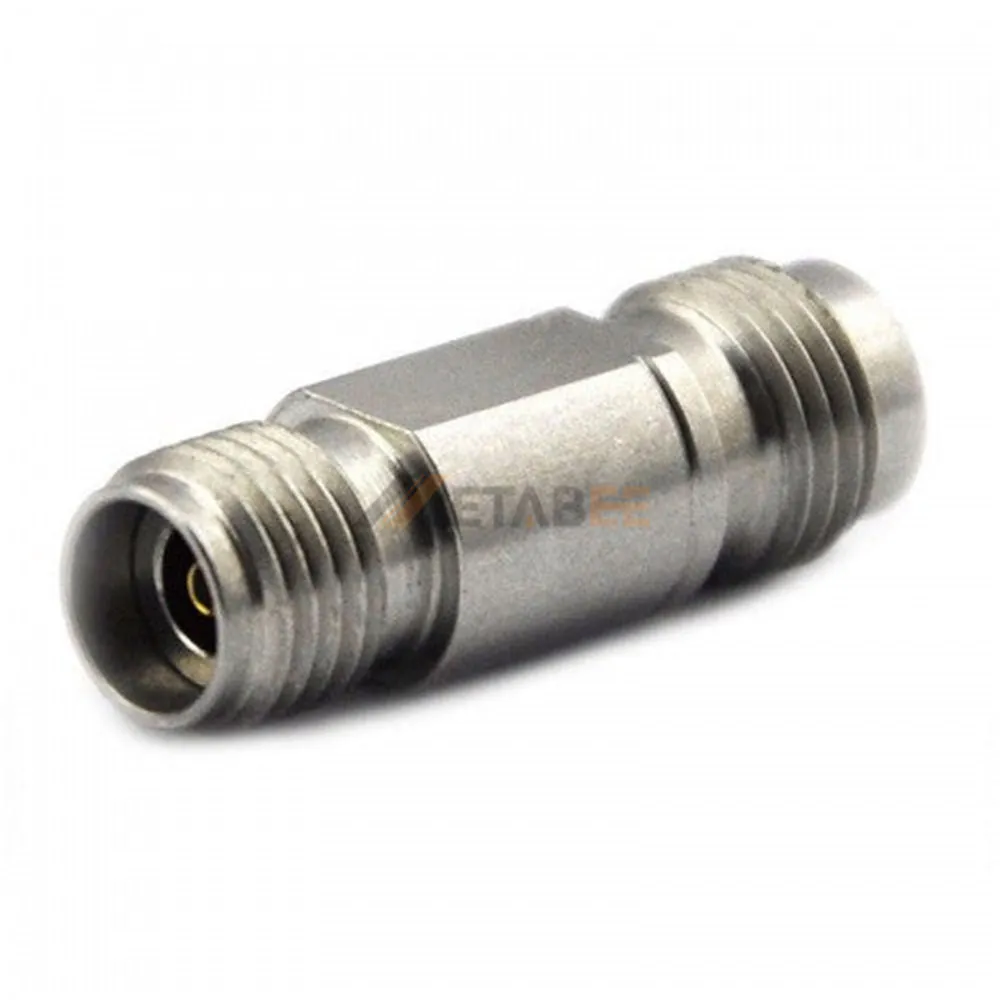

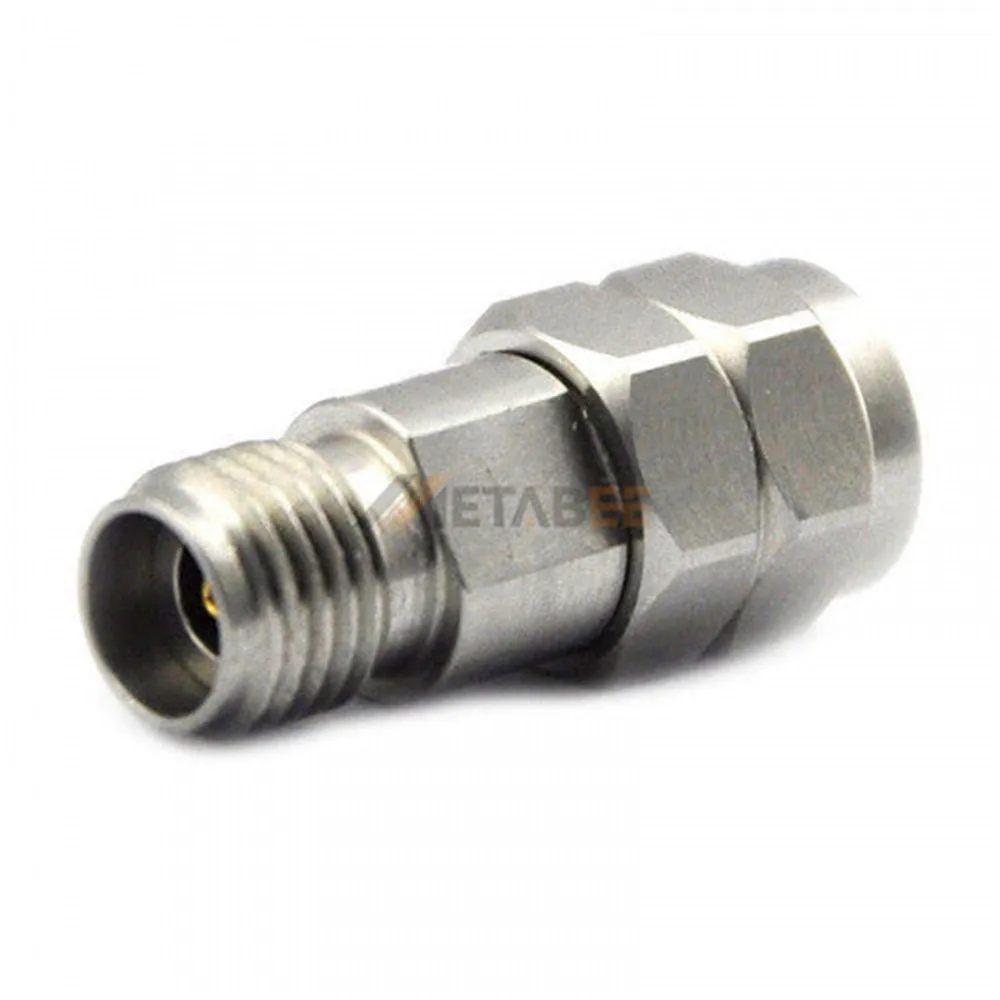

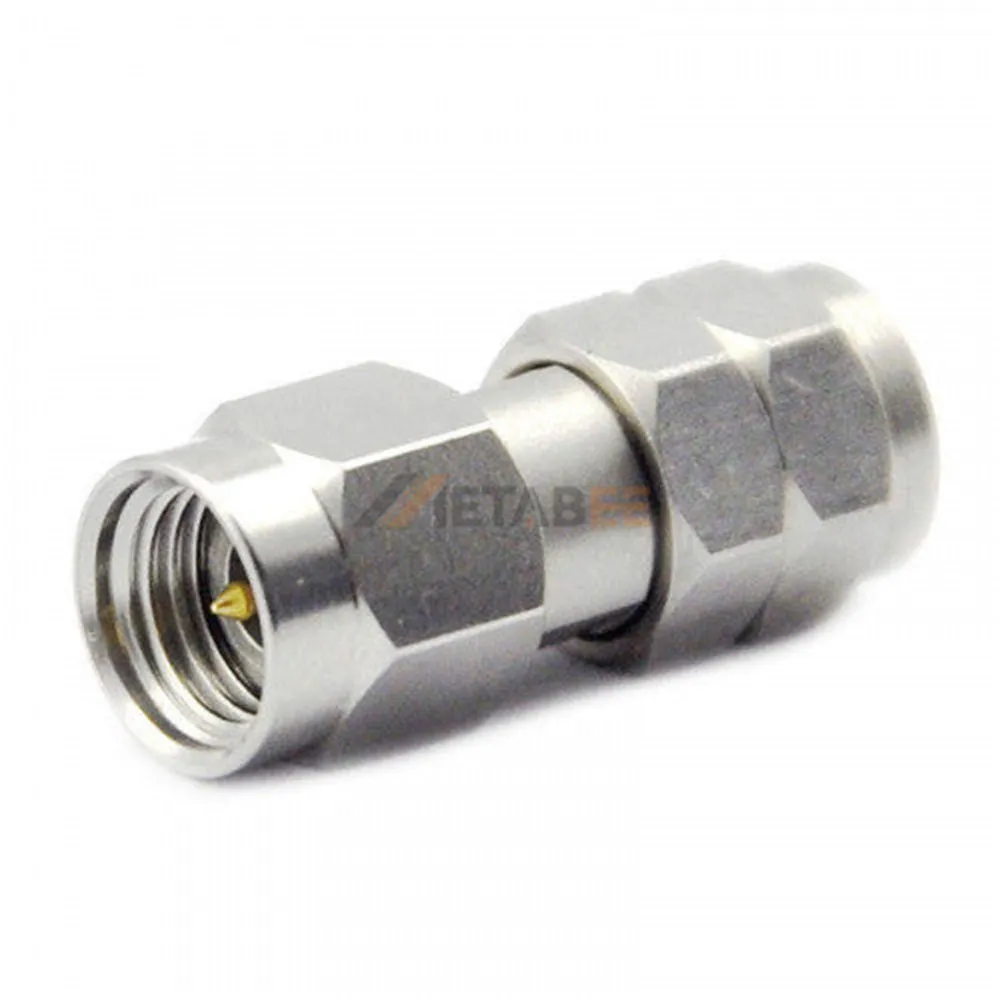

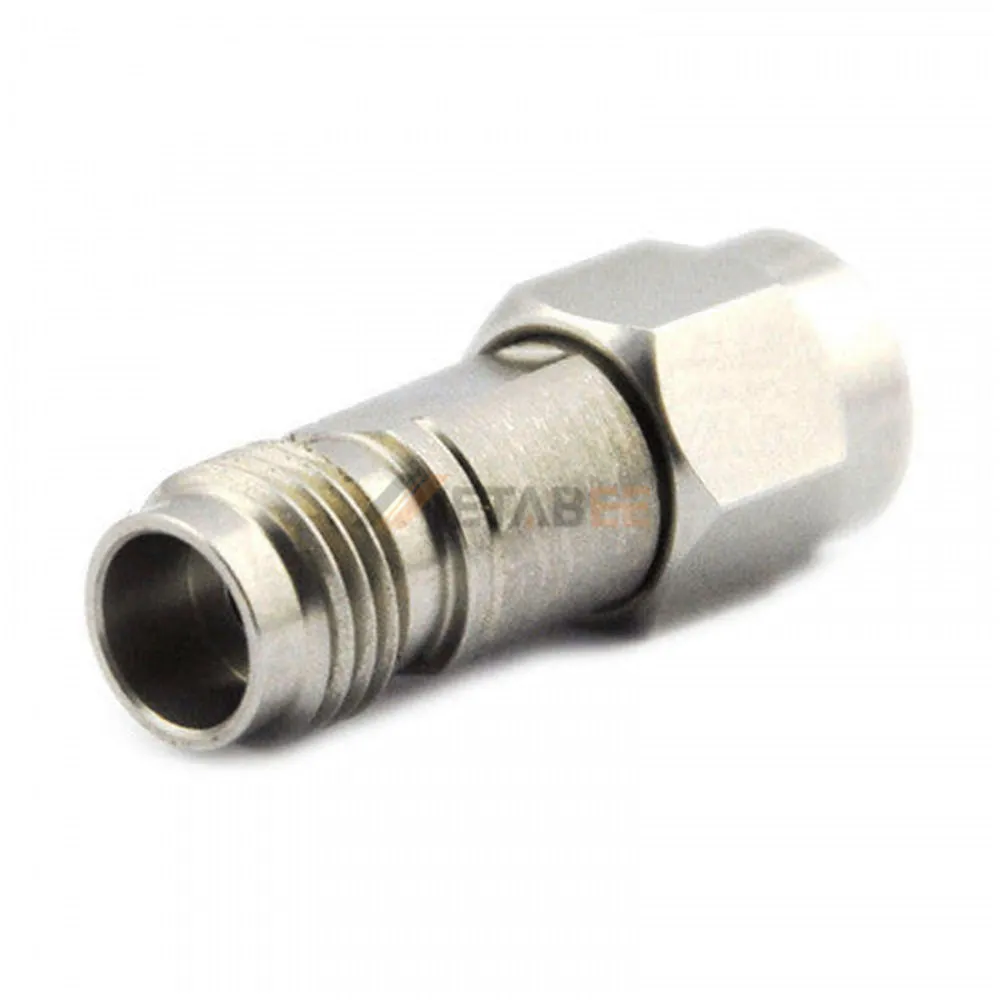

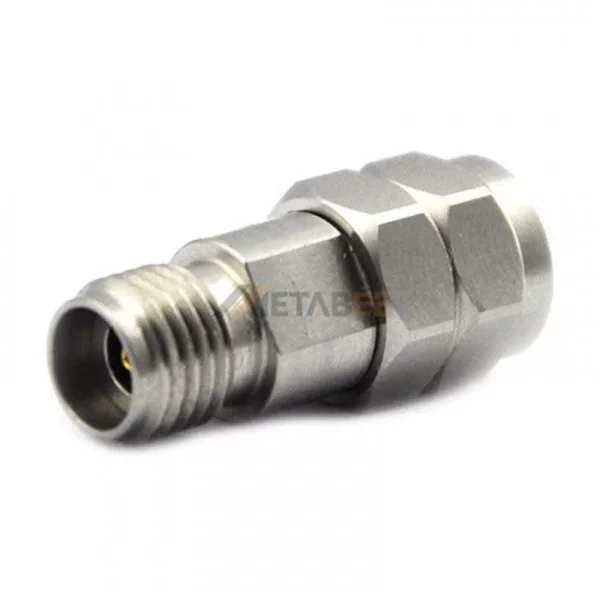

2.4mm to 2.4mm RF Adapter, DC-40 GHz

Introduction

The 2.4mm to 2.4mm RF adapter is a high-performance interconnect solution designed for seamless signal transmission in demanding RF and microwave applications. Featuring a 50-ohm impedance match and a straight (inline) configuration, this adapter ensures minimal insertion loss and superior signal integrity across a broad frequency range from DC to 40 GHz. The rugged stainless steel housing with a passivated finish provides excellent durability and corrosion resistance, making it ideal for laboratory, military, and telecommunications use.

With an ultra-low VSWR of 1.15:1, this adapter maximizes power transfer while minimizing signal reflections. Its precision-engineered contacts guarantee reliable mating cycles, and the wide operating temperature range (-50°C to +85°C) ensures stable performance in extreme environments. Whether used in test & measurement setups, radar systems, or high-frequency communication devices, this adapter delivers consistent, high-fidelity connectivity.

Key features:

  • 2.4mm to 2.4mm straight adapter – Space-saving inline design;
  •  50Ω impedance – Optimized for RF/microwave applications;
  • DC to 40 GHz bandwidth – Supports ultra-wide frequency range;
  •  Low 1.15:1 VSWR – Ensures minimal signal reflection;
  • Stainless steel housing (passivated) – Enhanced durability & corrosion resistance;
  • Precision-machined contacts – Reliable, long-lasting performance;
  •  Wide temp range (-50°C to +85°C) – Suitable for harsh environments.

Main Specifications:

Product No:  YC-2.92/2.4-JJS, YC-2.92/2.4-JKS, YC-2.92/2.4-KJS, YC-2.92/2.4-KKS
Product Series: 2.4mm Adapters
Adapter Type: 2.4mm to 2.4mm
Brand: Metabee
Orientation: Straight
Connector 1 2.4mmConnector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: 2.4mm Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.15:1
Frequency Range: DC-40 GHz
Operating Temerature:  -50 ºC to +85 ºC
Other Feature: None


Applications of this 2.4mm to 2.4mm RF Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-2.92/2.4-JJS, YC-2.92/2.4-JKS, YC-2.92/2.4-KJS, YC-2.92/2.4-KKS

Adapter Type

2.4mm to 2.4mm

Product Name

2.4mm to 2.4mm RF Adapter, DC-40 GHz

Brand

Metabee

Orientation

Straight

Connector 1

2.4mm Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

2.4mm Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-40 GHz

VSWR

≤ 1.15:1

Operating Temerature

-50 ºC to +85 ºC

Other Features

None
