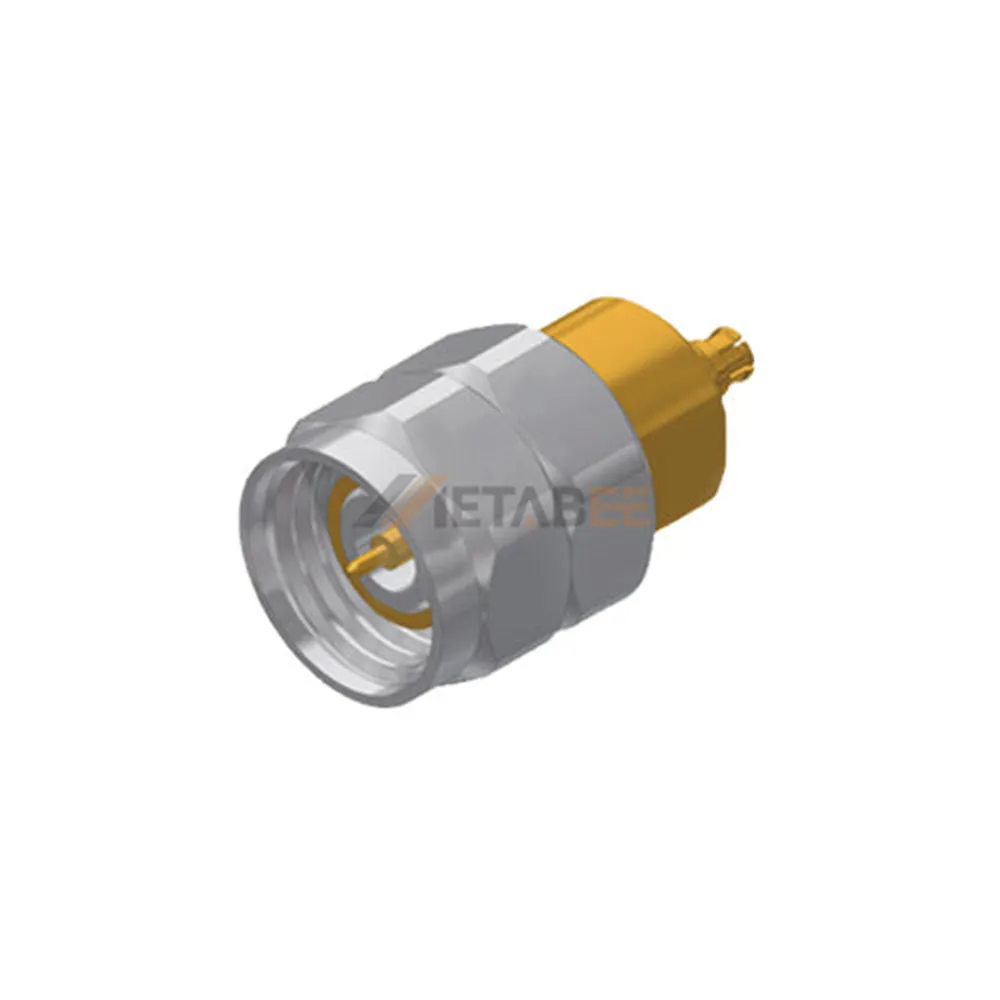

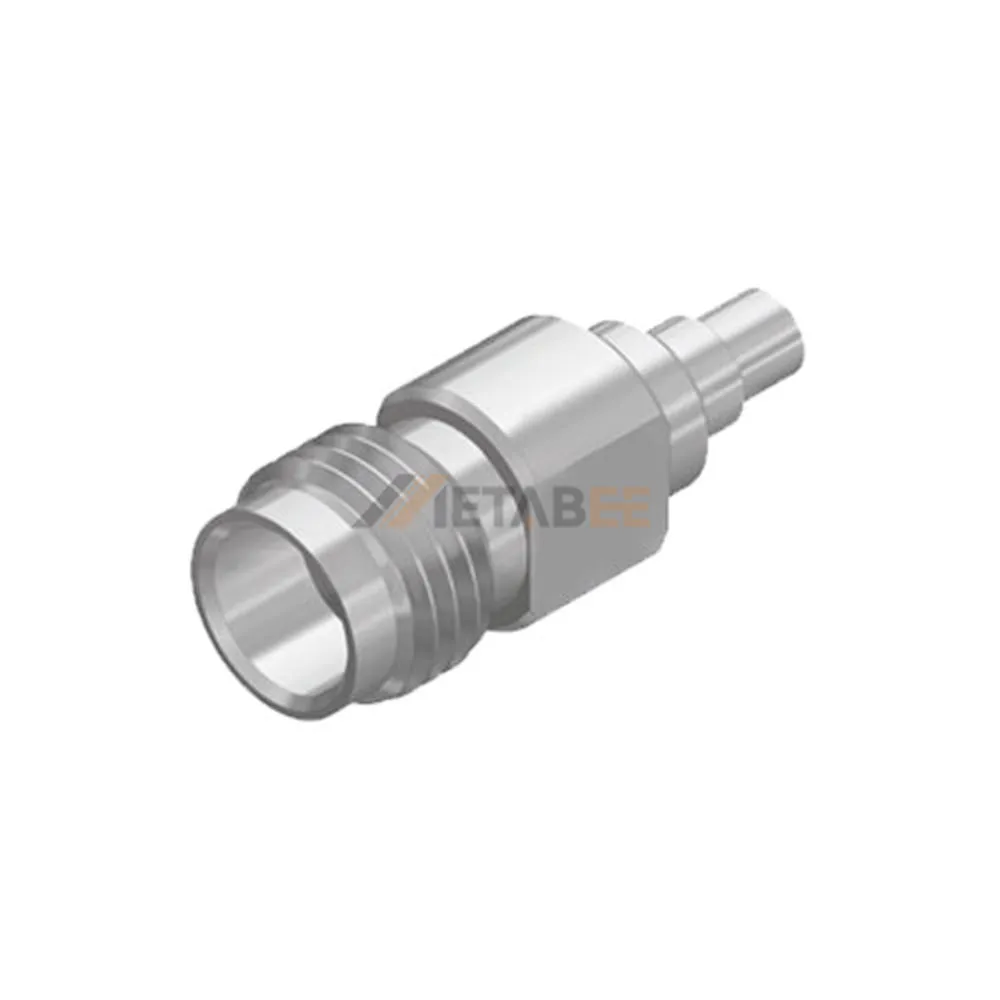

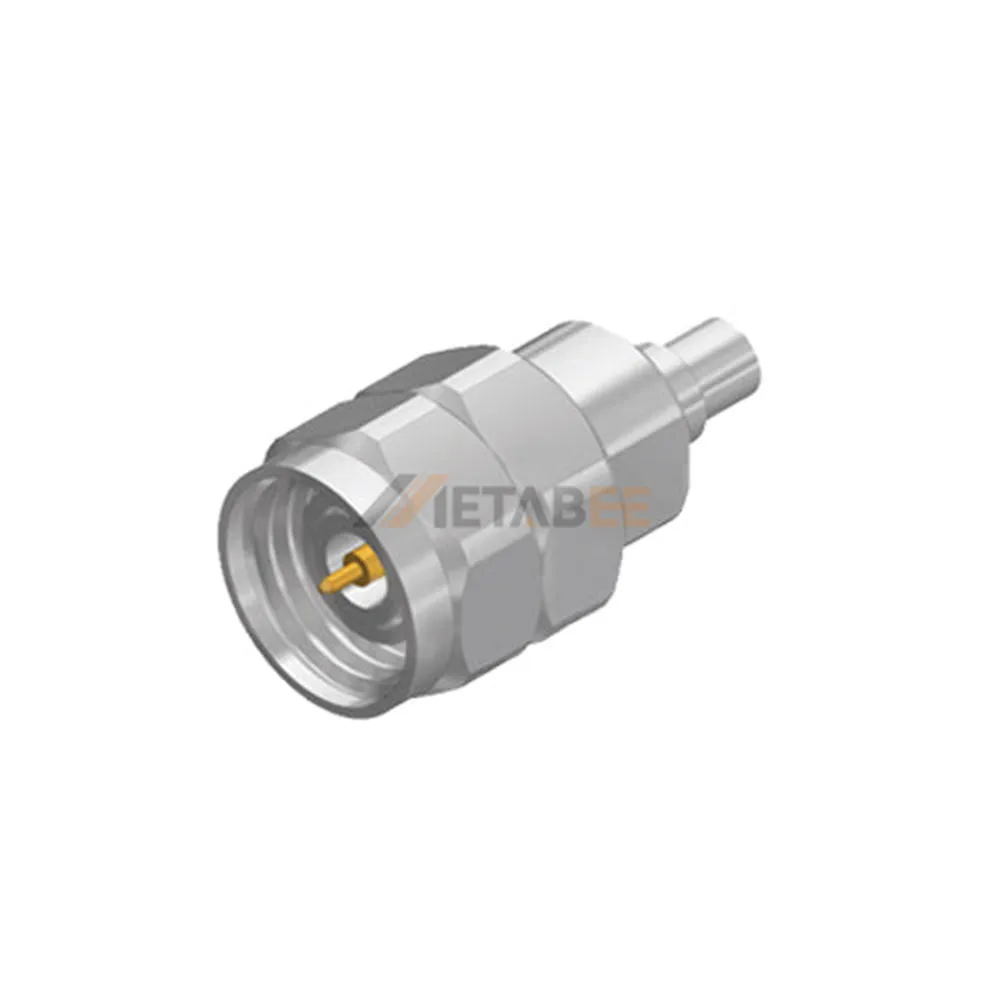

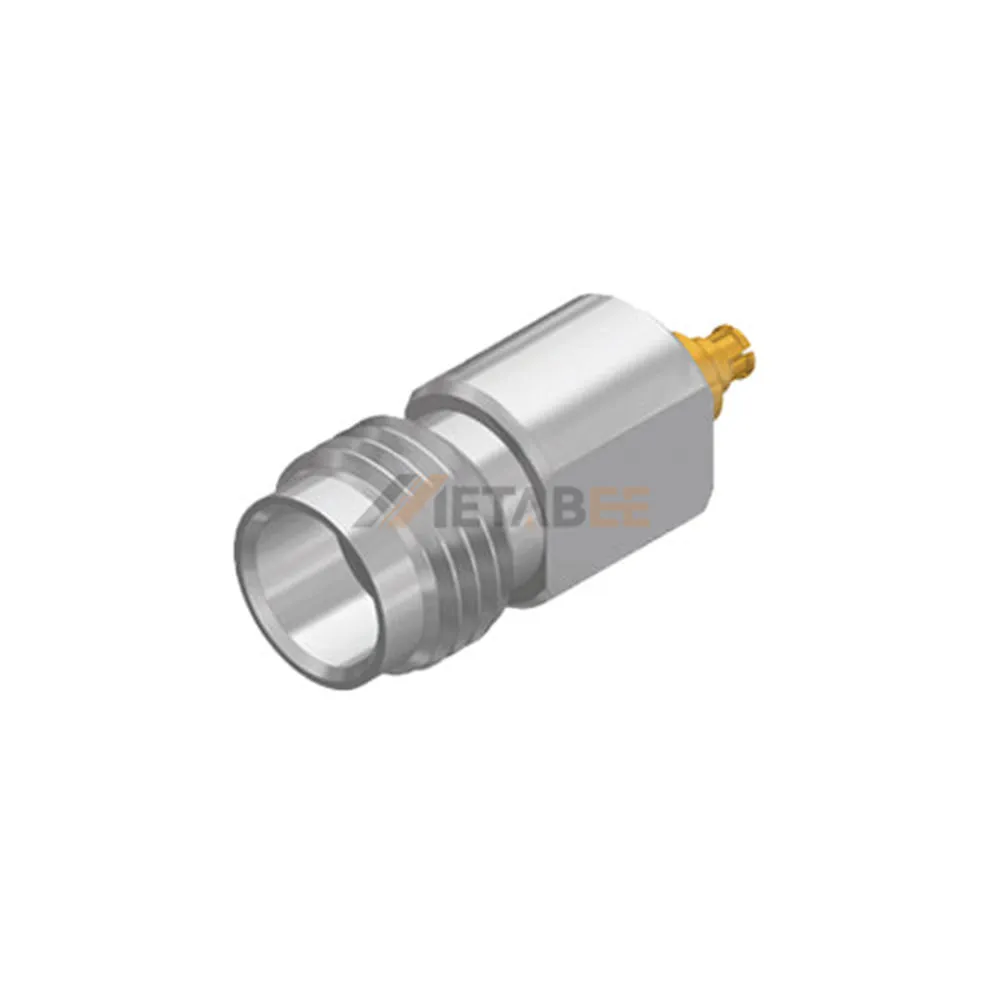

2.4mm to SMPS (G3PO) Adapter, DC-50 GHz

Introduction

The 2.4mm to SMPS (G3PO) adapter is a high-performance RF adapter designed for seamless connectivity between 2.4mm and SMPS (G3PO) interfaces. Featuring a 50-ohm contact impedance and a straight installation orientation, this adapter ensures reliable signal transmission with minimal loss. The stainless steel housing with a passivated finish on both connectors enhances durability and corrosion resistance, making it suitable for demanding environments. With an impressive frequency range of DC-50 GHz and a low VSWR of 1.30:1, this adapter delivers exceptional signal integrity across a broad spectrum of applications.

Engineered for precision, the adapter operates in extreme temperatures ranging from -55°C to 165°C, ensuring stability in harsh conditions. The 2.4mm connector (male/female) and SMPS (G3PO) connector are built to maintain consistent performance in high-frequency systems, including test equipment, aerospace, and telecommunications. Its robust construction and superior electrical characteristics make it an ideal solution for engineers requiring high-frequency adaptability without compromising signal quality.

Key features:

  • 50-ohm impedance for optimal signal transmission;
  • DC-50 GHz frequency range for wideband applications;
  • Low VSWR (1.30:1) for ensuring minimal signal reflection;
  • Stainless steel housing with passivated finish for durability;
  • Straight orientation for easy installation;
  • High-temperature resilience (-55°C to 165°C);
  • Reliable 2.4mm to SMPS (G3PO) conversion for precision RF systems.

Main Specifications:

Product No:  YC-2.4/G3PO-JJ, YC-2.4/G3PO-JK, YC-2.4/G3PO-KJ, YC-2.4/G3PO-KK
Product Series: 2.4mm Adapters
Adapter Type: 2.4mm to SMPS
Brand: Metabee
Orientation: Straight
Connector 1 2.4mm Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: SMPS Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.3:1
Frequency Range: DC-50 GHz
Operating Temerature:  -55 ºC to +165 ºC
Other Feature: None


Applications of this 2.4mm to SMPS (G3PO) Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-2.4/G3PO-JJ, YC-2.4/G3PO-JK, YC-2.4/G3PO-KJ, YC-2.4/G3PO-KK

Adapter Type

2.4mm to SMPS

Product Name

2.4mm to SMPS (G3PO) Adapter, DC-50 GHz

Brand

Metabee

Orientation

Straight

Connector 1

2.4mm Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

SMPS Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-50 GHZ

VSWR

≤ 1.30:1

Operating Temerature

-55 ºC to +165 ºC

Other Features

None
