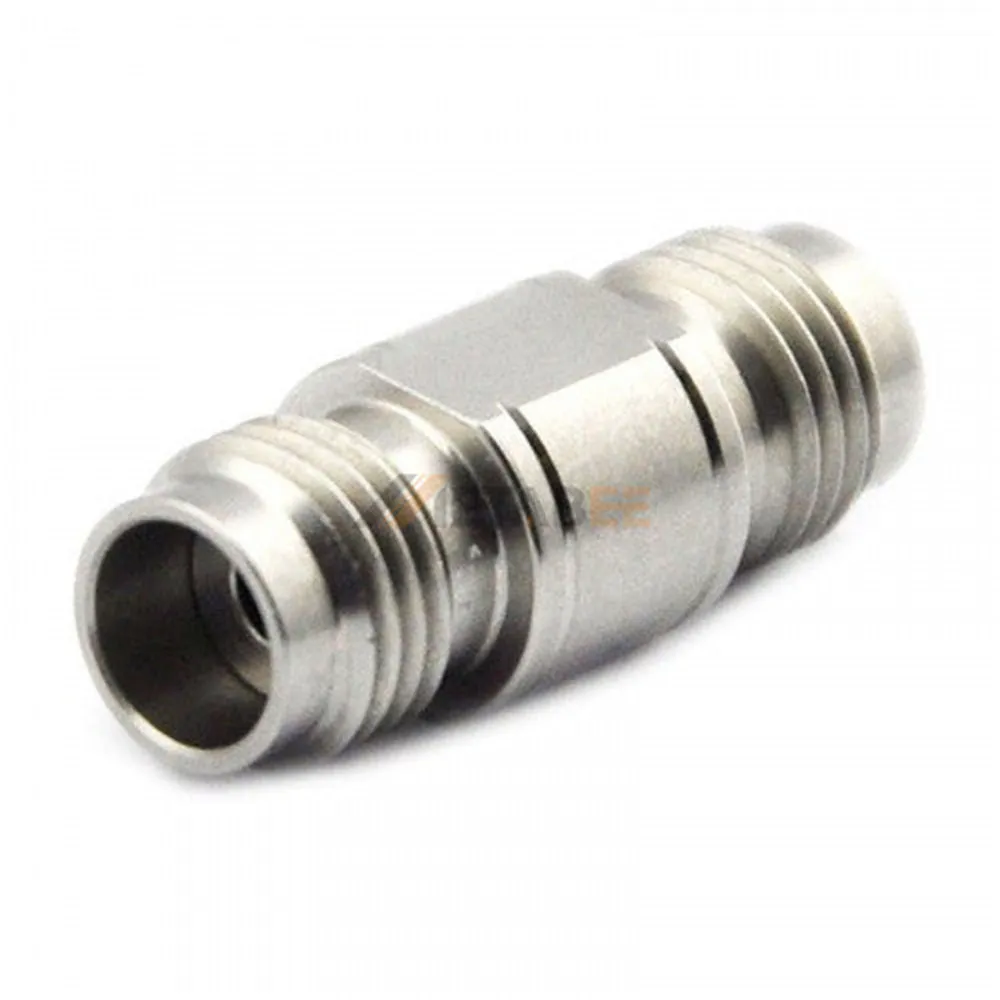

2.4mm to 2.4mm Straight Adapter, DC-50 GHz

Introduction

The 2.4mm to 2.4mm straight adapter is a high-performance RF adapter designed for seamless connectivity between two 2.4mm connectors. With a precision-engineered 50-ohm contact impedance and a straight installation orientation, this adapter ensures minimal signal loss and superior electrical performance across a broad frequency range of DC to 50 GHz. The stainless steel housing, featuring a passivated finish, provides excellent durability and corrosion resistance, making it ideal for demanding applications in test and measurement, aerospace, and telecommunications.

Featuring a low VSWR of 1.25:1, this adapter guarantees reliable signal integrity even in high-frequency environments. Its robust construction allows stable operation in extreme temperatures ranging from -50°C to 85°C, ensuring consistent performance in harsh conditions. Whether used in lab setups or field deployments, this straight adapter delivers unmatched precision and longevity.

Key features:

  • 2.4mm to 2.4mm straight adapter for seamless RF connections
  • 50-ohm impedance ensures optimal signal transmission
  • Stainless steel housing with passivated finish for durability
  • Low VSWR (1.25:1) for minimal signal reflection
  • Broad frequency range (DC-50 GHz) for versatile applications
  • Straight installation for easy and secure connections
  • Wide operating temperature (-50°C to 85°C) for extreme environments

Main Specifications:

Product No:  YC-2.4-JJS, YC-2.4-JKS, YC-2.4-KKS
Product Series: 2.4mm Adapters
Adapter Type: 2.4mm to 2.4mm
Brand: Metabee
Orientation: Straight
Connector 1 2.4mmConnector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: 2.4mm Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.25:1
Frequency Range: DC-50 GHz
Operating Temerature:  -50 ºC to +85 ºC
Other Feature: None


Applications of this 2.4mm to 2.4mm Straight Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-2.4-JJS, YC-2.4-JKS, YC-2.4-KKS

Adapter Type

2.4mm to 2.4mm

Product Name

2.4mm to 2.4mm Straight Adapter, DC-50 GHz

Brand

Metabee

Orientation

Straight

Connector 1

2.4mm Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

2.4mm Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-50 GHZ

VSWR

≤1.25:1

Operating Temerature

-50 ºC to +85 ºC

Other Features

None
