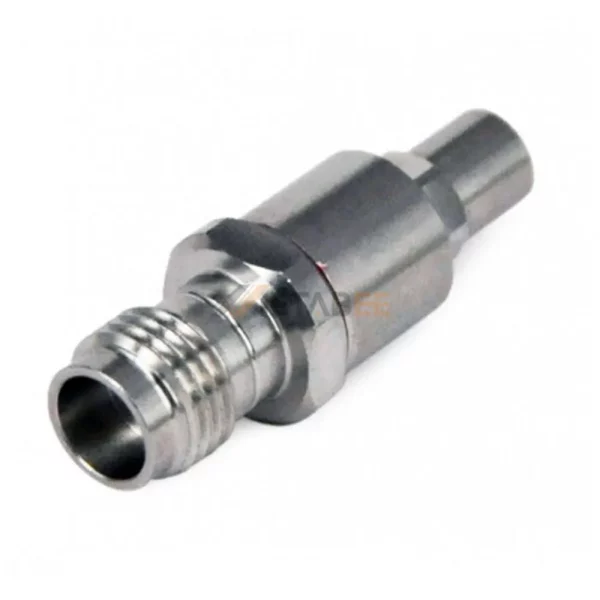

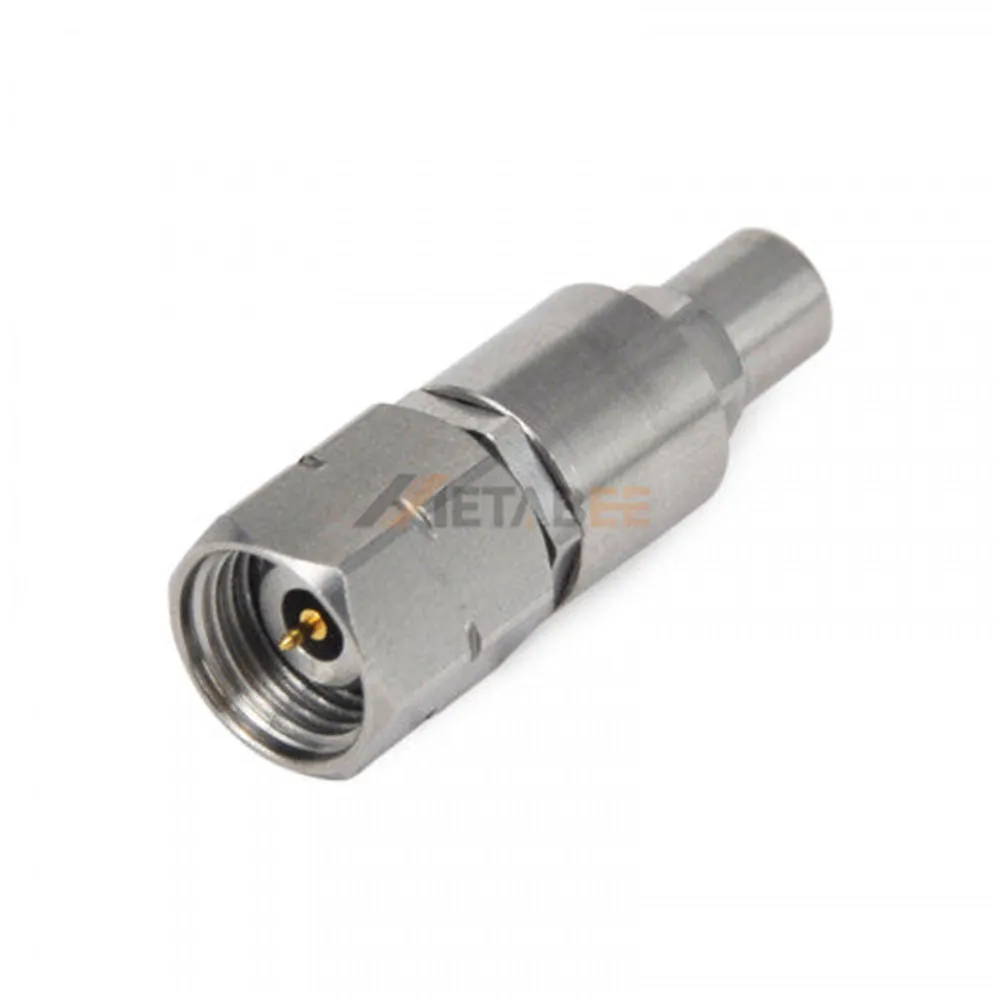

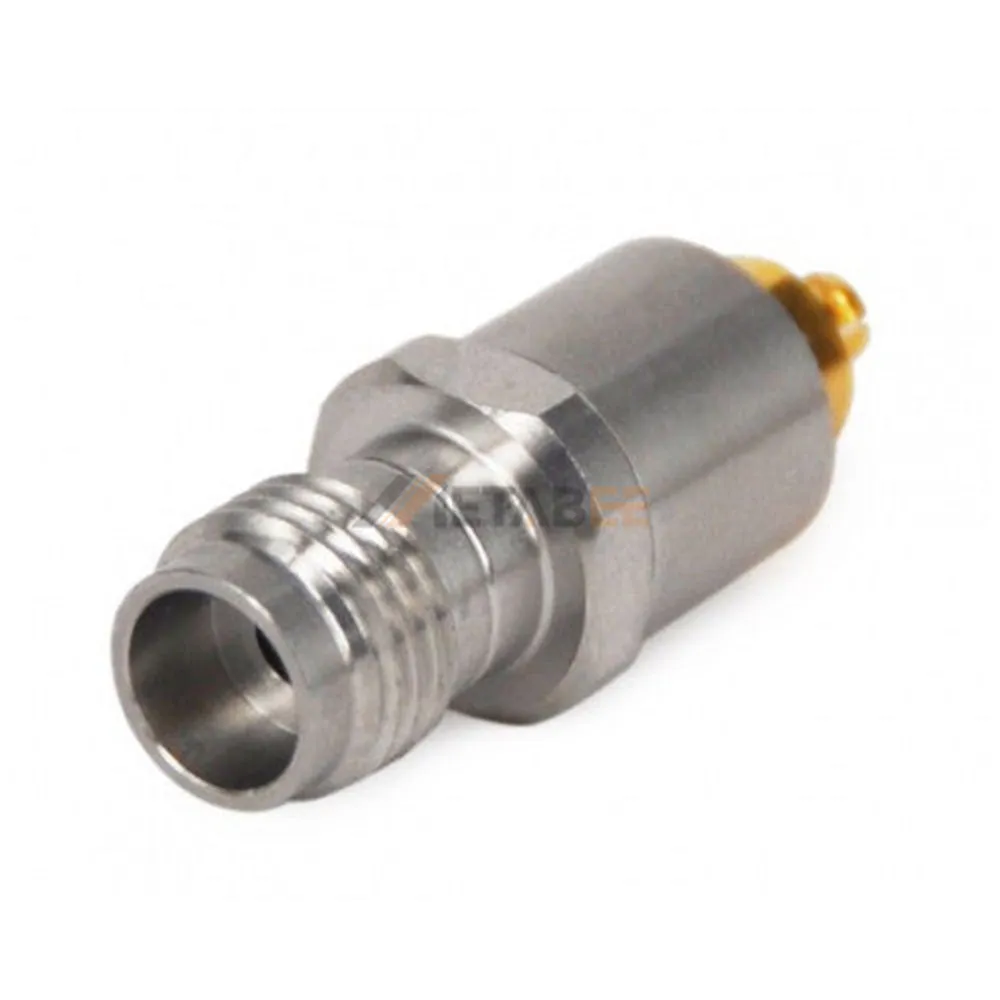

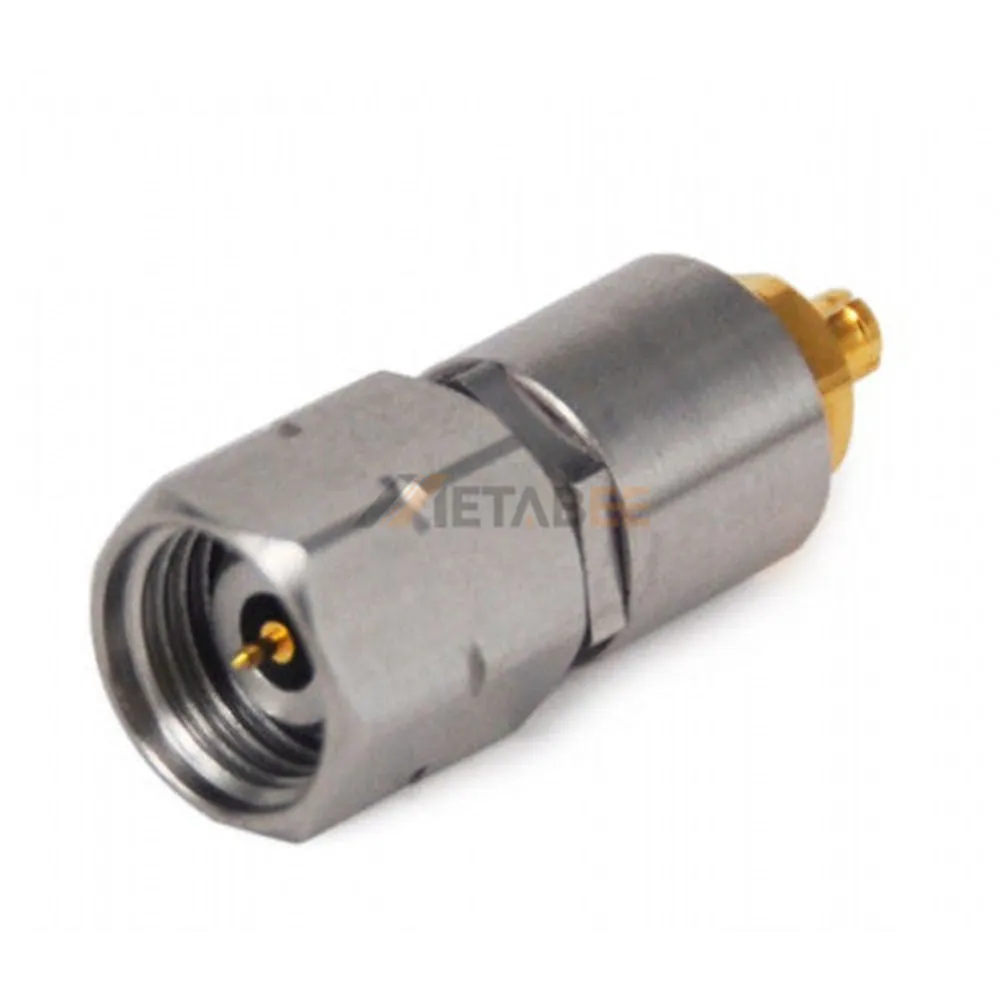

2.4mm to SMP (GPO) Adapter, DC-40 GHz

Introduction

The 2.4mm to SMP (GPO) adapter is a high-performance RF interconnect solution designed for seamless signal transmission in demanding applications. This adapter features a 50-ohm contact impedance and a straight installation orientation, ensuring reliable connectivity between 2.4mm and SMP (GPO) connectors. Constructed with stainless steel housings and a passivated finish, it offers superior durability and corrosion resistance. With an impressive VSWR of 1.25:1 and a broad frequency range of DC-40 GHz, this adapter maintains signal integrity even in high-frequency environments.

Engineered for versatility, this adapter operates efficiently across a wide temperature range of -50°C to 85°C, making it suitable for both industrial and laboratory settings. The robust stainless steel construction ensures long-term reliability, while the precision-machined contacts guarantee low insertion loss and stable performance. Whether used in test equipment, telecommunications, or aerospace systems, this adapter provides a dependable connection for high-frequency signal routing.

Key features:

  • 50-ohm contact impedance for optimal signal transfer;
  • Stainless steel housing with passivated finish for durability;
  • Straight installation for easy integration;
  • Low VSWR (1.25:1) for minimal signal reflection;
  • Wide frequency range (DC-40 GHz) for versatile applications;
  • High-temperature tolerance (-50°C to 85°C) for extreme environments;
  • Reliable 2.4mm to SMP (GPO) conversion for seamless connectivity.

Main Specifications:

Product No:  YC-2.4/GPO-JJ, YC-2.4/GPO-JK, YC-2.4/GPO-KJ, YC-2.4/GPO-KK
Product Series: 2.4mm Adapters
Adapter Type: 2.4mm to SMP
Brand: Metabee
Orientation: Straight
Connector 1 2.4mm Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: SMP Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.25:1
Frequency Range: DC-40 GHz
Operating Temerature:  -50 ºC to +85 ºC
Other Feature: None


Applications of this 2.4mm to SMP (GPO) Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-2.4/GPO-JJ, YC-2.4/GPO-JK, YC-2.4/GPO-KJ, YC-2.4/GPO-KK

Adapter Type

2.4mm to GPO(SMP)

Product Name

2.4mm to SMP (GPO) Adapter, DC-40 GHz

Brand

Metabee

Orientation

Straight

Connector 1

2.4mm Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

SMP Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-40 GHz

VSWR

≤1.25:1

Operating Temerature

-50 ºC to +85 ºC

Other Features

None
