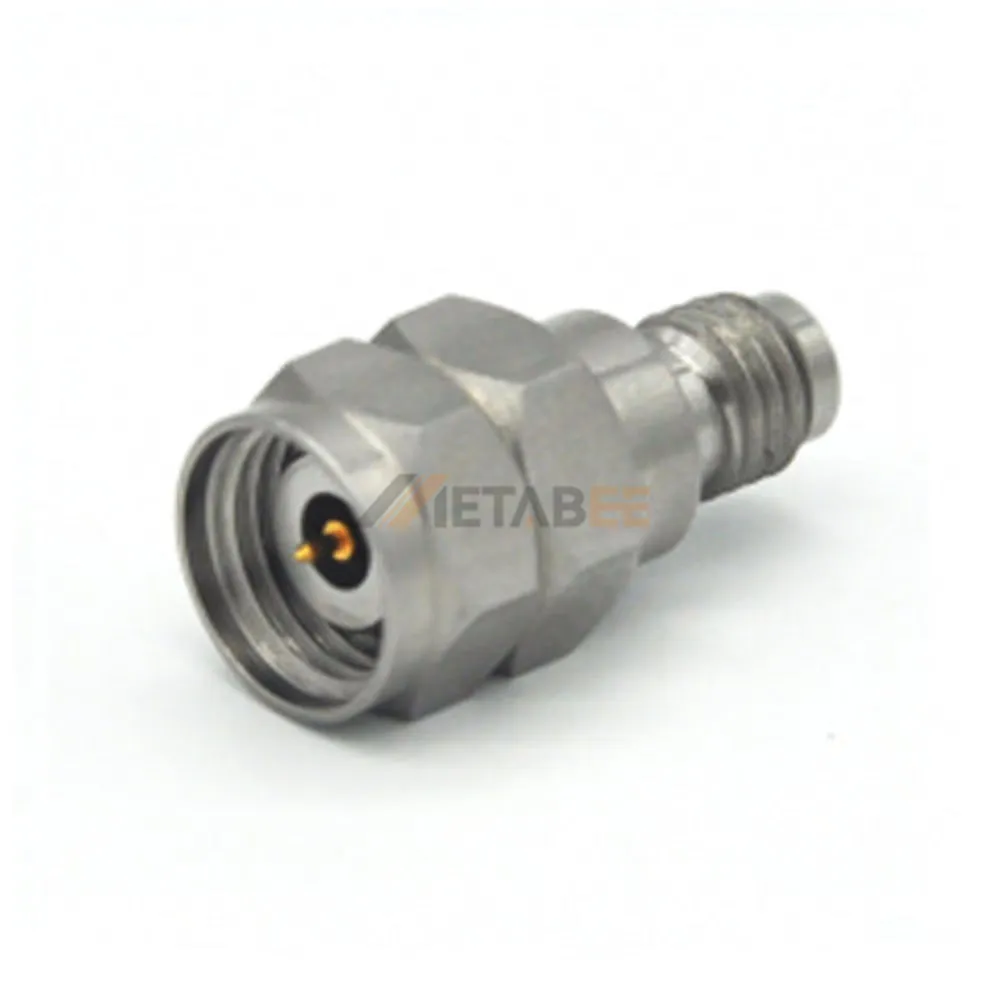

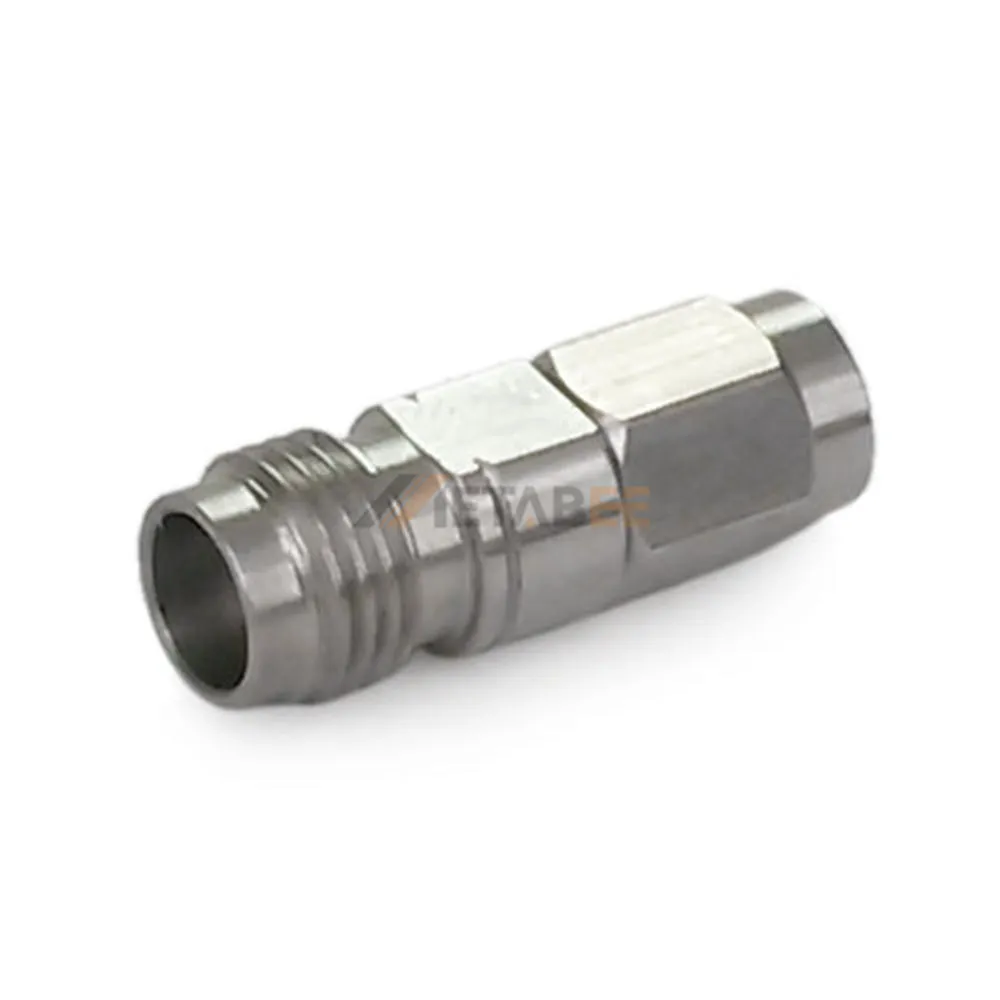

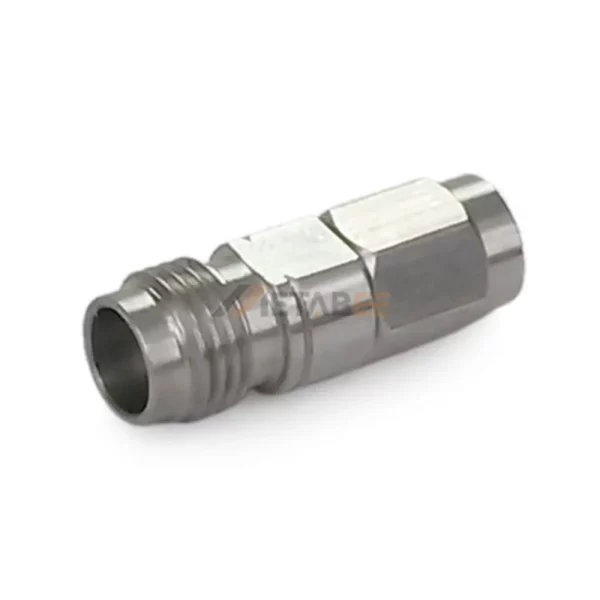

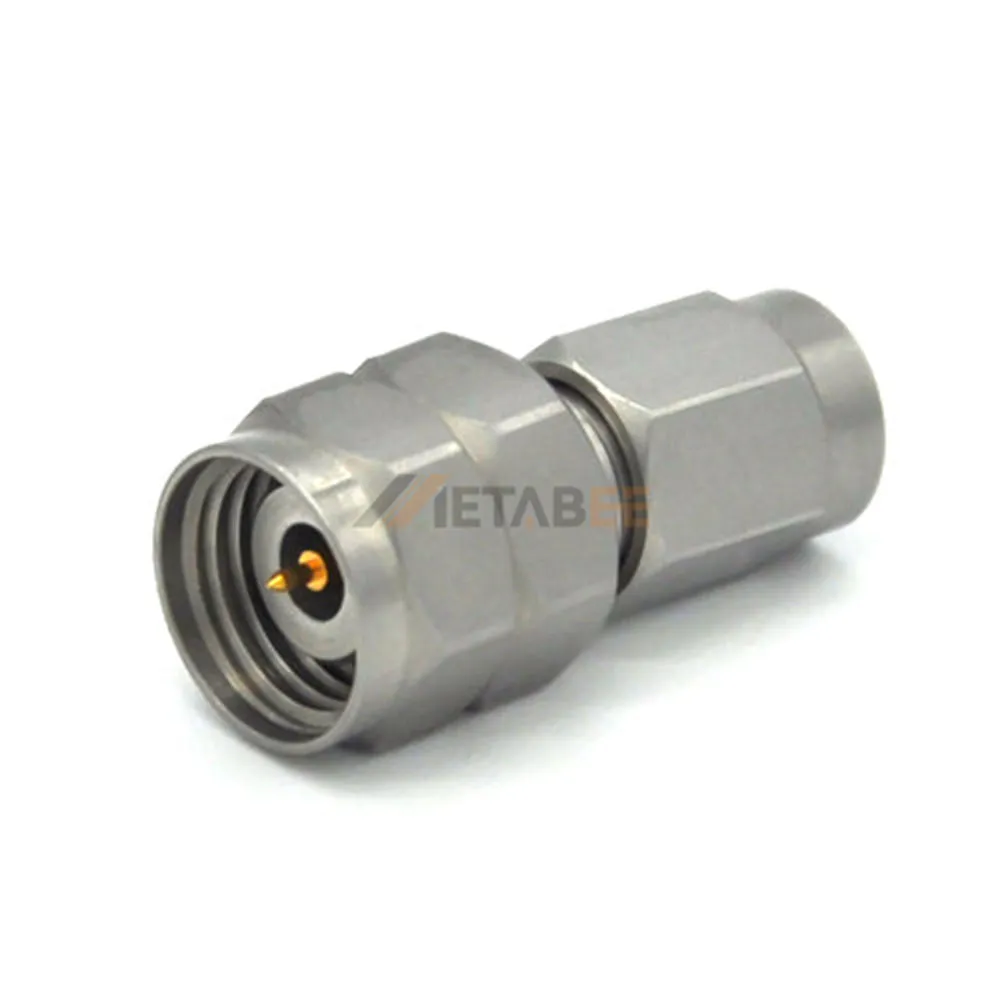

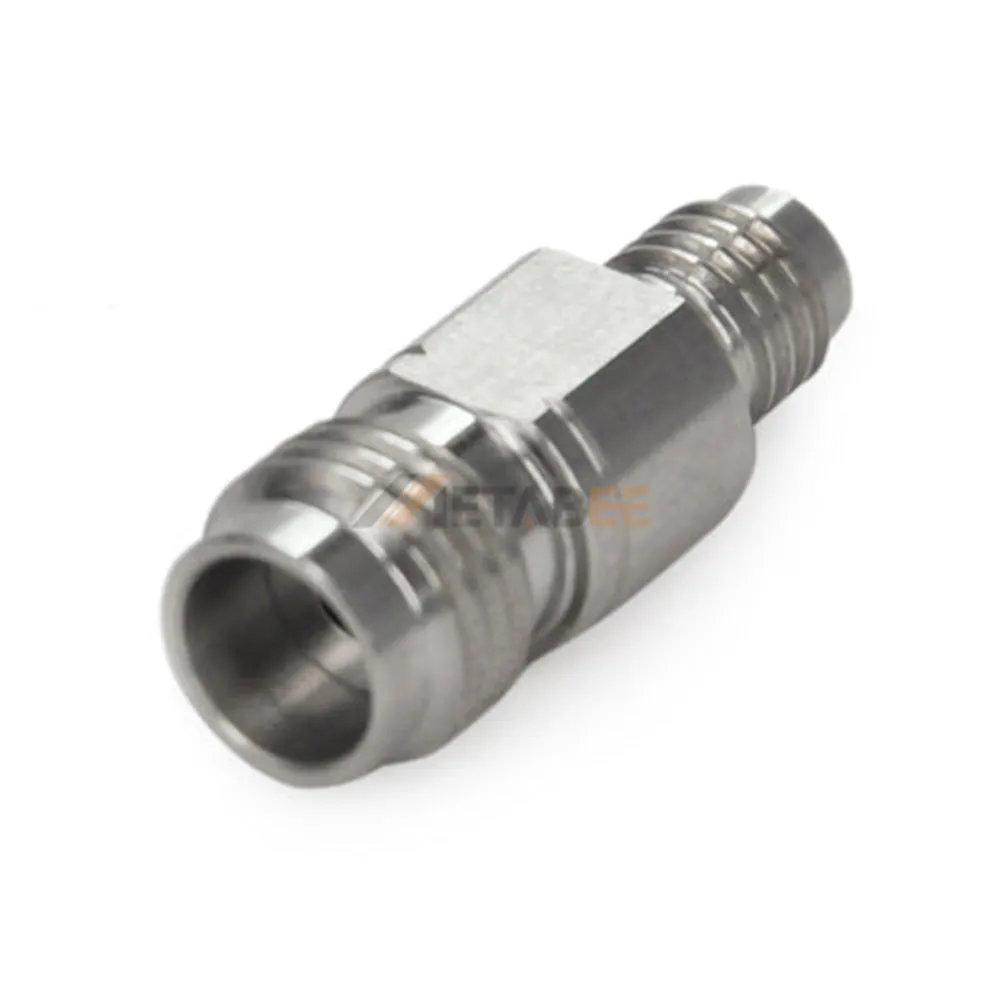

2.4mm to SSMA Straight Adapter, DC-40 GHz

Introduction

The 2.4mm to SSMA Straight adapter is a high-performance RF interconnect solution designed for seamless signal transmission in demanding applications. Featuring a 50-ohm contact impedance, this adapter ensures minimal signal loss and optimal performance across a wide frequency range of DC to 40 GHz. Its straight (inline) installation design provides a compact and reliable connection between 2.4mm and SSMA interfaces, making it ideal for test equipment, aerospace, and telecommunications systems.

Constructed with stainless steel housings and passivated plating, both connectors (2.4mm and SSMA) offer superior durability and corrosion resistance. The adapter maintains an excellent VSWR of 1.20:1, ensuring signal integrity even in high-frequency environments. With an operating temperature range of -55°C to 165°C, this adapter performs reliably in extreme conditions.

Key features:

  • 2.4mm to SSMA straight adapter for seamless connectivity.
  • 50-ohm impedance for minimal signal loss.
  • Stainless steel housing with passivated plating for durability.
  • Low VSWR (1.20:1) for superior signal integrity.
  • Wide frequency range (DC-40 GHz) for versatile applications.
  • Straight (inline) design for easy installation.
  • Extended operating temperature (-55°C to 165°C) for harsh environments.

Main Specifications:

Product No:  YC-2.4/SSMA-JJS, YC-2.4/SSMA-JKS, YC-2.4/SSMA-KJS, YC-2.4/SSMA-KKS
Product Series: 2.4mm Adapters
Adapter Type: 2.4mm to SSMA
Brand: Metabee
Orientation: Straight
Connector 1 2.4mm Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: SSMA Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.2:1
Frequency Range: DC-40 GHz
Operating Temerature:  -55 ºC to +165 ºC
Other Feature: None


Applications of this 2.4mm to SSMA Straight Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-2.4/SSMA-JJS, YC-2.4/SSMA-JKS, YC-2.4/SSMA-KJS, YC-2.4/SSMA-KKS

Adapter Type

2.4mm to SSMA

Product Name

2.4mm to SSMA Straight Adapter, DC-40 GHz

Brand

Metabee

Orientation

Straight

Connector 1

2.4mm Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

SSMA Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-40 GHz

VSWR

≤ 1.20:1

Operating Temerature

-55 ºC to +165 ºC

Other Features

None
