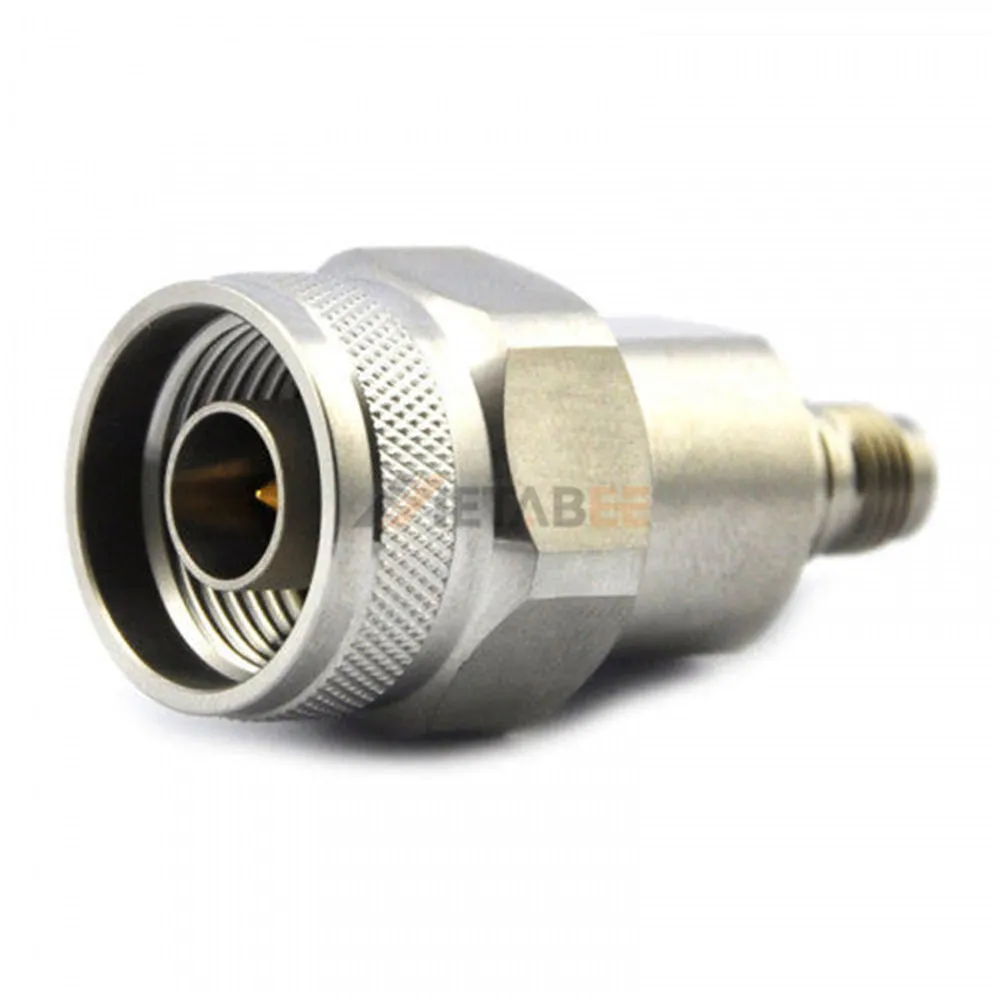

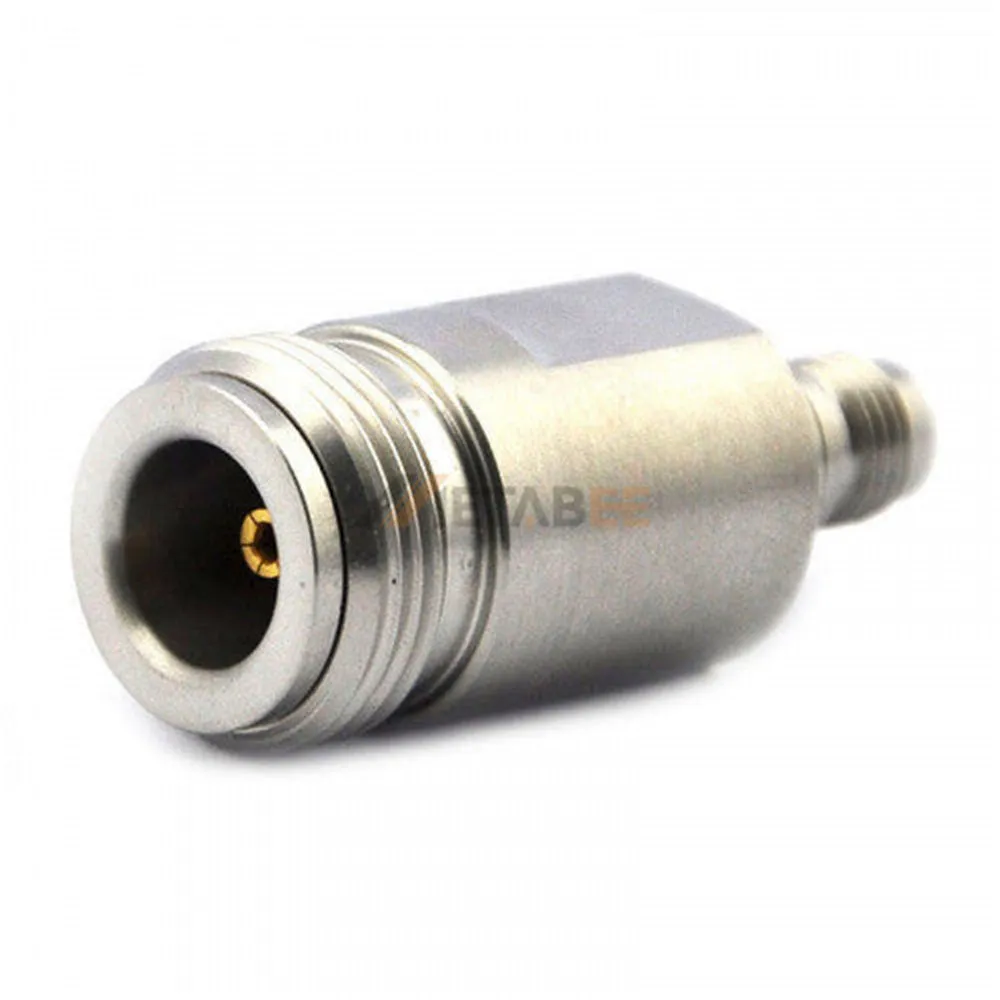

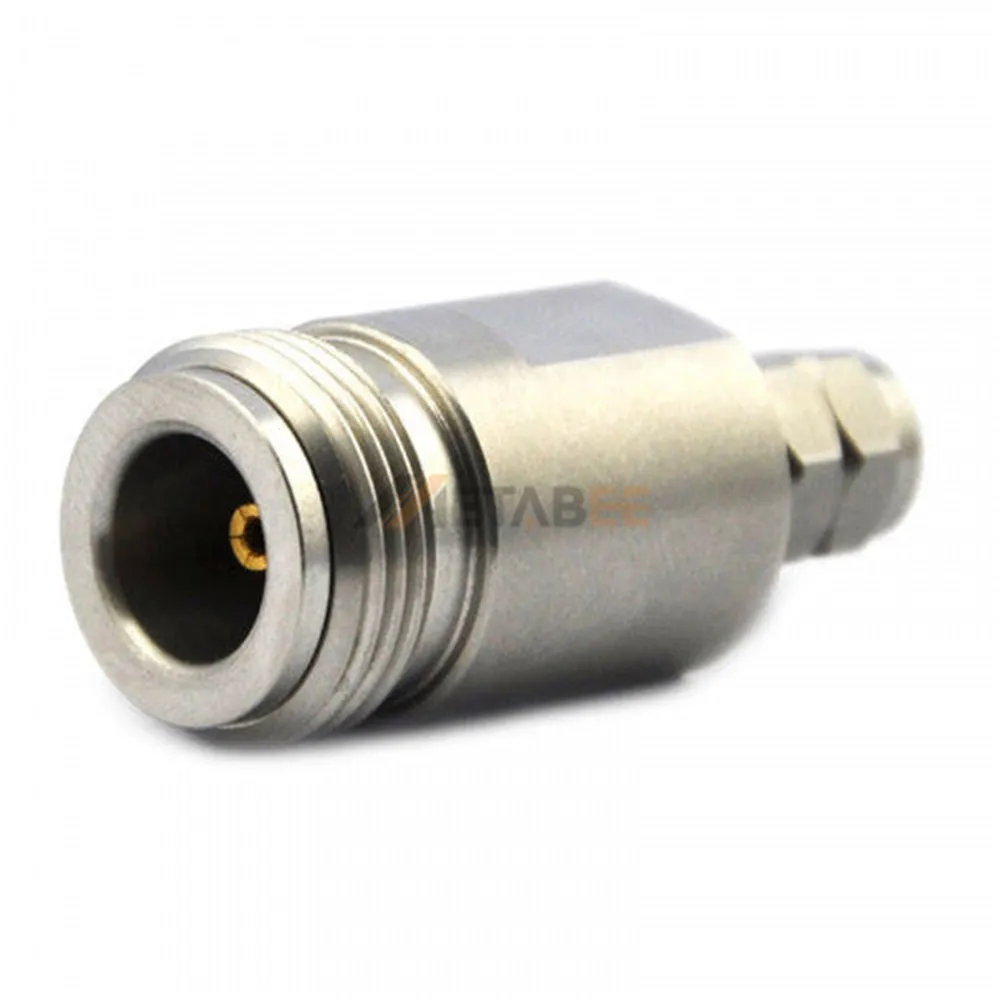

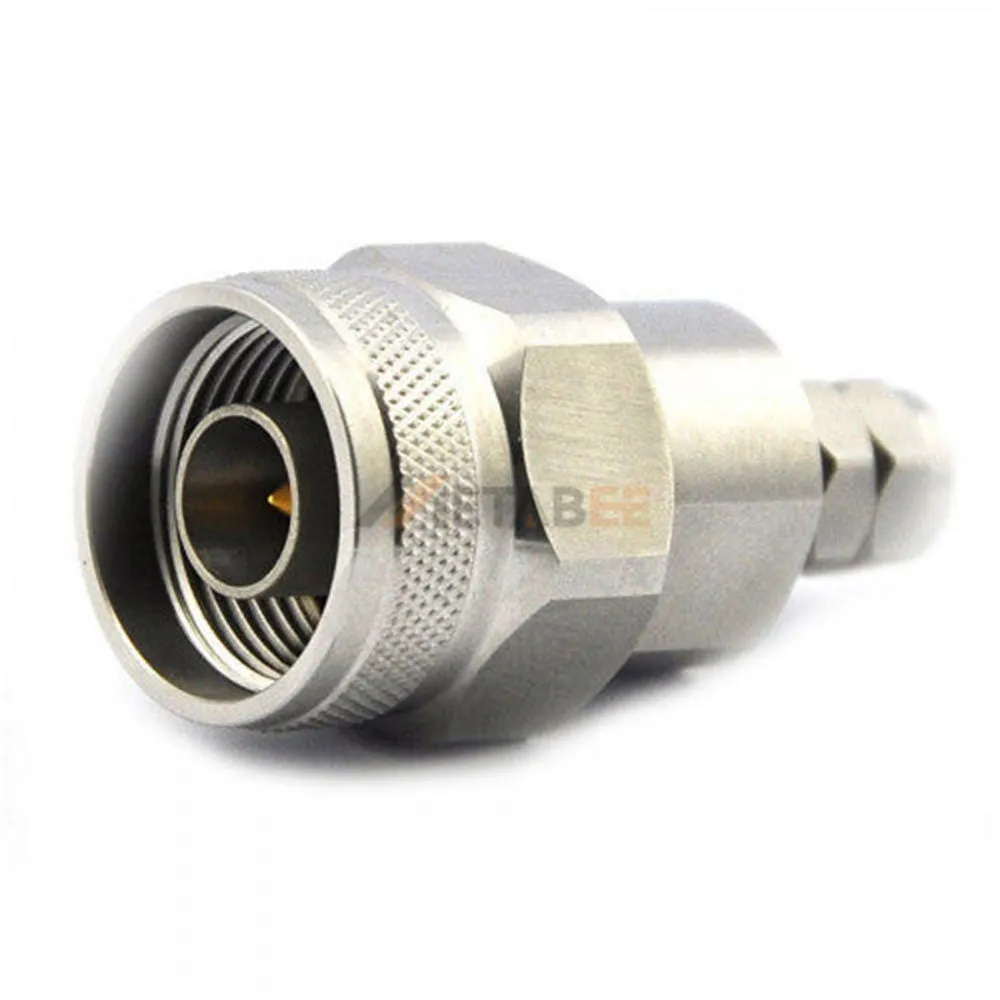

N-type to 2.4mm Adapter, DC-18 GHz

Introduction

This high-performance N-type to 2.4mm adapter ensures reliable signal transmission across a broad frequency range of DC-18 GHz, making it ideal for RF and microwave applications. Featuring a 50-ohm impedance and a low VSWR of 1.15:1, it minimizes signal loss and reflections for superior connectivity. The straight installation design provides easy integration into various setups, while the stainless steel housing with passivated plating ensures durability and corrosion resistance in harsh environments.

Both connectors—N-type and 2.4mm connector—are constructed with precision to maintain consistent performance across an operating temperature range of -50°C to 85°C. Whether used in telecommunications, aerospace, or test equipment, this adapter guarantees stable and efficient signal transfer.

Key features:

  • Frequency Range: DC-18 GHz;
  • Impedance: 50 Ohms ;
  • VSWR: 1.15:1 (max);
  • Connectors: N-type to 2.4mm;
  •  Housing Material: Stainless Steel (Passivated);
  • Installation: Straight;
  •  Operating Temp: -50°C to 85°C.

Main Specifications:

Product No:  YC-N/2.4-JJS, YC-N/2.4-JKS, YC-N/2.4-KJS, YC-N/2.4-KKS
Product Series: 2.4mm Adapters
Adapter Type: N-type to 2.4mm
Brand: Metabee
Orientation: Straight
Connector 1 N-type Connector
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Passivated
Connector 2: 2.4mm Connector
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Material: Passivated
Mount Method: Not Applicable
Impedance: 50 Ohm
VSWR:  1.15:1
Frequency Range: DC-18 GHz
Operating Temerature:  -50 ºC to +85 ºC
Other Feature: None


Applications of this N-type to 2.4mm Adapter:

2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.

Here are some applications:

  • Radar Systems;
  • Test and Measurement Equipment;
  • Satellite Communications;
  • Microwave Communications;
  • Aerospace and Defense.

We can customize this RF Adapter according to your special requirements. Get a free quotation now!

RF Adapters
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF Adapters.
Product Series

2.4mm Adapter

Product No.

YC-N/2.4-JJS, YC-N/2.4-JKS, YC-N/2.4-KJS, YC-N/2.4-KKS

Adapter Type

N-type to 2.4mm

Product Name

N-type to 2.4mm Adapter, DC-18 GHz

Brand

Metabee

Orientation

Straight

Connector 1

N-Type Connector

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Passivation

Connector 2

2.4mm Connector

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Passivation

Mount Method

Not Applicable

Impendence

50 Ohm

Frequency Range

DC-18 Ghz

VSWR

≤ 1.15:1

Operating Temerature

-50 ºC to +85 ºC

Other Features

None
